Video Input:8 Channel
Resolution:2MP
TV System:NTSC,PAL
PCS of Camera:2PCS,3pcs,4PCS,6Pcs,8pcs
Cable Length:None
Model Number:WN1908F-QNXK2004
Origin:Mainland China
Certification:CE
Smart home platform:NONE
NVR:8CH NVR
Audio:Two Audio Way
WIFI Camera:Video Surveillance Wifi
Type:Wireless CCTV System
Waterproof Camera:IP66 Waterproof IP Camera,IP66 Waterproof IP Camera
HDD Interface:2.5"SSD, Support 500GB up to 4TB
Video Compression:H.265
Frequency:2.4Ghz
Wireless format:802.11b/g/n
Feature:AI Humanoid Detection
Wireless CCTV Kit:CCTV Camera Security System
Video Surveillance System:Security Camera System
Note:
If you purchase the Security Video Recorder with HDD, we will install the HDD in the video recorder before leaving the factory to avoid crushing during transportation!
Feature
1. The camera supports 2MP ultra-clear resolution;
2. The kit supports human form detection(not support face detection)
3. Support h.265ai / h.265 + (compatible with h.265 / H.264) video compression technology;
4.Support onvif protocol and access to third-party backend / platform;
5. The camera has 4pcs Array Leds+4PCS white Leds and supports three modes (Day Vision, Night Vision, Full Color Night Vision), when movement is deteced, turn on full color mode.
6. The built-in Speakers and microphones of the camera,Two way audio function;
7. Mini NVR support Wifi / Wired IP Camera, built-in Micro SD card slot,Support SSD port, maximum support 128GB Micro SD card and 8TB 2.5“HDD (optional at the time of purchase)
8. The latest WIFI cascading technology perfectly solves the problem of WIFI signal weakening and instability after long distances and through walls;
9. Plug and play, just connect the camera and the NVR to the power supply, and connect the NVR to the router to use, which is very convenient;
10. The kit supports 7x24 hours loop recording, motion detection recording, and other recording modes, you can playback the recording to view;
11. Support web side, CMS, central management platform software XMEYE;
12.Supprt Cloud technology,Realize network penetration, front and rear end docking, and push alarm information to mobile phones

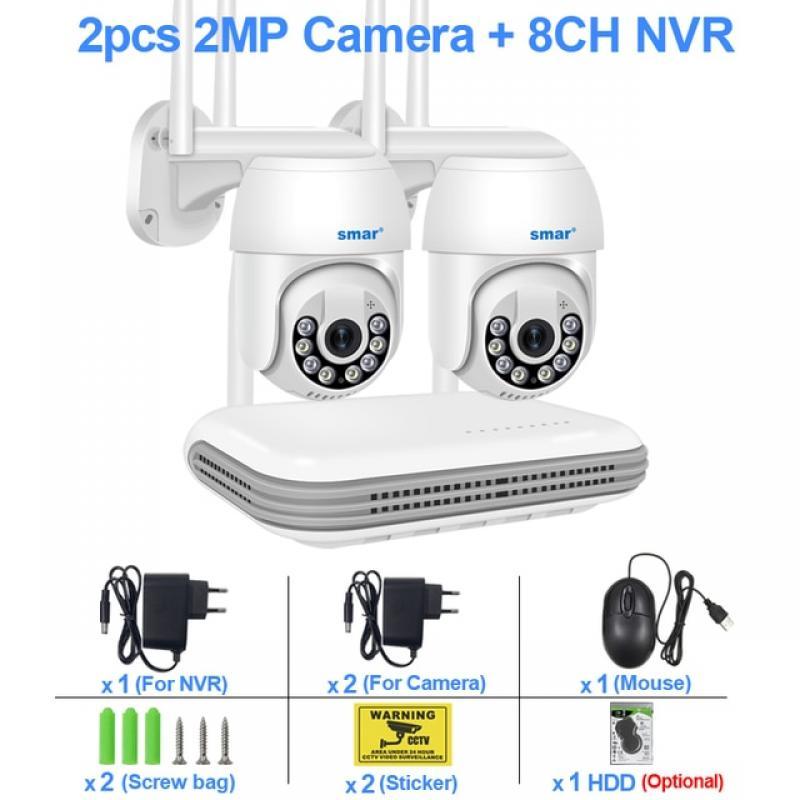

Packing List
1*8CH Wifi NVR
2/3/4/6/8* 2MP WiFi PTZ Camera(According to your transaction option)
1* Power adapter for NVR
2/3/4/6/8 *Power adapter for Camera(According to your transaction option)
1*USB Mouse
2/3/4/6/8* Mounting Screws Bag (According to your transaction option)
1/2/2/3/4*Sticker (According to your transaction option)
1*1M Network Cable(Gift)
Support 2MP HD Display
Show Higher-Quality Images, With Better Experience.
Turn on Intelligent Alarm (Area alarm, Human Detection, Cross line Detection, etc.) and various voice prompts on site (English)
AI Humanoid Motion Detection & Email Alert/Record
You can createmultiple motion detection settings for camera, including Human Body Detection,Line Crossing Detection, Intrusion Detection and Specific Region Detection;
When motion is detected, the NVR can send email or start record to the hard disk without missing any important events.
(Your camera must support XM human detection, or will not work)
Latest cascade Technology
What is cascading technology?
The Usually, our camera is a transmitter; The purpose of the cascade technology is that it can turn each WiFi camera into a transmitter and a receiver. It can receive WiFi NVR signals and then transmit the signals to nearby WiFi cameras;
The cascading technology module is built into the body of each WiFi camera. It adopts the latest cascading technology, supports automatic cascading and manual cascading, and greatly improves the coverage and stability of wireless signals;
How far is the WiFi camera from the WiFi NVR to work properly?
This distance needs to be determined according to the on-site environment. We installed WiFi camera about 30 meters away from the WiFi NVR. There are five walls between them. After several hours of on-site testing, their work has been very stable! If your environment is very open, WiFi camera and the distance of WiFi NVR can reach within 100m; (field test required)
Smart IR-Cut Full Color Night Vision
When movement is deteced, turn on full color mode.
There are three modes for you to select. (Day Vision, Night Vision, Full Color Night Vision)
Real Two Way Audio
Built-in microphone and speaker / Customized new speakers with loud volume .
You could talk to anyone nears the camera ( Warn someone to leave your house )
IP66 Waterproof / Dustproof
The camera case is made of high-quality ABS plastic , wwhich is Water-proof, Sun-proof, Snow-proof and Lightning-proof, It can work in the temperature range of -20℃-+65℃,Resistance to severe cold.
PTZ Remote Control Anywhere
Rotates 300° Horizontally and 90° Vertically .
You can control it in the ICSEE app directly whenever you want and wherever you are
Support ONVIF
Support onvif protocol, can be connected to a third-party NVR centralized management camera. All our NVRs for IP cameras could work with this Camera .
Multi Languages of NVR:
upport English,Russian,Italian,Portuguese,Spanish,French,Germany.,etc...Total 28 languages
ChannelType of NVR:
Support 4CH 5MP/ 8CH 3MP Wifi Model,Playback 4CH 5MP/ 8CH 3MP
The NVR Support TF Card and HDD
Max support 128G TF Card, and support 4TB 2.5"SATA HDD
Support 2.5"SSD Interface
How to choose a hard drive ?
Hard disk is necessary for video recording ,thanks to the H.265 High Efficiency Video Coding Technology ,the 1TB Hard disk enables to continuous record about 30 days video footage for 4 cameras
500G can record about 15 days for 4 cameras
Advanced H.265++ Video Compression
H.265 (HEVC) doubles the coding efficiency compared with its predecessor H.264. That means H.265++ video saves around 70% of the bit rate at the same quality of coding.
Easy access via multi-platform
Support Mobile Phone iOS, Android System,Remote view of mobile phones, any time... any where...
Remote access via Mobile Phone
P2P technology supports remote access on the mobile device,Just intall the APP on your phone by scanning the QR cade or storing from the APP View the camera remotely anytime, any where......
True Plug and Play,Easy Installation
Q
: How does the WiFi Camera and WiFi NVR in the Wireless Camera Kit work?
A:
Our WiFi Camera has been maatched before leaving the factory. When you supply power to WiFi Camera and Wifi NVR, WiFi NVR will automatically connect to WiFi Camera; Then you can watch the image, Which is really Plug and Play, and the operation is very simple;
Q
: How does the WiFi NVR connect to the WiFi Router?
A:
Connect Wifi NVR to Wifi Router through Network Cable( Note: Unable to connect Wirelessly)
Please refer to the system connection diagram below;
NVR Size and Multi angle display:
Camera Features:
Image Sensor: HD Color CMOS.
Image Resolution: 1920x1080P
Lens: 3.6MM HD Mega Pixels Lens.
Rotates 300° Horizontally and 90° Vertically .
IR Night Vision: It has 4pcs Array IR Leds+4pcs White Leds and supports three modes (Day Vision, Night Vision, Full Color Night Vision,IR distance:10-20M), when movement is deteced, turn on full color mode..
Weatherproof: Yes(IP66).
The built-in Speakers and microphones of the camera,Two way audio function;
Minimum Illumination: Colour 0.1 Lux, B/W 0.01Lux
2/3/4/6/8 x Colorful CMOS 2.0MP IR LEDs IP Cameras for option.
Camera Size and Multi angle display:
How to manage the cameras through PC client?
1. Please used your mobile phone to scan the QR code as below, and then click to download;
2. Please install VMS software on your computer, then login VMS Software, Username: admin, Password:admin
3. Please click the Device Manager-IPV4 Search-choose address of IP Camera- ADD-SAVE,Search and Camera successfully;
4. Click t he Live View, then click IP Address of Default Group, then you will can Watching Video.
FAQ:
Q
:How does the WiFi camera and WiFi NVR in the Wireless Camera Kit work?
A:
Our WiFi camera has been matched before leaving the factory. When you supply power to WiFi camera and WiFi NVR, WiFi NVR will automatically connect to WiFi camera; Then you can watch the image, which is really plug and play, and the operation is very simple;
Q:
How does the WiFi NVR connect to the WiFi Router?
A:
Connect WiFi NVR to WiFi Router through Network Cablee (Note: Unable to connect wirelessly)
Q:
How far is the WiFi camera from the WiFi NVR to work properly?
A:
This distance needs to be determined according to the on-site environment. We installed WiFi camera about 30 meters away from the WiFi NVR. There are five walls between them. After several hours of on-site testing, their work has been very stable! If your environment is very open, WiFi camera and
the distance of WiFi NVR can reach within 100m; (field test required)
Q:
What is cascading technology?
A:Usually, our camera is a transmitter; The purpose of the cascade technology is that it can turn each WiFi camera into a transmitter and a receiver. It can receive WiFi NVR signals and then transmit the signals to nearby WiFi cameras;
The cascading technology module is built into the body of each WiFi camera. It adopts the latest cascading technology, supports automatic cascading and manual cascading, and greatly improves the coverage and stability of wireless signals;
