Power Supply:Dry Battery
Special Features:Support Gateway
Doorknob Funcition:Biometric,Key & Keypad
Ways To Unlock:APP,bluetooth,Mechanical Keys,Card,WIFI,Password,FINGERPRINT
Material:Zinc alloy
Handle Direction:Direction Reversible
Model Number:FM08
Origin:Mainland China
Certification:CE
Operating Voltage:6V
Power supply:4 Pcs Batteries
Emergency Power Supply:MICRO-USB
Operating temperature:-20°C~40°C
Working humidity:20%~90%RH
Resolution:508DPI
2022 NEW RAYKUBE FM08 Auto Smart Door Lock Tuya WiFi/ TT Lock Biometric Fingerprint Lock with Fingerprint/Password/RFID Card/Key/APP unlock For Smart Home
Overview-FM08
FM08 is a auto smart fingerprint door lock, equipping with electronic lock body as standard, realizing one-touch automatic opening, automatic door closing which is convenient and fast.
There are 3 versions of FM08 : TT Lock Version / Tuya WiFi Version / Standard Version. According to your needs, choose a smart lock suitable for your home
Noted: The Tuya WiFi version supports voice system in 8 languages, but the TT Lock version does not.
Tuya WiFi Version： 8 language voices (Arabic / English / Indonesian / Portuguese / Russian / Spanish / Thai / Vinetnamese) to switch freely, easy to set up
Differences Between The Three Versions
Note:
AlI versions support (fingerprint + password + IC card + key + Wristband+WeChat applet) unlocking.
Standard version and TT Lock version do not need to be connected to the Internet;
Tuya WIFI version needs to be connected to a WIFI network to unlock directly remotely.
Features
6 unlock methods: APP(Options: Tuya / TT Lock Version，except standard version) / Fingerprint / Password / Smart Card / Key / RAYKUBE Wristband Unlock
APP Remote Control（Options: Tuya / TT Lock Version，except standard version), No need the Gateway
Tuya WiFi Version： 8 language voices (Arabic / English / Indonesian / Portuguese / Russian / Spanish / Thai / Vinetnamese) to switch freely, easy to set up.
Support anti-peeping password setting
Mechanical keys and emergency power supply (MICRO USB) can be used when the door lock is out of power.
Universal for left and right doors, suitable for 35-65mm door thickness.
7 Sizes of 5050 Electronic Mortise Lock available: 22*147/ 22*180/ 22*190/ 22*195/ 22*200/ 22*240/ 25*225
More
6 Unlock Methods
APP(Options: Tuya / TT Lock Version，except standard version) / Fingerprint / Password / Smart Card / Key / RAYKUBE Wristband Unlock
Biometric Fingerprint Unlock
False Recognition Rate:0.001 %
Fast Verification: 0.5s
Smart IC card Unlock
The elderly, children, and people with handicapped fingerprints
can quickly unlock without worry
APP Remote Control（Options: Tuya / TT Lock Version，except standard version), No Gateway Required
About TT Lock APP
The lock connect with the phone by Bluetooth.
You can open the lock / manage the lock (add user / delete user / set password and so on)
If add a gateway that can connect to Wifi (Gateway buy extra)
It is helpfull for Hotel Management
For iOS and Android phone, If add a gateway G2 can connect to wifi, and work with Alexa and Google Assistant
(Noted: Only USA/Canada/UK/Australia/France/ltaly/Brazil/India can support the Alexa and only the English country support the Google Assistant.)
About Tuya APP
1.Connect to the wifi direct, not need any gateway;
2.Unlock remotely by phone APP;
3.Get the unlock record when someone open the lock;
4.Make the temporary password / timed password in APP
Support Anti-peeping Password Setting
The password lock supports the anti-peeping password. You can enter any number before and after the correct password. Prevent others from peeping at the unlock code.
Emergency Power Supply
Mechanical keys and emergency power supply (MICRO USB) can be used when the door lock is out of power

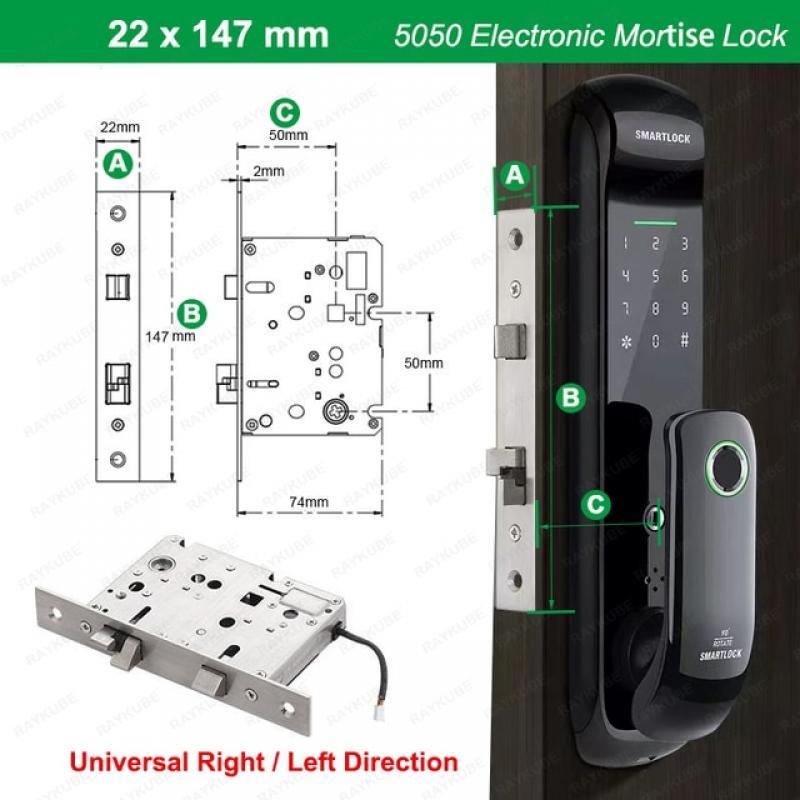

7 Sizes of 5050 Electronic Mortise Lock available
22*147/ 22*180/ 22*190/ 22*195/ 22*200/ 22*240/ 25*225
Equipping with electronic lock body as standard, realizing one-touch automatic opening, automatic door closing which is convenient and fast.
Open the door: After the unlocking is successful, the lock tongue is automatically retracted
Closing the door: AlI latches automatically pop out within 0.5 seconds
Product Parameter
Unlocking method: APP(Options: Tuya / TT Lock Version，except standard version) / Fingerprint / Password / Smart Card / Key / RAYKUBE Wristband Unlock
Fingerprint capacity:120 pieces
Password capacity:100 pieces
IC Card capacity:100 pieces
Alarm type: low battery alarm
Emergency power supply: MICRO USB
Door opening direction: Universal left and right
Applicable door thickness: 35-65mm (more than 50mm, please contact us)
Power supply:4 x AA batteries (not included)
Working temperature: -20 to +50°C
Working humidity: 40% to 85% (No condensation)
Packing size: 335 x200x100mm
Package List
Front Panel x1
Back Panel x1
Mortise Lock x1
IC Card x5
Mechanical Key x2
RAYKUBE Wristband x2
(Gifts)
Screw Kit x 1
Type-C Charging Cable x1
