Plug Type:AU Plug,EU plug ,US plug,UK plug
Size:220mmx135mmx22mm
Doorbell:Yes
Material:Acrylic
Power:12V/1A
Sensor Size(Inch):1/4
Resolution:1024x600
Camera:3.7MM
Model Number:413
IP Camera Interface:No
Access Control:None
Waterproof:Yes
Samrt Home Interface:No
Technology:DIGITAL
Installation:Wall Mounting
Connection Type:WIRED
Zone Input:None
Display Screen Type:color
Type:Intercom System
Viewing Angle (°):160
Kit Configuration:One to One video doorphone
Display Size:7
Answering Mode:Hands-free
Camera Sensor type:CMOS
Connection Method:WIRED
Origin:Mainland China
Smart home platform:Tuya
Certification:CE
SD Card Support:4GB-64GB
Power Source:outdoor doorbell powered by indoor monitor
Support:CCTV Security Camera / Electronic Lock
Motion detection recording:support
night vision:low light / LED night vision
monitor materials:acrylic
doorbell materials:alloy
APP:Tuya Smart App / Smart Life App
Screen:7 inch Touch Screen LCD
monitor connect to network:wifi
monitor connect to doorbell:cables
How to connect with TUYA Smart APP / Smart Life APP by AP mode
1. monitor choose AP mode , system resart
2. TUYA APP choose Smart Doorbell --- AP Mode
3. enter your home wifi and password
4. connect device hotspot smartlife-xxxxx , password is 12345678
How to connect with TUYA Smart APP / Smart Life APP by EZ mode
7 Inch Touch Screen WIFI Video Intercom System, with shortcut keys , maximum open 3 locks
1. 7 inch full touch screen monitor , supports 2 doorbells + 2 cameras , maximum supports 64GB memory card
2. Real-time control by smart phone , unlock , 2 way talk , snapshot , recording
3. supports TUYA Smart APP / Smart Life APP, does not support Alexa / Google Home
4. monitor system supports English / русский / français / Español / Deutsch / Chinese
5. monitor has 4 shortcut keys: monitoring / talk / unlock / hang up
6. supports 3 level sensitivity motion detection, videos record to memory card
7. motion recording time 10s -300s
8. supports messages push to smart phone (visitor pressing call button ) , triggered motion detection would not push message to phone
9. monitor supports connect electric lock separately, if connecting with 2 doorbells , it supports open 3 locks separately
10. maximum supports 6 monitors connected (1 master monitor + 5 slave monitors)
11. system has 10 ringtones , support custom ringtones (copy ringtones to Ring folder )
12. monitor connect to doorbell by 4 Pin cables , monitor connect to network by WIFI
13. Screen would turn off if do not operate the monitor for 1 moniute
TUYA Smart APP / Smart Life APP Real Time Control
1. Monitor supports volume,brightness,contrast, saturation adjustment
3. Monitor / APP support snapshot / recording / talking / open 3 locks separately
4. Monitor / APP support monitoring 2 doorbells + 2 cameras
5. Monitor supports zoom in / out image
7 Inch Full Touch Screen + 4 Shortcut Keys
4 shortcut keys : Talk , Unlock , Monitoring , Hangup
Message Push to Smart Phone when Pressing Call Button
triggered motion detection would not push message phone
Monitor Support Call records / Message records / Motion Detection records playback
This System supports 6 Monitors Connected
monitor 1 is master monitor (Device ID select 1)
other monitors are slave monitor (Device ID select
2-6 )
1 Monitor supports 2 doorbells + 2 cameras
How to connect with electric lock / outdoor camera / doorbell
if you need extra electric lock / outdoor camera ,welcome to contact us
Monitor supports connect electric lock separately
150° Wide Angle 1080P Alloy Doorbell Low-Light Full Color Night Vision
Camera sensor: 1/2.7 CMOS , AHD 1080P, 2mp
Camera angle: 150° ( Horizontal Angle)
Night vision :LED night vision, Low-light night vision
Features : Rainproof,Dustproof,and Anti-vandal
Power Supply: Supplied from indoor monitor
operating temperature : -40℃ to +50℃
Materials: aluminum alloy
General 3A Power Supply Controller with NO NC signal LED
Input Voltage: AC 110-240V
Input Frequecy: 50-60 Hz
Output Voltage: DC 12V
Output Cureent: 3A
1. it support reduce the load of access controller, save wiring to reduc the hidden trouble
2. Set NC / NO outputs, can control various types of electric locks
3. Based delay control circuit, lock time can be in 0-15 seconds
4. Automatic protection function, unexpected situations such as
5. when the power supply short-circuit occurs, the power may be
temporarily disconnected or the fuse auto insurance line off
6.Operative device: E/M Lock, Access Controller, Exit Push Button

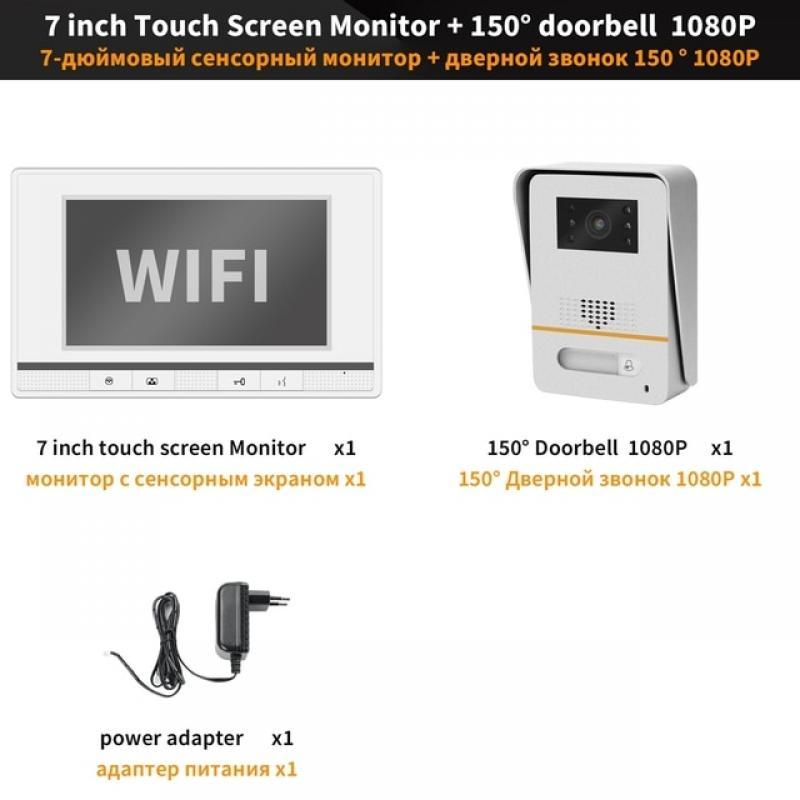

Accessories in Package
if you need extended cbales
please click this picture to order
