Plug Type:EU plug ,US plug,UK plug
Supporting Hard Drive Capacity:5 X 18TB
External Interface:USB
Package:Yes
Internal Interface:SATA
Case Material:Aluminum
Size:2.5",3.5"
Model Number:FS5C3
Origin:Mainland China
RAID Mode:7Raid
Interface:USB3.1 Type-C
Transfer Rate:10 Gbps
Max. number of HDDs/SSDs:5 X 2.5"/3.5"SATA HDD/SSD
Support Capacity:80TB Single16TB
Fan:80mm Slient Fan
Installation:Lightly Press Left,Removable Metal Trays, Screws Fixed the HDD/SSD
Power Supply:Build-in 150W
Support System:Windows / Mac /Linux
hard drive case:external hard drive case 2 5,external hd case
sata case:pk orico hd case
hdd case:2.5 inch usb3 hard drive case

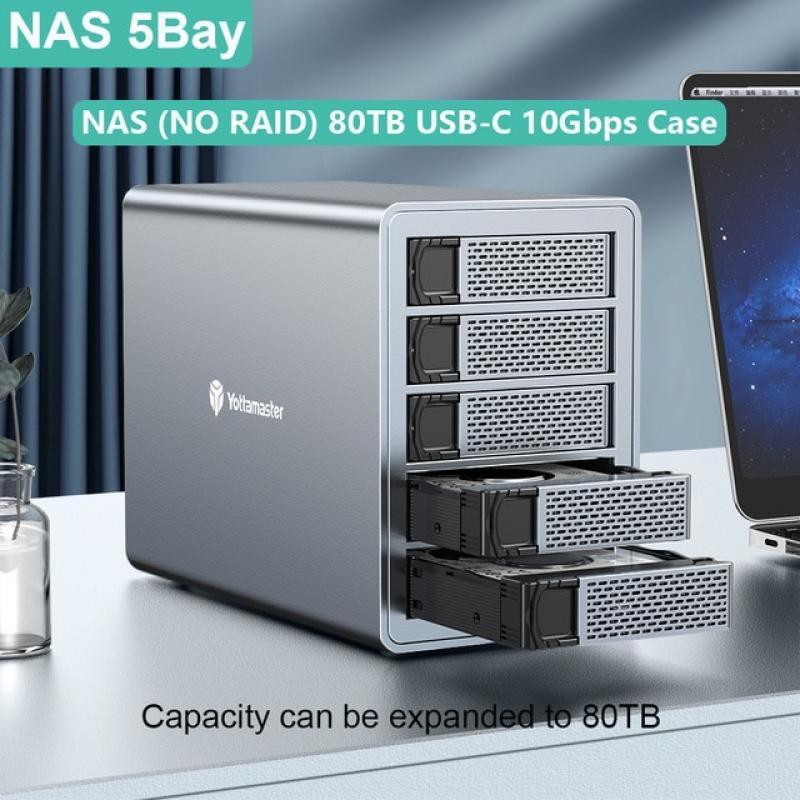

Yottamaster-5 Bay Enclosures for 2.5 and 3.5 inches HDD/SSD
10 Gbps Ultra-fast Speed
This 5 bay hard drive enclosure adopts USB3.1 GEN2(Type-C) protocol with a transfer rate of up to 10Gbps (Max). Note: The speed will vary from the different performances of the hard drive and computer host. Applicable to Windows, Mac OS and Linux devices.
For 2.5"/3.5" HDD & SSD
Yottamaster 5 bay HDD enclosure has FIVE metal removable trays, fiting both 2.5" SSDs where speed matters most and 3.5" HDDs when it's important to maximize the storage capacity. The hard drives are fixed by provided screws, which can effectively be against shock and interface damage.
Daisy Chain - 270TB Capacity
This 5 bay hard drive enclosure supports 5 hard drives with a maximum capacity of 90TB (18TB * 5 Bay). Use the dual USB-C Gen2 (10Gbps) ports to daisy chain two additional peripheral devices (except main device), which means the whole capacity could reach up to a monster 270TBx3 enterprise-class storage capacity in total.
80mm Silent Fan
Yottamaster hard drive enclosure is made of all aluminum. It not only provides a stable structure while running, but ensures a long-term use. Plus an 80mm silent fan, meteor cooling holes on front and rear panel and the ultra cool aluminum casing to keep your drives cool during long hours of operation.
Speed up Your Workflow
The 5 bay hard drive enclosure allows you to daisy chain a second or third external devices for extra workspace/storage capacity. For versatile working needs and allow you to deal with your files at a faster speed. With the indicator lights, you can easily know the working status of your hard drive by one glimpse.
Model Number: FS5C3
Key Features
1. The body shell is made of aluminum alloy, sandblasted and anodized, and the metal texture is meticulously created;
2. Support Daisy-chain daisy chain serial function, can support the downward serial connection of 2 devices and read at the same time;
3. External USB3.1 output interface, which can support USB3.1 Gen2 10Gbps transmission data at most;
4. Support smart hibernation technology, (being idle for 10 minutes to enter hibernation) energy saving and environmental protection, and improve the service life of the hard disk;
5. Built-in cooling fan, front and rear cooling holes air duct design, effectively improve the heat dissipation performance of the whole machine;
6. Fully compatible with 2.5-inch & 3.5-inch SATA HDD / SSD hard drives;
7. A single hard disk can support 18TB, and a total of 90TB can support a large amount of storage;
8. No need to install the driver, support hot-swap, plug and play;
9. Built-in 150W high-power power supply;
10. LED indicator monitoring, monitoring the working status of the hard disk at any time, the blue light is always on when the power is on, and the blue light flashes when reading data;
11. Fully compatible with Windows / Mac / Linux multi-platform operating systems;
Specifications
Dimensions
264.8* 137 * 200.7mm
Interface
USB3.1
Chip Type
VL715+ VL822 Q7 + VL822 Q8
Cable Length
about 1m
Net weight
4160g
what's in the box
Host, Data cable: USB Type-A To USB Type-C , USB Type-C To USB Type-C, instructions, 40 screws, screwdriver
