CE Certification:Yes
Origin:Mainland China

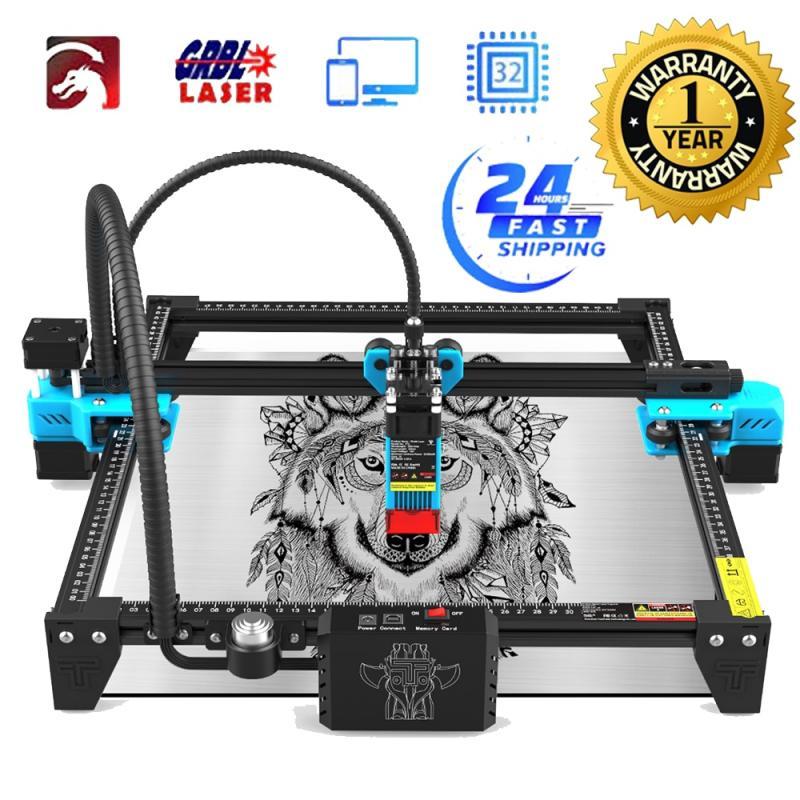

Latest Laser Beam Shaping Technology: TTS-55 uses the latest 5.5W laser beam shaping technology diode laser, it has an ultra-fine 0.08mm sharp laser focus, with super cutting penetration and precision, can cut up to 8mm thick wood, 5mm acrylic, carve ceramics and stainless steel.
Fast focus design: Combines a fixed focus lens and a knob to adjust the height. You just need to turn the knob to focus. Equipped with a fixed focus column, which makes it very easy to use.
Easy assembly structure: aluminum profile structure design, double Y-axis motors make the machine work more stably and improve the engraving accuracy. 60% pre-assembled, assembly can be completed in 30 minutes.
Square measuring ruler: Machine frame contain precise scale lines, which is convenient for you to measure the size of engraving objects quickly.
Wide Compatibility:Smart phones APP control, wifi connection, USB connection
The machine is compatible with various mature engraving software, such as LaserGRBL, LightBurn, Benbox, GrblController, LiteFire, supports PWM mode engraving, supports Windows Mac system, and engraving file format Support JPG, PNG, DXF, SVG, G-code, NC, BMP, etc.
Safe Design: The laser protective cover filters 98% of the ultraviolet light to the eyes. The motherboard has a separate control switch.
Machine parameters:
Model: TTS-25 / TTS-55
Engraving Range: 300 * 300mm
Laser Wavelength: 445 ± 5nm
Engraving Accuracy: 0.1mm
Engraving Speed: 10000mm / min
Machine Weight: 3kg
Software Support System: MAC, Windows
Machine Material: Aluminum Profile + Plastic Parts
Power Supply: 12V 4A DC
Control Board: LTS esp32 Motherboard (32bit)
Laser Power: 2.5w/5.5w (optional)
Input Power: 15w/40w (optional)
Software Identification File Format: NC, BMP, JPG, PNG, Gcode, EtcSupporting
software: Lasergrbl (Windows system), Lightburn (General)
Power type: European standard / American Standard (Optional)
Languages Supported By The Software: Chinese, English, Italian, French and German
Working Environment: Temperature 5-40 ℃, Humidity 20-60%
Engraving Mode: USB Online, TF Card (Application Program, Web Page Control)Carving Materials: Wood, Plastic, Paper, Leather, Sponge Paper, Alumina, Etc
Engraving Mode: Graphic Engraving, File Engraving, Scanning Engraving, Contour Engraving And Pixel Engraving
