Model Number:100K ohm NTC 3950
Item Type:Thermistor
Origin:Mainland China

Cartridge Heater Specification
⊙Material: 304 Stainless Steel
⊙Length: 1m/58.95 Inches.
⊙Voltage: 12v, Power: 40w
⊙Resistance Range:3.4-3.8oms
⊙Standard resistance:3.6oms
⊙Watts Range:37-42W
⊙Standard Watts:40w
Thermistor Specification
⊙Material: Plastic, Metal.
⊙Length: 1m/58.95 Inches.
⊙Wire diameter: 1.05mm
⊙Wiring Length: 1M，3.28FT
⊙Withstand voltage: 300V
⊙R value: R25 (25 ℃)
⊙B value: 3950K
⊙Resistance High Accuracy: ± 1%
⊙accuracy B value accuracy: ± 1%
⊙Working temperature range: -40 ℃ ～ + 300 ℃
⊙Dissipated power coefficient: ≥5 mW / ℃ (in static air)
⊙Maximum rated power: 45mW
⊙ Thermal time constant: ≤7S (in static air)
⊙Temperature coefficient of resistance: -2 ～ -5% / ℃
⊙Resistance Value: 100K Ohm.
⊙Dissipation power factor: ≥ 5MW / ° C in static air
⊙thermal time constant: Max 7S.
⊙Hot time constant: 7s or less.
For 3D printers: use TEMP_SENSOR 11 in Marlin firmware
Small Size: 1.25mmx2.0mm glass bead
High accuracy: 1% Resistance value at 25°C=100K
Wiring insulation: high temperature teflon/PTFE
Advantage:
1.Cartridge heaters is consist of a cylindrical stainless steel tube and thus provide a high corrosion prevention.
2.Compatible with Creality CR-10S Pro,CR-X,Ender 3, Ender 3X, Ender-3 Pro 3d printer, etc
3.The number of coils varies depending on the power, and provide a great uniform distribution of heat,
which considerably increases the long life of the heater as well as prevents the oxidation of the heater wire even at high temperatures
4.The solids, liquids, and gases need to be heated by cartridge heater, transmit heat quickly by conduction if the producer of the heat (the cartridge) is in direct contact with the heat sink (any solid, liquid, or gas)

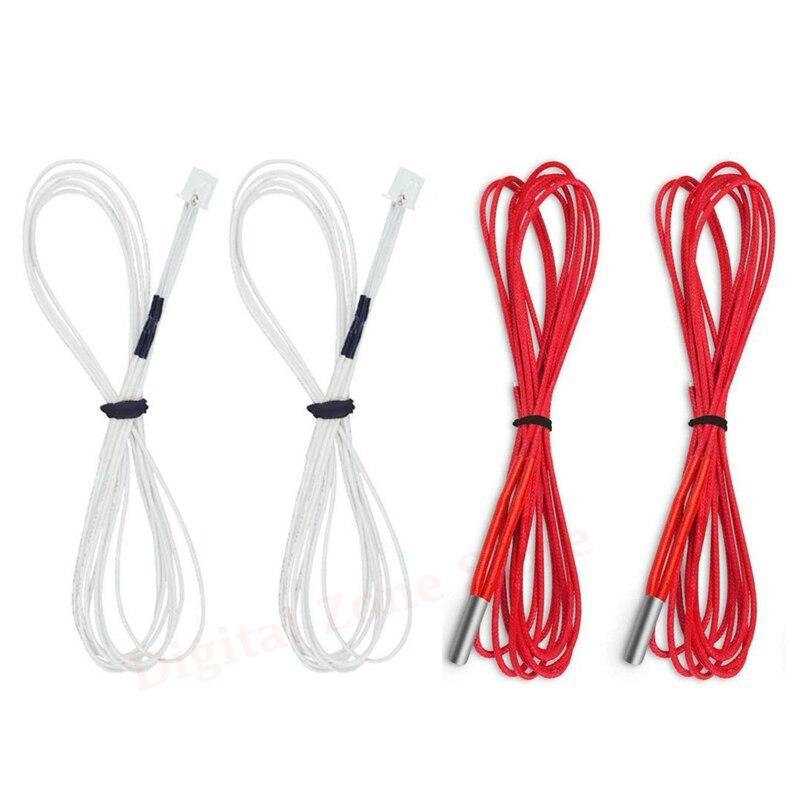

Package Included :
2 * 1M 24V Cartridge Heater
2 * 1M NTC Thermistor
