Voltage:100-240V
Print Speed:40ppm
Double-sided Printing:No
Supports Network Printing:Wired
Paper Feed Mode:Auto
Max Paper Size:A4
Type:Inkjet Printer
Interface Type:USB
Origin:Mainland China
Certification:CE,RoHS
Model Number:KD210-F
Modle:KD210-F Online Inkjet Printer
Language:more than 40 languages
Print Height:1.2-25.4mm
Print Resolution:600*600DPI
Printing direction:Adjustable with 360 degree, meet all kinds of production needs
Print Content:Multi-language characters, dynamic trace QR code, variable database
Printing material:Carton/Plastic/Metal/Plate/Tube/Stone/Cable/Electronic Components
Ink Color:Black,white,red,yellow,blue,green,invisible,UV (food grade inks)
Display:10 inch touch screen
operating system:Linux operating system
Ink Type:large-capacity ink bag continuous ink supply system
Host:202mm*119mm*61.2mm
nozzle group:112mm*79mm*103mm

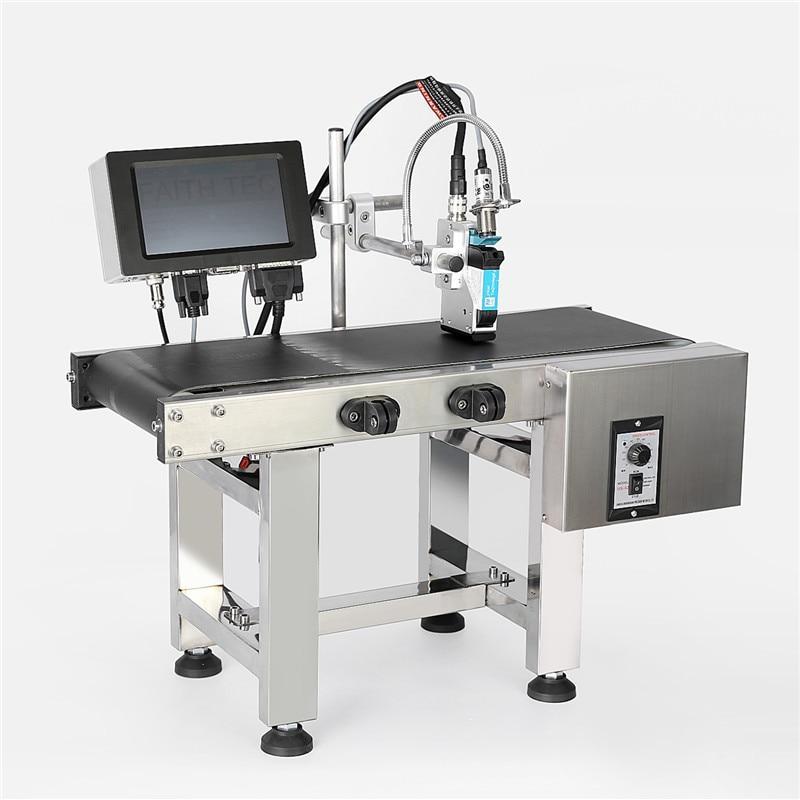

Faith Automatic Coding Machine Online 40 Languages Digital Inkjet Printer Thermal Inkjet TIJ Printer
TIJ inkjet printer-KD210-F, which can efficiently and flexibly print dynamic database, support traceability and anti-counterfeiting system, dynamic database real-time high-speed printing , Support 40 languages, powerful GS1 QR code and bar code function, to meet customers' various applications. KD210-F can be widely used in packaging industry, pipes, profiles and other professional production lines, and is committed to solving your printing problems in all fields.
Size Chart
This online inkjet printer host is small size and compact ,the net weight is only 2KG, which can be flexibly installed on various conveyor belts and paging machines.
10 Inch High Sensitive Touch Screen
The TIJ inkjet printer 10-inch LED industrial touch screen is used to improve the accuracy of operation identification. The operator can operate flexibly with gloves or even wet hands to cope with various industrial operating environments.
More than 40 languages
This online inkjet printer support more than 40 countries and regions (Chinese / English / Arabic / Russian / French / Vietnamese / Korean / Burmese /Indonesian / Hindi / Portuguese / Japanese / Spanish / Italian...)
One machine, dual purposes
The TIJ inkjet printer flexible combination of nozzles modules, which enable the machine to realize a single nozzle printing, or two nozzles printing, it can be used in two production lines instead of two printers
Truly High-Speed Printing
The printing trigger action can be controlled within 10 milliseconds. The maximum printing speed can reach 406 meters / minute, which is about 150% of similar products.
Three data interfaces, four types of information transmission
Interface type: USB, RS232, RJ45.
Users can store pictures (.bmp), text (.txt / .csv / .xlsx), database and EXCEL in the U disk to connect this machine to print directly.
One set
Aluminum alloy print head ground wire connection line
Power adapter
Inkjet printer
Power cord
Nozzle ink cable
Nozzle
Fiber optic sensor
Ink cartridge
DB9 plug(male), DB15 plug(male), DB15 plug(female)
Cross mounting block
Mounting block accessoried
USB disk
E-stylus and ink cartridge tools
Tools
Sensoe stand
Stainless steel tube(diameter16*300mm*4)
Terminal Centralized Control
One user terminal controls multiple printing devices,which realizes multiple printers working in time sequence, and makes the production line intelligent.
Seamless splicing With Dual Print Heads
Through the software AI algorithm, the trigger time of each nozzle is precisely controlled to achieve the perfect splicing of the nozzles.
Two printing trigger methods
Encoder: To realize equiditant printing of tubes, profiles and other products
High-performance photoelectric sensor: print a single product.
Save Printing Costs
The system is embedded with a powerful ink drop consumption algorithm, which realizing real-time control of inkjet printing costs, saving 15% of consumables compared with similar products.
Traceable Coding System
KD210-6 supports GS1 standard, which could satisfy the user's traceability requirements by printing the
worldwide recognized code on their products
Smooth operation & stable performance
Adopts American TI AM3358CPU.
Will not caused any stuck during operation
Avoid Nozzle Clogging
Faith researched the "Alternate Printing" model in the industry. The left and right rows of the ink cartridge nozzles work alternately, which avoids the problem of nozzle clogging and also extends the service life of the nozzles.
Print Smaple
TIJ inkjet printer-KD210, which can efficiently and flexibly print dynamic database, support traceability and anti-counterfeiting system, dynamic database real-time high-speed printing , Support 40 languages, powerful GS1 QR code and bar code function, to meet customers' various applications.
TIJ inkjet printer machine is widely used in most materials, such as wood, various metals, stone, leather, cloth, bamboo, wood, paper, ABS, PVC, epoxy resin, concrete, glass, ceramics, organic materials, polystyrene, plastic, rubber and so on.
It is widely used in many industries, such as: medicine, food and beverage packaging industry, textile industry, handicraft industry, printing industry, electronic components, communication products, watches, glass products and other manufacturing industries.
Descripiton
KD210-F Online Inkjet Printer
TIJ2.5 thermal foaming nozzle
1.Printing accuracy
Resolution up to 600 × 600DPI
(longitudinal: 100DPI, 150DPI, 300DPI, 600DPI
horizontal: 30-600Dp precision adjustment) adjustable
printing gray level 1-6
2.Printing height
The minimum printing height is 1mm, the maximum printing height is 127mm/one inch, the maximum printing height is 254mm (the best mass distance between the nozzle and the printing surface is 1-2mm)
3.Printing speed
406meters/90DPI, 304meters/120DPI, 240meters/150DPI, 120meters/300DPI, 60meters/600DPI (multi-group variable data ultra-high speed 10 should be printed within 10 milliseconds)
4.Print content
Multi-language characters / GS1 DataMatrix / dynamic trace QR code / barcode / graphics / serial number / date / shift / counter / variable database / network serial real-time dynamic data printing...
5.Printing material
Carton/Plastic/Metal/Plate/Tube/Stone/Cable/Electronic Components/Auto Parts/Industrial Chemical Packaging/ Pharmaceutical Food/ Gift Box
6.Ink type
Food grade, water-based, oily, weak solvent, solvent 42m ink cartridge, large-capacity ink bag continuous ink supply system
7.Ink color
Black, white, red, yellow, blue, green, invisible, UV (food grade inks of various colors)
8.Ink cartridge chip
RF|D non-contact chip, automatic identification of ink parameters and recording ink remaining
9.The machine parameters
operating system: Embedded Linux operating system
Main hardware: US TAM3358 industrial grade CPU, US Xilinx Spartan6 industrial grade FPGA, T|J dedicated ASC module
10.Communication Interface
USB, RS232, TCP/P network port (support network remote centralized control management, symmetricheavymachine/conveyor/pager/packaging machine/ERP database/drug monitoring code/anti-counterfeiting traceability system)
11.External interface
Optical Eye / Encoder / Alarm Control Input / Serial Number Transmission / External Serial Number Reset / External Serial Number
Update / External Sneeze Information Selection / Flip Reverse Control / Nozzle Port
12.Nozzle installation
Separate sprinkler installation can be seamlessly assembled with double nozzles, separate nozzles can be separated separately (1.8
m link cable) can be equipped with nozzles with anti-collision components
13.Support language
Support more than 40 countries and regions (Chinese / English / Arabic / Russian / French / Vietnamese / Korean / Burmese /Indonesian / Hindi / Portuguese / Japanese / Spanish / Italian...)
14.Power parameter
Power adapter 100-240V AC input 30∨4A DC output
15.Machine material
Industrial grade standard protective body (aviation grade aluminum/industrial grade stainless steel)
16.Machine specification
Host: 202mm*119mm*61.2mm
nozzle group: 112mm*79mm*103mm
17.working environment: Temperature 0-45 ° C / humidity 30-70% Rh
