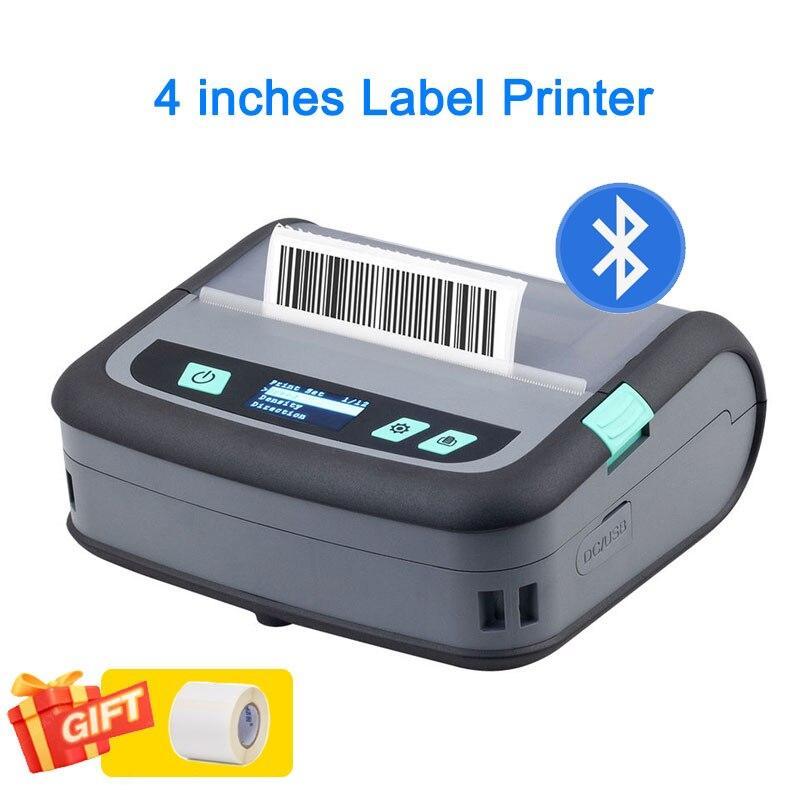

Application:For Commercial
After-sale Service:National Joint Guarantees
Weight:1.5kg
Internal Memory:None
Size:150 mm (L) x 131 mm (W) x 64 mm (H)
Voltage:100-240V
Dot Matrix Printer Type:Universal ticket printer
Consumable Type:Label Paper
Max. Resolution:203dpi
Color Print Speed:NONE
Black Print Speed:70mm/s
Use:Barcode Printer
Print Speed:16ppm
Double-sided Printing:No
Supports Network Printing:Wired/Wireless
Paper Feed Mode:Roll Feed
Max Paper Size:A6
Type:Thermal Printer
Interface Type:bluetooth
Origin:Mainland China
Certification:CE
Features:
● Integrated design , easy operation
● 203 dpi resolution models
● Simple design ,holding it in your hand comfortably
● 70mm/s high print speed
Product Specification
Resolution: 203 DPI
Printing method: Direct Thermal
Max.print speed: Max.100mm (3.937") / s
Max.print width: 105 mm
Max.print length: 1778 mm (70")
Media
Media type: Continuous, gap, black mark
Media width: 40 mm ~ 112 mm
Media thickness: 0.06 mm ~0.254 mm
Paper roll diameter: 50 mm
Performance Features
Processor: 32-bit CPU
Memory: 8MB Flash Memory/ 8MB SDRAM
Interface
Stardard version: USB+Bluetooth
Screen
1.3”OLED
Sensors
①Gap sensor
②Cover opening sensor
③Black mark sensor
Fonts/Graphics/Symbologies
Internal fonts 8 alpha-numeric bitmap fonts, Windows fonts are downloadable from software.
1D bar code
Code 39, Code 93, Code 128UCC, Code 128 subsets A, B, C, Codabar, Interleaved 2 of 5, EAN-8,EAN-13,
EAN-128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on,MSI, PLESSEY, POSTNET, China POST
2D bar code PDF-417, Maxicode, DataMatrix, QR code
Rotation
0°、90°、180°、270°
Emulaion TSPL、EPL、ZPL、DPL、CPCL、ESC/POS
Physical Features
Dimension 150 mm (L) x 131 mm (W) x 64 mm (H)
Weight: 583g
Reliability
Print head life: 30 km
Software
Operation system: Windows/Android/iOS
SDK Windows/Android/iOS
Power supply
Input/Output: Input: AC 100-240V,0.5A 50-60Hz Output：DC 9V/1A
Battery: 2500mAh Li-i
