Application:For Commercial
After-sale Service:Shop's Three Guarantees
Weight:1.5kg
Size:231(D) x 163(W) x 150.7(H)mm
Voltage:100-240V
Consumable Type:Label Paper
Max. Resolution:203dpi
Black Print Speed:Max:152mm/s Min:50.8mm/s
Use:Barcode Printer
Print Speed:12ppm
Double-sided Printing:No
Supports Network Printing:Wired
Paper Feed Mode:Auto
Max Paper Size:80mm
Type:Thermal Printer
Interface Type:USB
Origin:Mainland China
Certification:CE,FCC,RoHS,UL

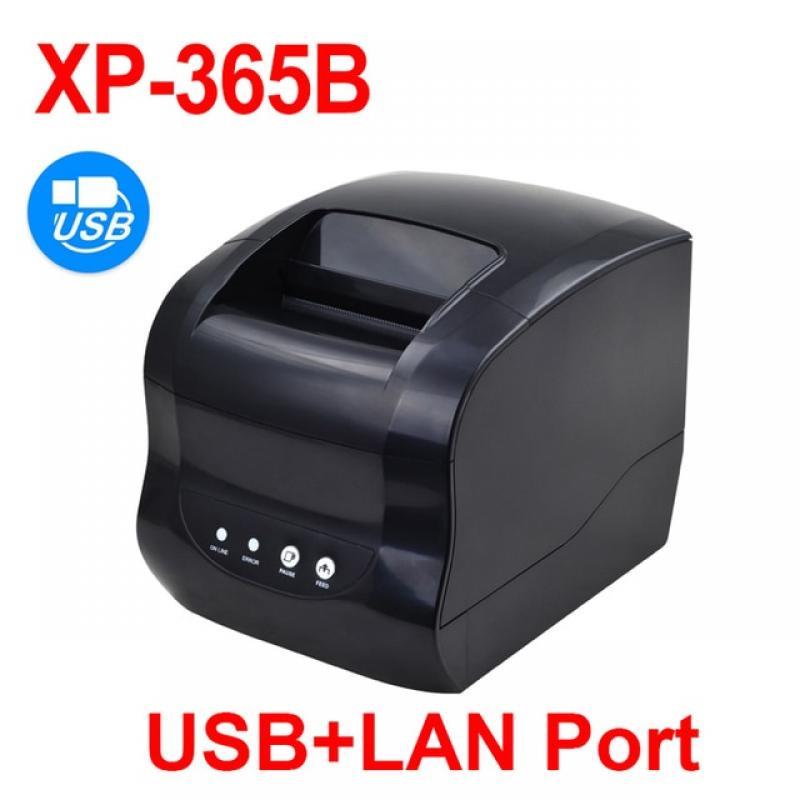

365B Specification
Type:365B
Printing method:Direct Thermal
Resolution:203 DPI
Printing width:76 mm
Printing speed:127mm/s
Print head position sensor:Micro switch
Media type:Thermal Paper / Thermal
Bar code:CODE128/128M/EAN128/CODE39/39C/39S/CODE93/EAN13/EAN13+2/EAN13+5/ EAN8/EAN8+2/EAN8+5/25/25C/CODABAR/POSTNET/UPC-A/ UPCA+2/UPCA+5/ UPC-E/UPCE+2/UPC-E+5/CPOST/MSI/MSIC/PLESSEY/ ITF14/EAN14
QRCODE PDF417 / QRCODE / DataMatrix
Paper diameter:82mm(Max)
Paper off type:Tear off
Internal font:Commonly used in single-byte fonts; FONT 0 to FONT 8, K, TST24.BF2,TSS24.BF2
Enlargement & rotation:1 to10 times enlargement in both directions; 0°, 90°, 180°, 270° rotation
Gross weight:0.94 kg
Dimension:212 x 140 x 144mm (D*W*H)
Work:5～45℃, 20－80%RH
Storage:-40~55℃, ≤93%RH(40℃)
Drivers:Win XP/Win Vista/Win 7/Win 8/Win 8.1/ Win10
Input:DC 24V/2.5A
Paper exists detection:Photoeletric sensor
Interface USB/USB+Bluetooth
Memory:RAM: 4M; FLASH: 4M
Image:Monochromatic PCX, BMP image files can be load to FLASH
Emulation:ESC/POS/TSC
Our printer free offer device software + BarTender software,when you need it,you can send message leave us your email,we can free offer these.
Manual: https://www.xprintertech.com/pos-printer-user-manual
application :
https://www.xprintertech.com/xprinter-application
Barcode edit SDK :
https://www.xprintertech.com/sdk
here is driver link :
https://www.xprintertech.com/drivers-2
note: these printer both support print label and receipt . print width on 20-80mm.
How to use it ?
If you want to connect with your phone,please choose the bluetooth version.then download a name XPrinter app on your phone.last open the APP to find the bluetooth set ,you can find our printer.
if you dont know how to use it,you can tell us free time,we are glad to teach you use it.
we can offer product CE or commerical invoice,if you need,you can leave note on your order.
we can promise our store all printer 100% orginal Xprinter,if you receive false printer,you can contact us,we will full responsible
