5G Wi-Fi Transmission Rate:867Mbps
Wired Transfer Rate:10/100/1000Mbps
Wi-Fi Transmission Standard:802.11ac
2.4G Wi-Fi Transmission Rate:300 Mbps
Wi-Fi Supported Frequency:2.4G & 5G
Supports WPS:Yes
Supports WDS:No
Number of USB Interfaces:None
WAN Ports:1 x10/100/1000Mbps
LAN Ports:1
Function:Firewall
Application:Outdoor
Package:Yes
Standards And Protocols:Wi-Fi 802.11b,Wi-Fi 802.11n,Wi-Fi 802.11ac,Wi-Fi 802.11g
Max. LAN Data Rate:867Mbps
With Modem Function:No
Type:Wireless
Origin:Mainland China
Certification:CE,FCC
Model Number:WIFI Outdoor Wireless AP/Range Extender/Router
Ports:1 xWAN 1000Mbps, 1xLAN 100Mbps
Chipset:MT7620A+7612E
Power Supply:DC24V / 0.5A Power over Ethernet ( Passive PoE)
Standard:IEEE 802.11b/g/n/a/ac
Wi-Fi Transmission Speed:867Mbps
Plug:EU/US/UK
Button:1 x Reset 8s
led:1 x Power, 1xWAN, 1xLAN, 1 x WiFI , 3 x Signal
Distance:Outdoors 500m, Indoor 150m(According to the actual environment change)
Antennas:4x7dBi Detachable Omni Directional
Product:1200Mpbs High Power Outdoor Wifi Repeater
Feature:Outdoor Wireless Wifi Repeater/ Router/extender/AP

Wifi Dual Band 2.4G 5G Frequency Wireless Repeater High Power Outdoor WIFI AP/Router
Description
The AC1200 HighPower Wi-Fi AP/Repeater is mainly used for providing free Wi-Fi service in big area such as factory, community, street or etc. The AP/Repeater can take an existing 2.4GHz or 5GHz wireless signal, repeat and extend it to a longer range where it is too far away for the router or access point to reach. The AP/Repeater simultaneously supports 2.4G and 5G wireless network connection, and it can supports 2.4G and 5G transmission speeds of up to 1200Mbps. It has 4x External Antennas providing even better wireless performance, transmission rates, stability technology automatically avoids channel conflicts using its channel selection feature.
Main Features
---1,The next generation of Wi-Fi, leading 802.11ac standard
----2,Complies with IEEE 802 11a/b/g/n/ac standards
---3,Dual-Band Speed up to 2.4GHz 300Mbps, 5GHz 867Mbps
---4,Weatherproof RJ45 Connector, Integragted Passive Power over Ethernet (PoE)
----5,Passive PoE Support for Flexible Deployment
----6,Provides high performance at a Long-Range Links, depending on its antenna.
---7,Robust weatherproof case withstands harsh outdoor conditions.
----8,Maxmum Security with 802.1X, WAP, and WPA2
---9,Support 3 LEDs Wireless Signal Strength
----10,Build in lightning arrester (15kV ESD)
Purchase Notes:
There are N300,AC600 and AC1200 Models optional,
N300 model only suppport 2.4 G
,
AC600 and AC1200 models are support Dual band 2.4Ghz and 5Ghz
.please place order according to your actual needs:
* 1 ) N300 and AC600 wifi repeater it is 10/100Mbps WAN/LAN; AC1200 wifi repeater it is 1 x 10/100/1000Mbps WAN and 1 x 10/100Mbps LAN.
* 2 ) N300 and AC600 wifi repeater it is 2 x 7dBi Detachable Omni Directional Antennas ;AC1200 repeater it is 4 x 7dBi Detachable Omni Directional Antennas.
There are 3 models optional, and different models have different coverage distance, please choose suitable model before purchase:
The

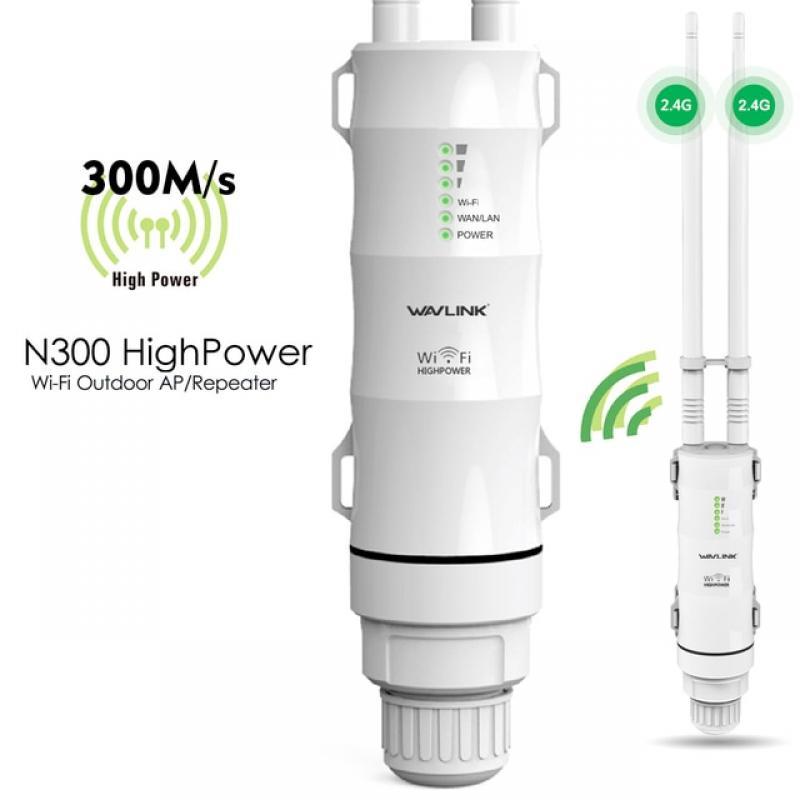

N300
(570HN2)one is about 50 to 200 meters.
The
AC600
(570HA1) one is about 50 to 300 meters.
The
AC1200
(H72HG3/572HP3) one is about 100 to 500 meters.
*These data are from the Wavlink lab,the actual effect depends on your actual use environment
