Card Type Device:4G Card
Package:Yes
Certification:CE
Model Number:L850-GL
Origin:Mainland China

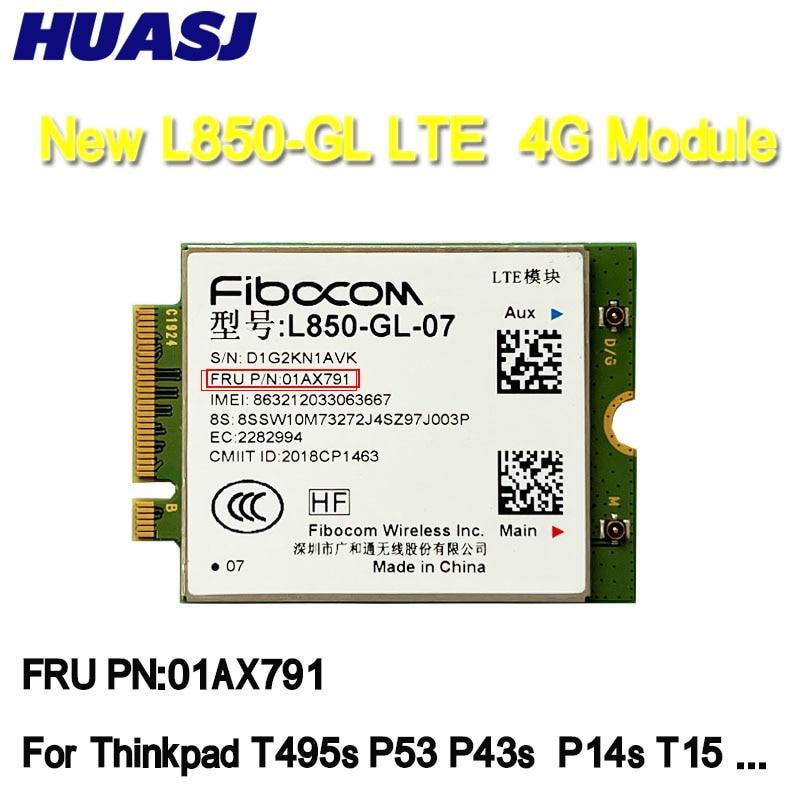

4G LTE Wireless Fibocom L850-GL M.2 Card For Lenovo Thinkpad T495s P53 P43s T14 P14s T15 T14s X13 P15s T15p L14 L15 01AX792
Product manual:
The L850-GL is an industry-leading LTE Cat9 high-speed full-memory module. It is based on the Intel7360 platform and is based on the M.2 interface. The size of the L850-GL is 30*42*2.3mm. It supports LTE FDD, LTE TDD, WCDMA and many other formats. The application of the notebook computer is preferred, and it can be widely applied in fields such as gateways, industrial monitoring, and telemedicine. The Fibocom L850 has 450Mbps downlink speed, supports 2*2MIMO, supports 3CA combination and 2CA combination. Supports eSIM at the same time, can meet users' fast commercial demand.
Compatibility:
ThinkPad X280 (20KE,20KF);
ThinkPad T580 (20L9,20LA);
ThinkPad P52s (20LB,20LC);
ThinkPad X1 Yoga Gen 3 (20LD,20LE,20LF,20LG);
ThinkPad T480s (20L7,20L8);
ThinkPad X1 Carbon Gen6 (20KH,20KG);
ThinkPad T480 (20L5,20L6);
ThinkPad L480 (20LS,20LT);
ThinkPad L580 (20LW,20LX);
ThinkPad X380 Yoga (20LH,20LJ);
ThinkPad P52 (20M9,20MA).
Product Introduction:
Dimension(mm):42.00 x 30.00 x 2.30;
Interface: M.2;
LTE FDD: B1/B2/B3/B4/B5/B7/B8/B11/B12/B13/B17/B18/B19/B20/B21/B26/B28/B29/B30/B66;
LTE TDD: B38/B39/B40/B41;
WCDMA: B1/B2/B4/B5/B8;
Power Supply: 3.135V~4.4V(Typical3.3V);
Operating Temp.: -20℃~+65℃;
OS Driver: Win10/Android*/Linux/Chrome OS
Data Transmission:
LTE FDD(Mbps):450(DL)/50(UL) (Cat9);
LTE TDD(Mbps):347(DL)30(UL)(Cat9);
UMTS(kbps):384(DL)/384(UL);
DC-HSPA+ (Mbps):42(DL)/5.76(UL).
