5G Wi-Fi Transmission Rate:None
Wired Transfer Rate:10/100Mbps
Wi-Fi Transmission Standard:802.11n
2.4G Wi-Fi Transmission Rate:300 Mbps
Wi-Fi Supported Frequency:2.4G
Supports WPS:Yes
Supports WDS:Yes
Number of USB Interfaces:eSATA
WAN Ports:1 x10/100Mbps
LAN Ports:1
Function:Firewall,VPN
Application:Outdoor
Package:Yes
Standards And Protocols:Wi-Fi 802.11b,Wi-Fi 802.11n,Wi-Fi 802.11g
Max. LAN Data Rate:300Mbps
With Modem Function:Yes
Type:Wireless
Origin:Mainland China
Certification:CE
VPN:Yes
Wireless:Wireless
Products Status:Stock
CF-EW71 Feature 1:360 Degree wifi coverage
CF-EW71 Feature 2:Outdoor wifi router

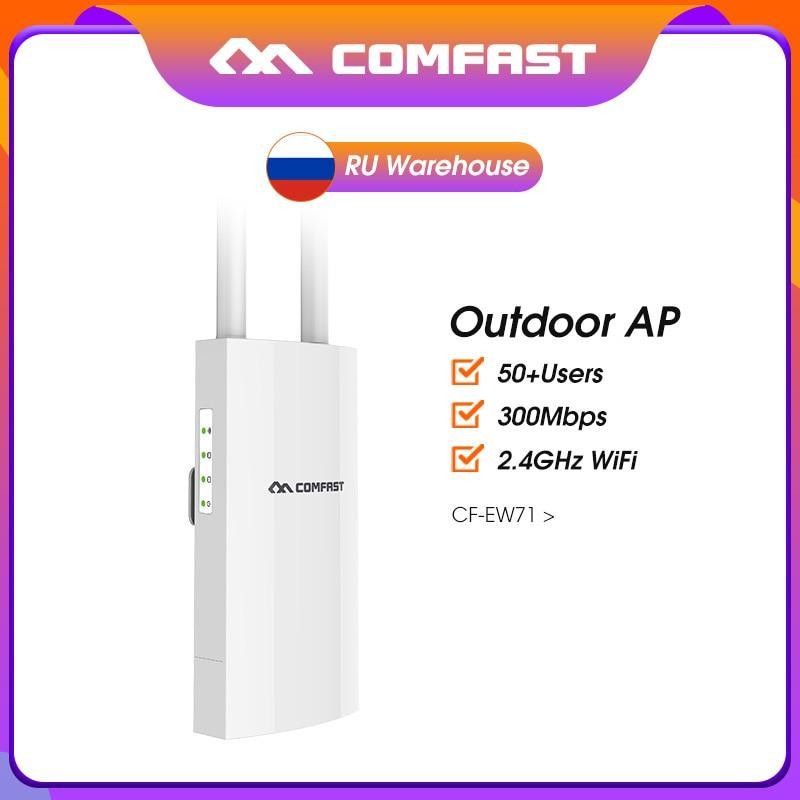

CF-EW71 High Power Outdoor AP WIFI Router 300Mbps wi-fi Ethernet Access Point Bridge AP router antenna WIFI cover base station
Q&A
Q1. How far is the wifi launch range?
A1. This is 360 degree wifi coverage outdoor AP,in an open, unobstructed place, the cover radius is 50-150M
Q2. This is an WiFi repeater , or router ?
A2. This is outdoor wireless AP as well as WIFI router.
This outdoor device has 3 mode, AP / Router/ Bridge
Q3. Whether thunderstorms need to be put indoors ?
A3. This is professinonal outdoor wifi router.IP66 waterproof rating
Brand Name: comfast
Model Number: CF-EW71 V2
Chipset:QCA9533 Chipset ,RAM : 64MB ; Flash : 16MB ; PA ChipSE2576L*2；
RF Parameters:500mW (27dBm) Transmitting Power
Antenna:2*5dBi External antenna ；
Wi-Fi Transmission Rate: 2.4Ghz : 300Mbps ;
Maximum receiving sensitivity ：-96dBm
Working frequency : 802.11b/g/n : 2.412GHz-2.484GHz ;
Physical interface : 1*10/100 LAN RJ45 Ethernet port (Support POE power supply) , 1*10/100 WAN RJ45 Ethernet port (Support POE power supply) , 1*RESET Button ;
Modulation Technology:DSSS : DBPSK@1Mbps、DQPSK@2Mbps、CCK@5.5/11Mbps ; OFDM:BPSK@6/9Mbps、QPSK@12/18Mbps、16-QAM@24Mbps、64-QAM@48/54Mbps , MIMO-OFDM :MCS 0-15 ;
Indicator light ：Power / WAN / LAN / WiFi indicators ；
Power supply ：POE power supply ,support 802.3af / 802.3at standard (Up to 100 meters）；Power adapter supply : 48V 0.32A POE power adapter ;
Power Consumption:
Lightning protection; IP66 Level
MTBF:>250000H
Installation method :Pole installation, wall installation；
Product Size: 353*85*44mm
Case:ABS Imported material + plastic shell ；
Working Environment:
Working Temperature: -40'C~55"C
Storage Temperature: -40"C~70'C
Working Humidity: 10%~90%RH No-condensing
Storage Humidity: 5%~95%RH No-condensing
Type: Wireless
Packing: Yes
colour:white
Application :
Application for park / school / Driving school / Plant area / Shopping mall / Village
Specifications:
High power 500mW and dual polarization delivers long-range coverage
Passive PoE(power over Ethernet) supports for flexible deployment
Weatherproof IP66-rated housing resists harsh climates.
speed up to 2.4GHz 300Mbps
Supports AP, Router, Repeater,WISP as operation modes
Package Contents:
With retail box
1* CF-EW71 outdoor AP
2* screws
1* POE power supply
1* stainless steel cable tie
1* manual
