Data Transmission:Other
Output Interface:USB Output
Package:Yes
Use:Standard Battery
Model Number:Lii-500/LII500S/LII-S6/PD4
Display screen:Yes
Intelligent Charge:Yes
Quick charge:Yes
Type:Electric
Origin:Mainland China
Certification:CE,FCC,RoHS
Order description
Lii-S6 and adapter:Lii-S6S charger + 12V/3A adapter + manual
Lii-S6 Full: Lii-S6 charger + 12V/3A adapter + 12V Car Cable + manual
Lii-S6 6-slot Car Polarity Detect Charger
Auto Polarity Detect. * 12V / 3A input with a total power of 36 W. 6 slots work independently. It can be charged together with a variety of battery mixes. * Can accept 32700, 26650, 21700, 20700, Ni-MH SC and other large batteries * A variety of protection, charging safe.
Lii-500S Features
1. New touch control function;
2. Four optional charging currents: 500mA*4/700mA*4/1000mA *4/2000mA*2;
3. Two discharge currents: 250mA*4/500mA*4;
4. It can charge different batteries of different specifications (18650/26650....../AA/AAA);
5. This product uses a separate LCD display, charge and discharge mode (MODE). Voltage (V).
Current (mA). Time (h). Capacity (mAh) parameters, at a glance;
6. CHARGE, DISCHARGE and TEST modes can work simultaneously; independently set
charge/discharge capacity detection/normal capacity detection function;
7. A variety of protection functions: overcharge and over discharge, short circuit, temperature,
0V voltage activation function, (-ΔV & 0ΔV), 1.65V-2.2V non-charging function, intelligent identification
of bad battery and reverse battery detection protection;
8. With standard 5V/1000 mA USB output function (only valid when AC power is connected);
Lii-500S Parameters
Input voltage:
DC 12V/3.0A
Output voltage:
DC 4.2V / DC 1.48V
Output current
Lithium battery charging current:
500mA*4 /700mA*4/1000mA *4 2000mA *2
NiMH battery charging current:
500mA*4/700mA*4 /1000mA*4
Rechargeable battery specifications:
26650,21700,18650,18350, 20650,14500, AA, AAA, etc.
Discharge current:
250mA / 500mA
USB output:
5V---1000mA
Termination method:
intelligent voltage monitoring
Dimensions:
162mm (length) * 100mm (width) * 36mm (height).
Order description
Lii-500S and adapter:Lii-500S charger + 12V/3A adapter + manual
Lii-500S Full: Lii-500S charger + 12V/3A adapter + 12V Car Cable + manual
Note: The results of the Lii-500S charger test are for reference only and do not make any professional proof.

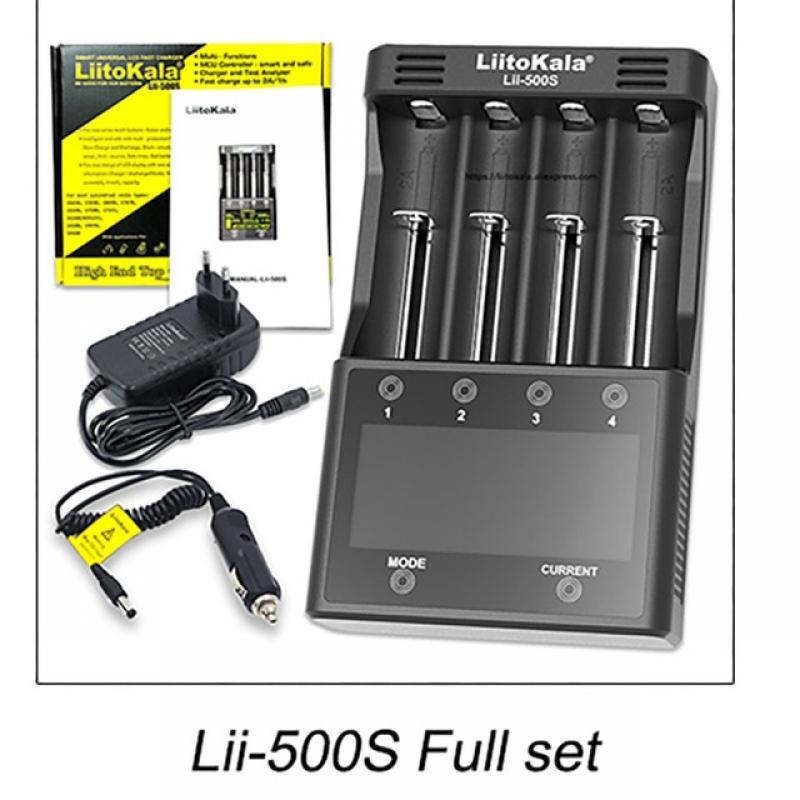

Product Image:
Shipping list:
Liitokala
lii-500 Charger 1PCS
Liitokala
2A
Adapter
1PCS
Liitokala
Car Charger 1PCS
Liitokala
lii-500 Manual
1PCS
Liitokala Lii-PD4
Chargerx1
AC Cable x1
Manual x1
Cautions:
1.
This charger can charge
all
cylindricalrechargeable
batteries 3.7V Li-Ion, 3.8V IMR, 1.2V Ni-MH/Cd, 3.2VLiFePO4
2.
Read this manual before use and pay special attention to the recommended charge current, must avoid to charge battery beyond the recommended current limit
3.
If DC input, only 12V
1Ais recommended
4.
Mind heating while charging
5.
Remove the charger from power source after charging complete, and remove the battery from the charger at the same time
6.
For indoor use only
7.
The displaying data only for reference, please refer to professional instrument for more accurate data
