Data Transmission:Other
Package:Yes
Use:Standard Battery
Model Number:YZ580 42V 10A
Display screen:No
Intelligent Charge:Yes
Quick charge:Yes
Type:Electric
Origin:Mainland China
Certification:CE
Frequency:47-63Hz
Input:AC 100-240V
Output Voltage:DC 42V(+ / - 0.3V)
Output Current:10A(+ / - 0.5A)
Warranty:12Months
Cooling Fan:Yes
Battery Number:10S battery charger
Keywords:Lithium( li-ion) Battery Charger
Case Material:Aluminum
Operating Temperature:-10 Degree to + 50 Degree

42V 10A 10S Car Fast Battery Charge
Parameters
Input Voltage : 100-240Vac
Frequency: 47-63Hz
Charge method: CC/CV
Operating Temperature: -10°C to +50°C
● Small Size: 205* 121* 50mm
● Light Weight: 1.2kg
● Delivery Tie: 2-5 working days
● Flame-retardant plastic case: Aluminum material case
● After-sales service: 12months Warranty
● Protection function: Over voltage / Over temperature / Over current / Short circuit and Polarity
● Light, Small, Stable, High-Efficiency, Safe, etc.Precise limit of voltage & current, qualified fully charged and avoid over charge
How to use:
1. Should be checked before using the battery charger is consistent with
the type of charger model is correct. If the model is not matched, charging may be abnormal and the battery may be seriously damaged.
2. Should be properly connected battery Do not reverse polarity! (Red + Black- or
Brown- Blue + or Red + Blue -).
3. Then the AC plug in the AC outlet, then the charger starts to charge the battery,
charging status LED color light displayed by the top of the charger.
(The indicator of LED: red is charging, green is charge finished or prepare charging)If the green light is always on, check that the charging cable is firmly connected to the battery.
4.Full of voltage, first unplug the charger's power plug, then unplug the battery plug.

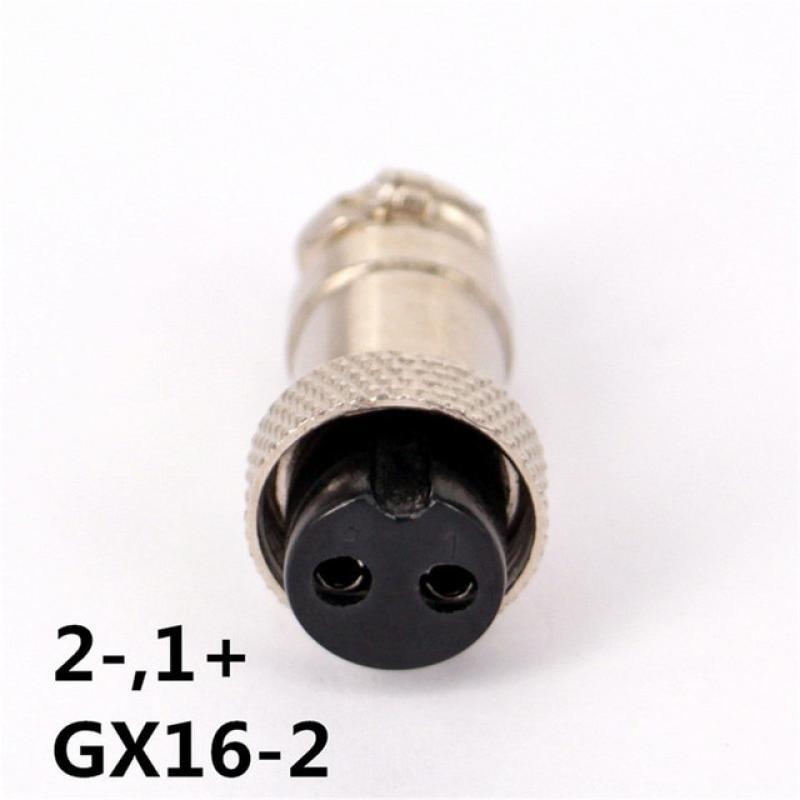

Choose Plug
Please Leave Clear Words of The Input AC Plug And Output DC Plug,Like 'AC: Number 3, DC:G Number. Especial 'E' & 'F',Otherwise Your Order Can't Be Sent,Thank You!!!
Product Show
FIG Charging Curve
