Support APP:No
Frequency:315 MHz/433MHZ
Channel:12
Package:No
Model Number:XLYXD-145
Wireless Communication:RF
Use:Universal
Origin:Mainland China
Certification:CE

Note: 433mhz and 315 mhz are available ,315mhz will be sent out if there is no demand on frequency
Control Lights, TVs, Motors, Fans, Cameras, Video signals, Audio signals, electrically operated Doors/ Locks/ Windows.

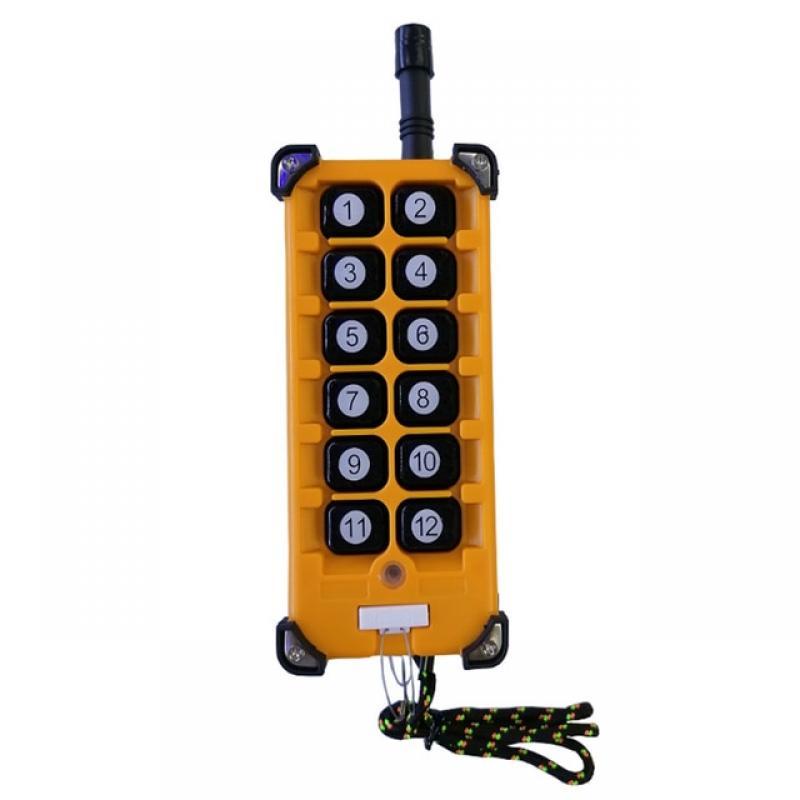

1.Transmitter
Channel:12CH
Remote Control Distance:0-3000m( Ideal Distance WITHOUT Any Block and Signal Interfere,Could Rise or Fall 10%-90% in Real Situation )
Encode:fixed code2264
Frequency:315MHZ/433MHZ
Size:70*158*38m
Power Supply:DC6V(4 section 5 batteryNote that the batteries do not match)
Please note: in order to better distinguish the industrial remote control frequency 315MHz and 433MHz, the antenna head color of the remote control is different, blue is the frequency 433MHz, I hope you can understand, if you have any questions, please contact me, thank you
2.Receiver
1.Working Voltage: 12V --48V   (12V 24V 36V 48V all is ok )
2.Quiescent Current: less than 10mA
3.Working Current: 30mA (1 Relay)
4.Working Temperature: -40'C - +80'C
5.Receiving Sensitivity: more than -105dBm
6.Working Frequency: 315MHz / 433MHz  Optional
7.Relay: 10A AC250V   10A AC125V 10A DC30V   10A DC28V
8.Max Load: 10A Relay, Resistive load less than 8A, Inductive load less than 3A
9.PCB Size:122*87*17mm
10.Case Size:145*91*40 mm
2.The way ofoutput
A. 1-12CH Momentary-----Press Transmitter Button “1”to learn
B. 1-12CH Latched----- Press Transmitter Button “2” to learn
C. 1-12CH Toggle-- -- Press Transmitter Button “3” to learn
D. 1-6CH Momentary, 7-12CH Toggle------Press Transmitter Button “4” to learn
E. 1-6CH Momentary, 7-12CH Latched------ Press Transmitter Button “5” to learn
F. 1-6CH Latched, 7-12CH Toggle------- Press Transmitter Button “6” to learn
G. 1-4CH Momentary, 5-8CH Latched 9-12CH Toggle------- Press Transmitter Button “7” to learn
H. 1-6CH Toggle, 7-12CH Momentary------- Press Transmitter Button “8” to learn
Momentary------------Press the Transmitter button 1, the receiver relay 1th is ON, release button 1;the receiver relay 1th is OFF, the same as 2/3/4/5/6---12 are independent.
Toggle---------------Press transmitter button 1 for 1 time, the receiver relay 1th is ON, press button 1 again, the receiver relay 1th is OFF, the same 2/3/4/5/6---12 are independent.
Latched------------------
Press transmitter button 1, the receiver relay 1th is ON, the relay 2/3/4/5/6 ---12 is OFF.
Press transmitter button 2, the receiver relay 2th is ON, the relay 1/3/4/5/6----12 is OFF.
Press transmitter button 3, the receiver relay 3th is ON, the relay 1/2/4/5/6----12 is OFF
Press transmitter button 4, the receiver relay 4th is ON, the relay 1/2/3/5/6----12 is OFF.
…………….
It also mean .Latched only can keep 1CH ON .and it will often have 1CH is ON.
3.Learning way and steps
1.Press the learning Button of the receiver and buzzer keep tweeting, indicate enter into the status of learning
2.Press the Relative button of the transmitter to learn Relative output way, indicate learning success as the buzzer tweet “Be Be Be” 3 sounds ,and then you press the transmitter Button you can hear the relay act sound.The receiver automatically exits learning state if you do nothing in 32 seconds.
4.Delete memory message
Keep pressing the learning Button of the receiver, the buzzer buzzer tweet and “Be Be Be Be  “ then release the button , indicate success to delete the memory message.
pacote inclued:
A:
1x Transmitter(No batteries included)
B:
1 x Receiver(with cover)
C:
1x Receiver(with cover)
1x Transmitter(No batteries included)
D:
1x Receiver(with cover)
2x Transmitter(No batteries included)
