Package:Yes
Channels:3 (2.1)
Model Number:PW215F
Maximum Power Per Channel:15W
Origin:Mainland China
Certification:CE
Name:Wall Amplifier With Touch Key
Type:Indoor Background Music System
Color:gold, black, white
Power Output:2*15W
Power:AC220V(50HZ) allow 110V-250V
Main screen size:3.5 inch HD screen
Expand TF card memory:32GB
Size:86*86*10mm
Output impedance:4-8Ohm
Bluetooth distance:10m
Infrared remote control distance:10m
Display:Key Touch
Frequency response:87.5Hz-108MHz
Indoor Background Music System Home Hotel Architecture Villa Amplifier Panel Bluetooth Connection Wall Amplifier With Touch Key
SPECIFICATIONS:

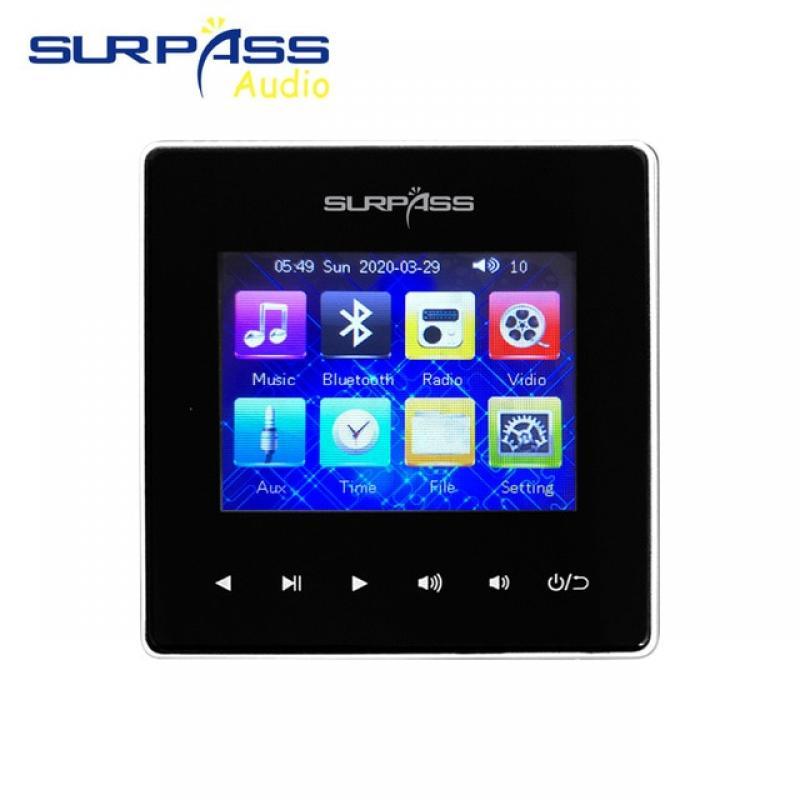

PW215F 2x15W Bluetooth Wall Amplifier
● Power: AC220V(50HZ) allow 110V-250V
● Output Power: 2*15W
● Main screen size: 3.5 inch HD screen
● Key Touch, easy operation
● Expand TF card memory: 32GB
● USB: 0TG USB function, 32G can be read
● Output impedance: 4-8 Ω
● Frequency response: 87.5Hz-108MHz
● Audio S/N ratio: ≥98db
● Bluetooth distance: 10m
● Infrared remote control distance: 10m
● Radio: Built-in all-digital auto-tuning radio, 30 radio stations
● Product size: 86*86*10mm
PW225A 2x25W Bluetooth Wall Amplifier
● 2.8-inch Display, 320*240 Resolution
● Key Touch
● Power Supply Mode: AC 110-250V
● Output Power: 2*25W or 4*15W (Digital power amplifier)
●Audio Inputs one set; Output one set
● RS485: Output one set(Optional)
● Video Player
● Timing output: one set
● Bluetooth: Support
● Installation: 86 standard wire box, front wall
● Product size: 86*86*10mm
● Wire Box Opening Size: 86*86*57mm
NOTES:
● In some country, the FM Radio Function may not works well, because the signal may be affected due to different frequencies in different countries and regions.
● Languages only support
English and Chinese
, please check before your purchase.
● For this device, speaker cable and power cable is not included.
① Use exceed 150-core pure copper speaker cable to connect speakers. Click to get:
200 core
https://www.aliexpress.com/item/4000938426917.html
100 core
https://www.aliexpress.com/item/1005001859469936.html
② Use power cable cord as the amplifier request (two cord).
● If there is any questions about the product or you need our technical support, please contact us.
● Connection Guide:
https://youtube.com/playlist?list=PLo58qiwgS__xBYHIQWNrVbSPphvJ4VDB8
PACKAGE INCLUDED:
1 x wall amplifier device
1 x remote control
1 x mounted box, bracket and screw
