Model Number:G22110408 Maximum Power Per Channel:NO POWER Origin:Mainland China Certification:CE Amplifier Class:D Type:Board Condition:New

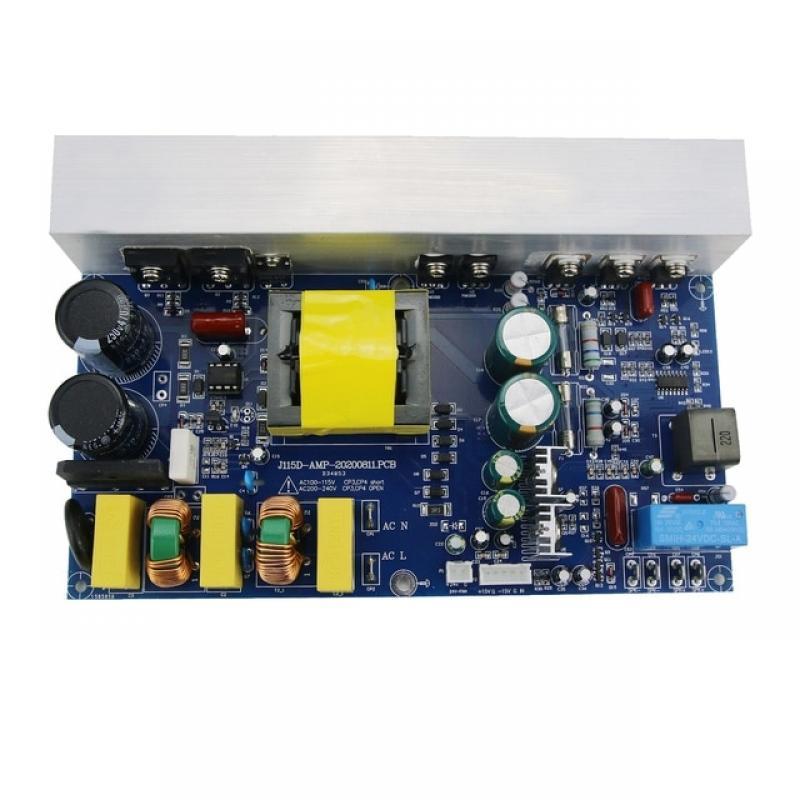

Description Class D High Power Amplifier Board Mono Power Amp Board Peak 1000W with Switching Power Supply Features: - Power supply AC220V, which can also be set to AC110V - Its power is very large, and the heat needs to be added to the fan. From the digital power amplifier part on the right to the switching power supply part on the left - Temperature protection: When the temperature of heat sink rises to 85°C, its protection will start automatically, and the power amplifier will stop working. After the temperature of the heat sink drops, the power amplifier automatically starts to work - Overload protection: once it is overloaded, the board will protect your device - Speaker protection: its output has DC, and relay will be disconnected to protect the speaker - Anti-shock: NTC thermistor is installed to prevent surge current - Start-up relay delay start - Size: 200 x 130 x 42mm/7.9 x 5.1 x 1.7" Package Included: - 1 x Mono Power Amplifier Board
