Polar Patterns:Omnidirectional
Package:Yes
Communication:Wireless
Model Number:iRay UW10
Set Type:Transmitter Sets
Transducer:Condenser Microphone
Use:Home Studio
Style:Lavalier Microphone
Origin:JP(Origin)
Certification:CE,RoHS
Portable Audio & Video:Microphones
Microphone for pc:Wireless microphone
Microphone lapel:wireless lapel
Microphone for mobile:mini microphone
Microphone for phone:microphone for computer
microphone for blogger:Microphone for cell phone
microphone for radio:Professional microphone
Professional wireless microphone:microphone for youtube recording
Wireless lapel microphone:Wireless guitar transmitter
youtube premium:tiktok

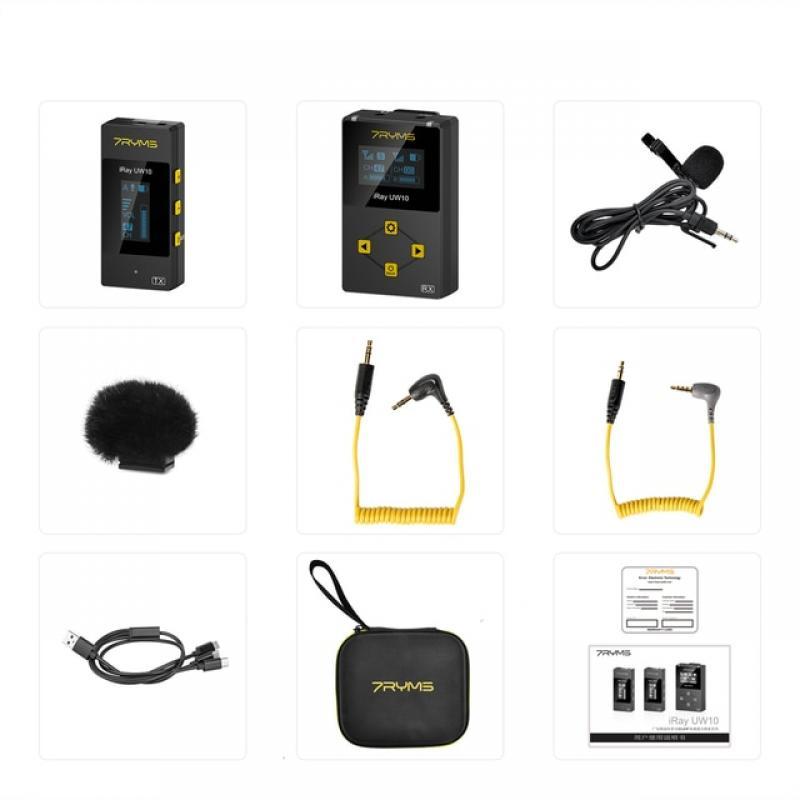

iRay UW10 Broadcasting-Level Multi-functional Mini UHF Wireless Microphone
Main Features
1.Dual-channel UHF Wireless Microphone, Mini and Portable
2. Internal and External MIC Two Input Modes
3. Built-in Antenna, Working Distance is Up to 50m
4.24 Channels Used for Multi-receiver Monitoring and Shooting
5. Support Manual/Auto Pair and Screen Flip
6. Visual Power, Volume and Audio Dynamic Display Bar
7. Muting, M/S Switch and 4-level Adjusted Gain Control
8. Special Anti-loose Design for External Mic, Stable to Use
9. Designed with Multi-functional Belt Clip and Compact
Specifications
Transmitter (TX)
Group A Wireless Frequency 541.125MHz ~ 546.875MHz
Group B Wireless Frequency 547.125MHz ~ 552.875MHz
Transmitting Power 15dBm
Channels 24 x 2
Antenna PCB Antenna
Polar Pattern Omnidirectional
Frequency Response 80Hz ~ 20kHz
Sound Pressure Level 100dB
Signal/Noise 70dB
Equivalent Noise 24dBA
Sound Delay
Audio Distortion
External Mic Input Interface 3.5mm TRS
Battery Li-ion Battery 440mAh 3.7V
Battery Life 4 Hours
Net Weight 27g
Dimension 28 x 25 x 60mm
Operating Temperature 0℃ ~ 50℃
Storage Temperature -20℃ ~ 60℃
Receiver (RX)
Group A Wireless Frequency 541.125MHz ~ 546.875MHz
Group B Wireless Frequency 547.125MHz ~ 552.875MHz
Channels 24 x 2
Antenna PCB Antenna
Receiving Sensitivity -90dBm
Signal/Noise 70dB
Equivalent Noise 24dBA
Sound Delay
Audio Distortion
Audio Output Interface 3.5mm TRS
Monitor Interface 3.5mm TRS/TRRS
Battery Li-ion Battery 500mAh 3.7V
Battery Life 4 Hours
Net Weight 36g
Dimension 40 x 22 x 64mm
Operating Temperature 0℃ ~ 50℃
Storage Temperature -20℃ ~ 60℃
Notice
. The product belongs to high-precision instruments, please avoid falling, collision or pounding
. Do not use the equipment in the vicinity of heat source or interference source, such as radiator, oven, refrigerator or air conditioner
. Do not use the equipment in rain or in the damp environment to avoid short-circuit danger
