Camera Equipped:No
State of Assembly:Ready-to-Go
Compatibility:All Compatible
Origin:Mainland China
Certification:CE,RoHS

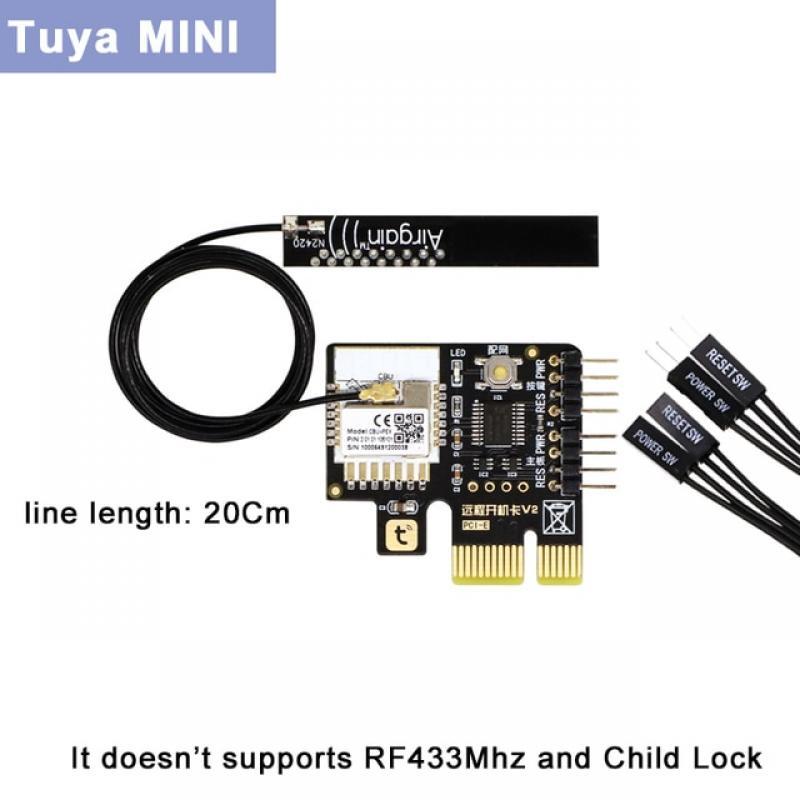

Wifi Switch for Desktop Computer
1. Easy Installation
Standard PCIe port, work with most destop computer. Install to use, don't need any driver software.
2. App Remote Control
Control your computer on Tuya App anytime any where. Always know the computer status on App.
3. Wifi+Bluetooth
"Tuya MINI" and "Tuya PRO" Card support wifi and bluetooth connection. When wifi is disconnected, you can still control your PC on Tuya App through bluetooth connection, don't need any setup.
4. Voice Control
Work with Alexa Echo, Google Home Assistant, Yandex Alice, easy to control your PC with simple voice command.
5. Timer and Schedule
Set a timer to power on/off, or make a weekly schedule to power on/off the computer, automate your PC.
6. Reset And Force Reset
Not only "Power on/off" function, it also support "Reset and Force Rest" function, avoid harm to your computer system.
7. Child Lock (only "Tuya PRO" support)
Make the PC Button out of function, never worry about sudden shutdown caused by kids or mistaken touch, avoide important date loss.
8. 433RF Remote Control (only "Tuya PRO" support)
Hard to reach the computer power button? The "Tuya PRO" card come with a 433 Remote Control, just put it on the table or anywhere you want.
9. Relay Status (only "Tuya PRO" support)
You can set the computer to power on or keep power off status, when power up again after power failure.
How to install?
Step 1,find Power SW cable and Reset SW cable on mainboard,then pull out them.
Step 2,fix APP remote computer module in free PCIE.
Step 3,Insert the previously pulled out Power Sw and Reset Sw wires into the corresponding positions of the boot card, and insert the Power Sw and Reset Sw wires of the boot card into the corresponding positions of the motherboard.
Remote Control
You can download the"TeamViewer" software to transfer data at anytime and anywhere.
ATTENTION:
If the computer turn on automatically after it's turned off. Here are the solutions:
1. On computer, go to WINDOWS settings and "Power Options", change the option "When Press on Power button“ to "Shut Down".
2. On computer, go to WINDOWS settings and "Power Options", enable the option "turn on fast startup".
3. On computer, go to BIOS settings / Anvanced / APM Configuration, change the option "ErP Ready" to "Disabled" status.
4. If your computer use "Wake on Lan", please close it.
How to connect the 433 Remote Control with "Tuya PRO Card"?
1. In Tuya App, open the "RF study" function in device setting of the card.
2. Short Press on the Remote Control, connection succeeded.
How to disconnect the 433 Remote Control with "Tuya PRO Card"?
Long press the "Reset Button" on computer case, you will hear "di", "di", "di-di", "di-di-di", "di-di-di-di", release the button
When hear "di-di-di-di", then all 433 Remote Control connection is deleted.
Q&A
1. The manual power button on PC case can work or not after installing this card?
Yes, the power button on PC case and App can be used at the same time.
2. Can I use the App to control PC when I'm out for vacation or bussiness?
Yes, the app will work on 2/3/4G mobile network. You can control PC by app anywhere.
3. Can I control PC on App through bluetooth connection when wifi router is offline?
Yes, when wifi is offline, just need to open the phone bluetooth, then you will be able to control the PC on App.
4. Can it support "Voice Control"?
Yes, it support voice control through Alexa, Google Home and Alice.
5. Does it need a gateway or hub?
No, it can be connected with wifi router directly. Don't need any gateway or hub.
6. Can it work with laptop? Do you have similar product for laptop?
No, only for desktop computer. We don't have similar product for laptop for the moment.
7. What's the battery type of 433 Remote Control? Does battery include in package?
Battery type: CR2032, 1pcs. the batteries are not included in the package due to shipping limits.
