Video Capture Resolution:720P HD
Operator Skill Level:Beginner,Intermediate,Expert
Indoor/Outdoor Use:Indoor-Outdoor
Camera Mount Type:Other
Controller Mode:MODE2
Model Number:Meteor 85
Certification:3C
Flight Time:4-6mins
Controller Battery:Not Included
Control Channels:4 Channels
Warranty:30 Days
Warning:no
Plugs Type:USB
Charging Voltage:7.4V
Power Source:Electric
Charging Time:about 60 minutes
Remote Distance:100m
Remote Control:Yes
Type:HELICOPTER
Aerial Photography:No
Package Includes:Original Box,Camera,Batteries,Remote Controller,Charger,USB Cable,Operating Instructions
Material:Plastic
State of Assembly:Ready-to-Go
Features:App-Controlled,FPV Capable
Origin:Mainland China
Recommend Age:12+y,14+y,6-12y
Battery:BT2.0 450mAh 2S 30C Battery

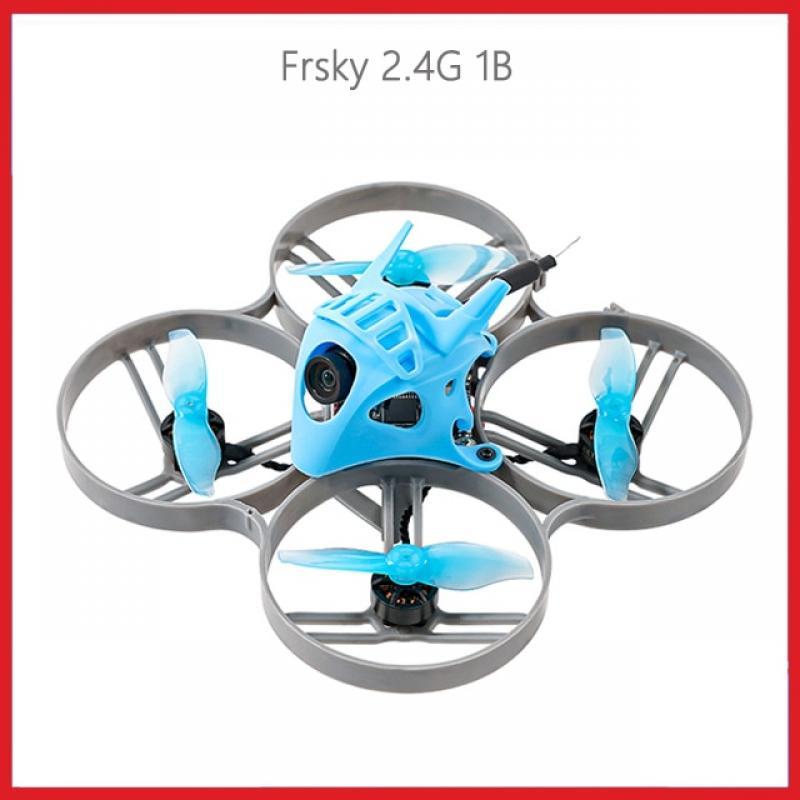

BETAFPV Meteor85 Brushless Whoop Quadcopter Drone Frsky/ELRS 2.4G 2S Lipo F4 12A FC 11000KV Motor For FPV Freestyle Drone 2022
Meteor85 brushless whoop quadcopter, optimized weight, provides a smoother flight experience that's easier to control at high speed and easier on battery life as well. This new Meteor85 (2022) has been upgraded from its frame, canopy, props, battery, flight controller, and camera, offering pilots up to 7 mins flight time and stable flying for freestyle tricks.
With the combination of those electronics and parts, it reaches the best balance between performance, weight, durability, and premium build design.
Bullet Point
A new era of 2S whoop, Meteor85 could fly real acro, like a larger quad, but is still safe enough, light enough, and durable enough to fly anywhere, especially suitable for racing.
New frame
with the low profile of the battery slot, the drone's gravity center is reduced and improved the sense of compactness, perfectly enhancing the trust-to-weight ratio. It is durable and light enough with a weight of 43.85g, giving pilots a good balance of weight and a nice punch on a 2S battery.
Featuring an upgraded propulsion system and a larger capacity battery. Meteor85 uses
GF 2015 2-Blade props
with
1103 11000KV motors
, which gives full play to the efficiency of the power. Combined with a
450mAh 2S battery
, it can fly up to 7 mins flight time.
Built-in 2g ultralight weight Caddx Ant camera. This camera has a good performance for FPV whoop drones.
Adopt with injection molding technique, this
canopy
is 2.50g ultralight weight and is more durable, anti-ruin, and heat-resistant, providing good protection for the whoop drone.
Reserve solder pads for the external receivers with UART1 and UART2 on
F4 1-2S 12A FC board
. The SPI ELRS 2.4G and SPI Frsky version can be used as PNP quadcopter.
Specification
Weight: 43.85g (without battery)
FC:
F4 1-2S 12A FC (2022)
Motors:1103 11000KV with connector
Props:Gemfan 2015 2-Blade Propellers
Camera: Caddx Ant Camera
Camera Adjustable Angle: 0-45°
Frame:Meteor85 Brushless Whoop Frame
Canopy: Micro Canopy for HD Camera
Receiver Option: ELRS 2.4G, SPI Frsky
VTX:
M03 25-350mW VTX
Battery:450mAh 2S Battery
Flight time: 7 mins
Video for Meteor85 (2021)
Meteor Series
This is the new Meteor85 Analog VTX version with a new design
frame
that features a low profile of battery slot height, perfect for a
2S 450mAh battery
, and comes with a new
micro canopy
for good airflow to decrease heat, and a new
F4 1S 12A flight controller
, supporting SPI ELRS 2.4G, and SPI Frsky. The SPI ELRS 2.4G and SPI Frsky versions also support external receiver and so can be used as PNP. The propulsion system, upgraded by adopting
GF 2015 2-blade props
with
1103 11000KV motors
becomes more powerful and maneuverable for freestyle tricks. For pilots who want to fly a 2S HD whoop drone,Meteor85 HD digital VTXis a good choice.
BETAFPV upgraded all Meteor Series quadcopters like Meteor65, Meteor65 Pro, Meteor 75, and Meteor85 whoop quadcopters, through the new flight controller, motors, camera, frame, canopy, etc, to provide the best whoop drones for pilots.
Flight Controller
The latest
F4 1-2S 12A flight controllers
are applied to all BNF versions of Meteor85. Both SPI ELRS 2.4G and SPI Frsky can be used as PNP due to extra solder pads for the external receiver. The SPI Frsky version also can be switched to the Futaba SFHSS protocol through the Betaflight configurator. The ESC on the new board powered by BB51 hardware comes with Bluejay 48k ESC firmware, allowing
1103 11000KV motors
to give full play to the efficiency of power. We update the gyro to BOSH BMI270 for better performance and stability since the new F4 1-2S 12A FC.
Note: F4 1-2S 12A AIO SPI ELRS 2.4G comes with the default firmware betaflight_4.3.1_BETAFPVF4SX1280, which supports ELRS V2.0. ONLY the Betaflight firmware 4.3.0 and up start to support this BMI270 gyro. Please check the below link to download the firmware
.
Motors & Propellers
Equipped with
1103 11000KV Brushless Motors
and
Gemfan 2015 2-blade props
. 1103 motors are designed for 2S quadcopters with incredible power, smooth and quiet operation, and light enough. Meteor adopts 2015 2-blade props, which are lighter and durable enough, offering pilots a high-efficiency flight experience.
New Design for Frame and Canopy
The new
Meteor85 whoop frame
features a low profile of battery slot for a better trust-to-weight ratio and is perfect for
BETAFPV 450mAh 2S battery
. This design makes Meteor85 free from the battery strap and can protect the battery while the drone is landing. Using
BETAFPV Micro Canopy for HD Camera
, this canopy sports a hollow-out design, it allows more air to flow, greatly reducing the influence of heat on electronic parts. It can be also used for M03 Analog VTX. With an improvement in trust-to-weight ratio, pilots can fly real acro and enjoy the convenience, safety, and speed of a whoop-sized frame.
Camera & VTX
A customized Ant micro analog FPV camera is also provided on Meteor85 Brushless Whoop Quadcopter, which brings high-quality video and low RF interference. In addition, M03 25-350mW VTX is a high-quality 5.8GHz VTX including 25mW, 100mW, 200mW and 350mW. With 350mW output power, pilots can fly drones up to 600 meters away to explore more possibilities and fun.
Props out
The Meteor85 drone comes with "props out" in default. Why do we need "props out" direction?
Default Betaflight props direction, quadcopter dips, and "washes out" in hard corners. With reversed props or "props out", no more dipping even in hardest cornering.
Recommend Parts
Radio Transmitter: LiteRadio 3 Pro, LiteRadio 3, LiteRadio 2 SE
Goggles: VR03 FPV Goggles, VR02 FPV Goggles
Battery: 450mAh 2S Battery
Props: Gemfan 2015 2-Blade Propellers
Frame:Meteor85 Brushless Whoop Frame
Canopy:
Micro Canopy for HD Camera
Sticker: BETAFPV Waterslide Decals
Package
1 * Meteor85 Brushless Whoop Quadcopter (2022) ELRS 2.4G or SPI Frsky
1 * 450mAh 2S 45C Battery
1 * Type-C to SH1.0 Adapter
1 * SH1.0 Cable
3 * Decorative Parts
4 * Gemfan2015 2-Blade Propellers
Note: Other batteries are as your choose! The standard pacakge is with only one battery.
