Origin:Mainland China
Features:
1.

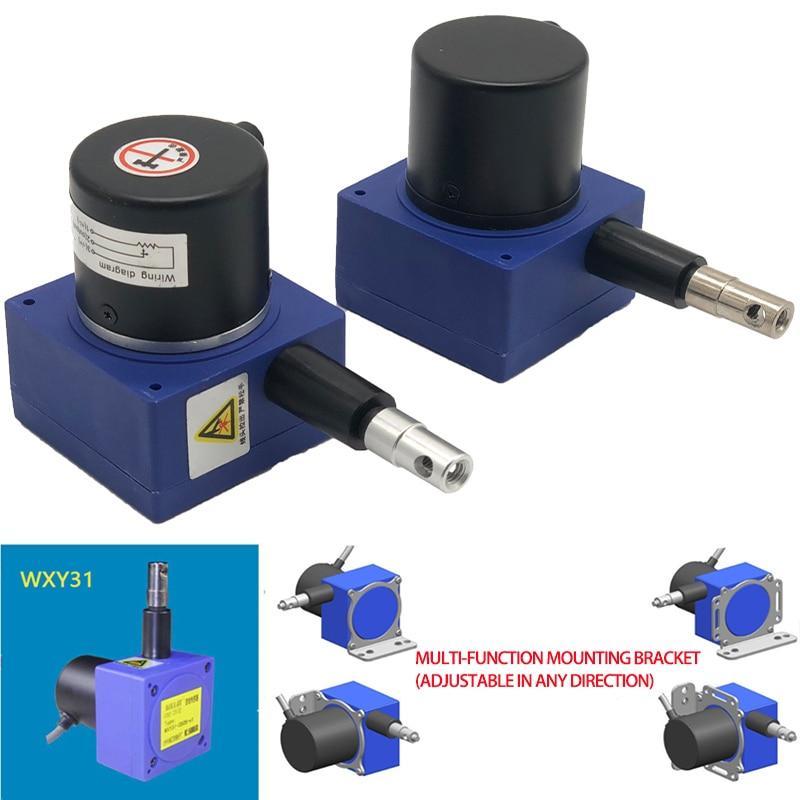

According to the customer's requirements, the shell of this pull wire sensor is made of military plastic material, which is heat-resistant, insulating and anti-interference.
2.
Small shape and structure, the maximum measuring range can reach
1200mm (optional within the range)
3.
Multifunctional mounting bracket (
360°rotation front and rear) can be installed in any direction
4.
The non-clamping structure solves the common defects of similar products in the market, and the running speed
can reach
1.5m/S
.
Technical parameters :
Valid range:
0-50.80.100.150.200.250.300.350.400.450.500.600.700.800.900.
1000.1100.1200mm
Comprehensive accuracy
:±0.02%FS
,
±0.05%FS
,
±0.1%FS
Resolution
:
Analog
: theoretically infinitely small, digital: 0.2 0.1 0.05 0.04mm,
etc. optional
Outlet mode :
straight line lead mode,
five-core aviation plug-in connector
Output signal :
0-20mA, 4~20mA
,
0-3.3V, 0~5V
,
0~10V
,
resistance value
,
encoder
(pulse type)
Working voltage
:
0~ 32VDC
( according
to electrical requirements)
Working temperature
:
-30~85℃
Vibration resistance
:10g(5…2000 Hz)
Shock resistance
:50g(11 ms)
Displacement speed
:≤1m/s
Pull wire diameter
:
Φ0.6 Φ0.7 Φ1mm
Stretch force
: 3-5N optional
Insulation resistance
:≥100MΩ (50VDC)
Shell material
:
military alloy plastic material
Protection class
:IP60 IP65 optional
