Special Features:Bluetooth
Hardware Version:V1.5
Origin:Mainland China
Item Type:Code Readers & Scan Tools
Certification:NONE
Features:
Hardware: V1.5
High compatibility, support app
Connection type: by BT
Paired password: 0000 or 1234
Supported System: Android, Windows
Supported Protocol:
SAE J1850 PWM (41.6Kbaud)
SAE J1850 VPW (10.4Kbaud)
ISO9141-2(5 baud init, 10.4Kbaud)
ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
ISO14230-4 KWP (fast init, 10.4 Kbaud)
ISO15765-4 CAN (11bit ID, 500 Kbaud)
ISO15765-4 CAN (29bit ID, 500 Kbaud)
ISO15765-4 CAN (11bit ID, 250 Kbaud)
ISO15765-4 CAN (29bit ID, 250 Kbaud)
Compatible software:
Window version: ScanMaster-ELM, ScanTool.net, PCMSCAN;
Android version: Torque, OBD Car Doctor, Mini OBD, DashCommand, EOBD;
Symbian version: OBDScope.
Specifications:
Operating Voltage:9V-16V
Working current: 35mA
Operating temperature: -40-85℃
Product size: 6.5 * 4.5 * 2.5cm
Package size: 10 * 6.5 * 2.5cm / 3.9 * 2.6 * 1in
Package weight: 50g / 1.8oz
Package List:

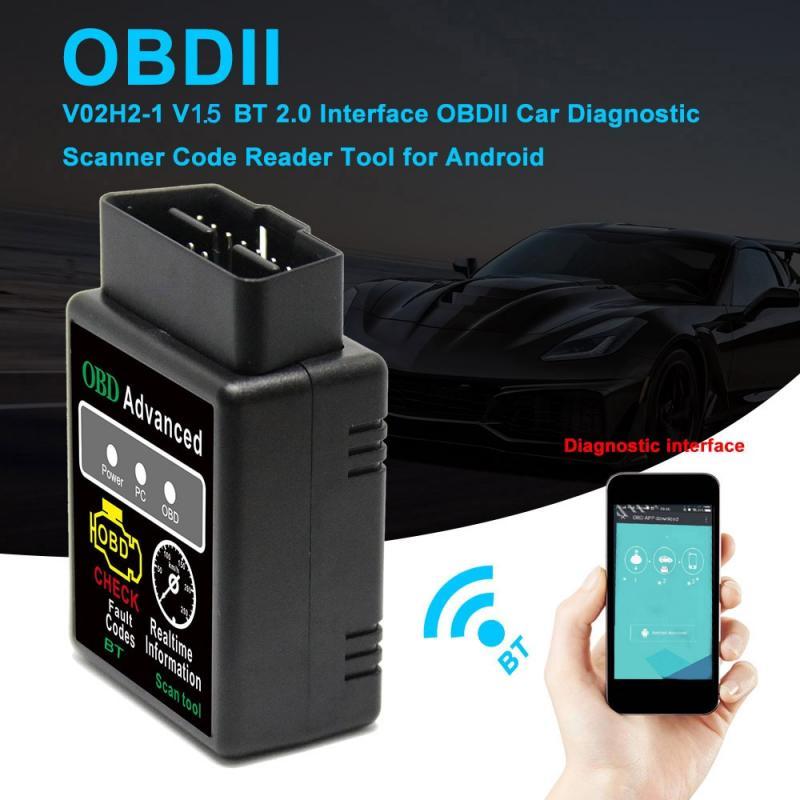

1 * OBDII Diagnostic Scanner
