Software Update:Yes Language:English,French,German,ITALIAN,Portuguese,Russian,Spanish Software Version:2022 version Origin:Mainland China Item Type:Code Readers & Scan Tools Certification:CE Item name:LAUNCH CR3001 Update:Lifetime Free upgrade LAUNCH CR3001 Warranty:1 Year free warranty Screen:1.77 inch TFT 320*240 dpi Screen Item Weight:0.3kg Voltage Range:9-18V LAUNCH CR3001 Function 1:Full OBDII/EOBD function LAUNCH CR3001 Function 2:Read Freeze Frame, Read Data Stream LAUNCH CR3001 Function 3:O2 sensor test , ON-Board test LAUNCH CR3001 Function 4:Read Vehicles information , Evap system(mode$8) LAUNCH CR3001 Function 5:Turn Off Engine Warning Light LAUNCH Creader 3001 Function 6:Live Data Viewing LAUNCH Creader 3001 Function 7:DTC Loookup Update Method:Lifetime Free update via official website
Know Before You Buy
* It is only for 12V 16PIN OBD2 car, please check does your car meets the OBD2/EOBD protocol.
* Only for Engine system check, does not support other car systems.
100% Original and High Quality
LAUNCH is a leading brand in the automotive diagnostic industry, We are LAUNCH official authorized store, 100% original and High quality
LAUNCH Creader CR3001 OBD2 Scanner, Engine System Check, Engine Fault Code Reader Mode 6 CAN Diagnostic Scan Tool for All OBDII/EOBD Protocol Cars, Lifetime Free Update
Multi-Language of CR3001
English, French, Russian, Spanish, German, Italian and Portuguese
Have you ever encountered such a problem ？
1. What's wrong ?
2. Spending a lot of time and money to clear the engine fault light.
3. Serious environmental pollution.
4. Increased fuel consumption
5. Increased in temperature
6. Engine oil burner
7. Increase engine noise
Why Choose LAUNCH CR3001 ? Except for auto repair shop, Here is another choice for you to learn about your car condition deeply. Accurate and faster.
【Read and Clear Codes】LAUNCH CR3001 obd2 scanner read and clear fault codes for engine system. In addition, Creader 3001 built in fault codes definition lookup library. LAUNCH Creader 3001 obd2 scanner works on most 1996 and newer US-based vehicles that are OBDII compliant (OBDII protocols: KWP2000, ISO9141, J1850 VPW, J1850 PWM and CAN).

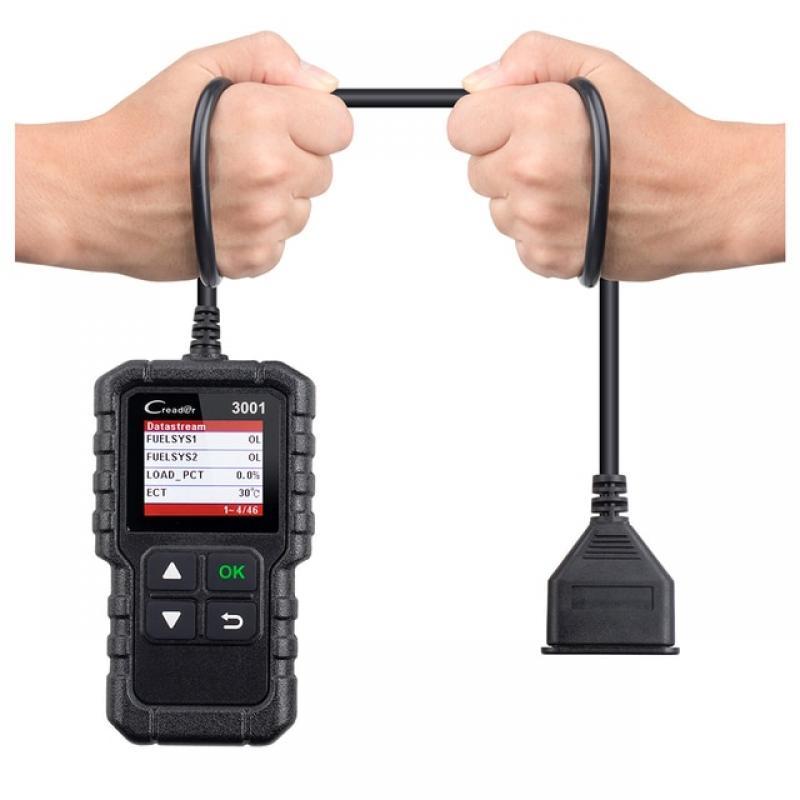

【PLUG AND PLAY" scan tool】equipped with a 2.5 feet long cable and made of a very thick flexible insulator, very easy to use for beginners.
【 I/M Readiness Status Test】You can use this obd2 scanner to check the status of emission-related monitors misfire system and fuel system, make sure the monitor was set before taking it to smog, help you pass the Smog Check easily, save your money for paying fine tickets.
【Check Engine Light and Identify VIN information】Turns off the MIL, if you finished repairing the faulty components, then clear the fault codes and turn on the vehicle ignition, it is surprise that you will find the check engine light is off. And more, LAUNCH Creader 3001 obd2 scanner can read the car's information such as VIN number.
【View Freeze Frame/Live Data Stream/ O2 Sensor/ Evap System test/ On-Board Monitor Test】LAUNCH Creader 3001 is one useful and economic OBD2 FULL FUNCTION automotive diagnostic tool, support read live data for engine system, quick detecting vehicle failures, saving you the trips to your mechanic.
【Cover More car models】LAUNCH CR3001 covers more models, support up to 2021 year, including SUVs, minivans, light-duty trucks, ect
【One key to set the language】LAUNCH CR3001 can set the language to English, French, Russian, Spanish, German, Italian, Portuguese with one key.
【Lifetime Free online upgrade】Get the upgrade tool on LAUNCH official website, keep CR3001 software up to date and solve more bug.
LAUNCH Creader 3001 VS. Others
LAUNCH CR3001 Supports All OBD-II protocols
1. SAE J1850 PWM (41.6Kbaud)
2. SAE J1850 VPW (10.4Kbaud)
3. ISO9141-2 (5 baud init, 10.4Kbaud)
4. ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
5. ISO14230-4 KWP (fast init, 10.4 Kbaud)
6. ISO15765-4 CAN (11bit ID, 500 Kbaud)
7. ISO15765-4 CAN (29bit ID, 500 Kbaud)
8. ISO15765-4 CAN (11bit ID, 250 Kbaud)
9. ISO15765-4 CAN (29bit ID, 250 Kbaud)
LAUNCH CR3001 Engine Check including:
1. Reading Codes
Show the detailed description of the Diagnostic Trouble Code (DTCs)
2. Erasing Codes & Reset:
Turns off Check Engine Light (MIL), clears codes and resets monitors.
3. Data Stream
Reads and displays live ECU/PCM data stream, plotting functions graphically and stores freeze frame data.
4. I/M Readiness Status:
Shows whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing.
5. Read Live Data Stream
Show the information of continuous data stream from a vehicle in live graphic (waveform) display.
6. View Freeze Frame Data
Check the certain vehicle conditions which are recorded by the on-board computer at the time the emission-related fault occurs.
7. O2 Sensor Test
Allows retrieval and viewing of O2 sensor monitor test results for the most recently performed tests from the vehicle’s on-board computer.
8. On-Board Monitor Test
Retrieves and displays test results for emission-related powertrain components and systems.
9. Read Vehicle Information
Display the information such as VIN (Vehicle Identification Number), CID (Calibration ID) and CVN (Calibration verification number), etc.
10. Component Test
Certain vehicle components can be actuated by commands sent from the scanner to test their operability
Turn Off ''Check Engine'' Light:
Parts might cause your check engine light on include:
1. Gas Cap
2. Oxygen Sensor
3. Air Fuel Ratio Sensor
4. Mass Air Flow Sensor
5. Ignition Coils
6. Spark Plug Wires
7. Spark Plugs
8. Thermostat
9. EGR Valve
10. Evaporatative Emission Canister Purge Valve(EVAP)
11. Catalytic Converter
If the engine light is not turned off in time
It will cause serious environmental pollution , Increased fuel consumption,Increased engine noise.Increased in temperature, ect
LAUNCH CR3001 Interface Function Display
LAUNCH X431 CR3001 Function Display
DTC Loookup
Launch Creader 3001 car diagnostic tool built-in OBD-II DTC look-up library, clicking on the error code directly for definition, displaying the error code and its meaning, saving time for you to looking for the meaning of DTC on the internet.
MODE 6: On-board Monitor Test
Retrieves and displays test results for emission-related powertrain components and systems. Which is a way to find out if the engine has any misfire or compression problems on a particular cylinder, or other data that might indicate a problem but isn’t severe enough to trigger a check engine light.
MODE 8: EVAP Test
The EVAP test function lets you initiate a leak test for the vehicle's EVAP system, that prevents fuel from evaporating out of your tank and contributing to smog. After fixed a problem with the fuel system, you can verify your fix right away, without waiting a few days (or longer) for your car to run it automatically.
Lifetime Free Update of LAUNCH CR3001
If the product displays a white screen or cannot support your car, you can solve it by upgrading
Support Update System: compatible with Windows XP, Windows 7, Windows 8 & Windows 10
Update Website: https://eninfo.x431.com/prod_view.aspx?TypeId=68&Id=263&FId=t3:68:3
Support Car Models for OBDII diagnostic function
Please Note: CR3001 only supports 12V Gasoline & Diesel Engine System check
Not electric and hybrid cars and 24V trucks
Not Support Russian Cars before 2012, VAZ,UAZ,LADA ;
For Renault, SsangYong, please contact us before purchasing.
American Car:
Need Standard OBD2 Protocols from 2000 to now.
for Chrysler , for Ford, for GM, For Jeep ...
European Car :
Need Standard OBD2 Protocols from 2003 to now.
For Alfa romeo , for SAAB ,for Acura , for Opel , for Audi for Seat , for Peugeot , for Renault
For Bentley , for Skoda , for Daewoo , for Benz , for Daihatsu , for Land Rover , for BMW , for Vauxhall , for Citroen , for Volvo , for Fiat , for VW , for Ford , for Jaguar...
Japanese/Korean Car:
Need Standard OBD2 Protocols from 2006 to now.
for KIA, for Isuzu, for Honda , for Mitsubishi, for Hyundai , for Dacia , for Lexus , for Mazda, for Nissan, for Subaru , for Suzuki, for Toyota...
Chinese Car:
Need Standard OBD2 Protocols from 2009 to now
Great Wall, Huachen, Geely, DF Honda ,Lifan, ect ...
Warning Notice
Even though it compatible with most cars, but different regions support the vehicle OBD2 protocol at different times, or some car is special design, so it may not compatible with some cars which do not support OBD2 protocol. Especially Japanese and Korean car brand.
Plug and Play
1. Plug into Car's OBD2 Port.
2. Enter into main Menu
3. On-Board Monitoring
4. Read Vehicle Information
Register and Update:
Please follow the steps below to perform registration and update:
1. Visit http://www.x431.com/CR3001 to enter the product details page.
2. Click “Update Tool” to download it.
3. Unzip and install it on your PC (compatible with Windows XP,
Windows 7, Windows 8 & Windows 10).
4. After the installation is complete, connect one end of the USB cable to the USB port of the PC and the other end to the tool.
5. Once the tool is powered up, launch the update tool on your computer, the system starts reading the tool.
Once it obtains the tool information, it will directly navigate to the update center.
6. Click "Upgrade" to start updating until the update is complete
Update Videos
Specifications:
Screen：1.77 " TFT, 160*128dpi
Voltage Range: 9-18V
Operating Temperature: 0℃ -50 ℃ (32 ℉ -122 ℉ )
Environment Temperature: -20 ℃ -70 ℃ (-4 ℉ -158 ℉ )
Dimension : 118mm*68mm*22.3mm(4.65" *2.68 " *0.88 " )
Weight:
Packing list of Launch CR3001
1PC * LAUNCH CR3001
1PC * USB Cable
1PC * English manual
FAQ:
System halts when reading data stream. What is the reason?
It may be caused by a slackened connector. Please turn off the tool,firmly connect the connector, and switch it on again.
There is no response when communicating with on-board computer.
Please confirm the proper voltage of power supply and check if the throttle has been closed, the transmission is in the neutral position, and the water is in proper temperature.
Why are there so many fault codes?
Usually, it's caused by poor connection or fault circuit grounding.
Does it support read and clear ABS Airbag error?
No,it only read engine error.
