Electronic:No
Material Type:ABS+metal
Item Weight:0.1kg
Item Height:5inch
Item Width:3inch
Item Length:8inch
External Testing Certification:ce
Voltage:12v
Special Features:Car Circuit Tester
Power:0
Model Name:Car Circuit Tester
Software Version:newest
Hardware Version:latest
Item Type:Electrical Testers & Test Leads
Origin:Mainland China
Certification:CE
quality:superior
warranty:one year
color:as photo
place of origin:china
service:best and timely
shipping:within 48 hours
car model:for all the cars
function:Auto Circuit Tester

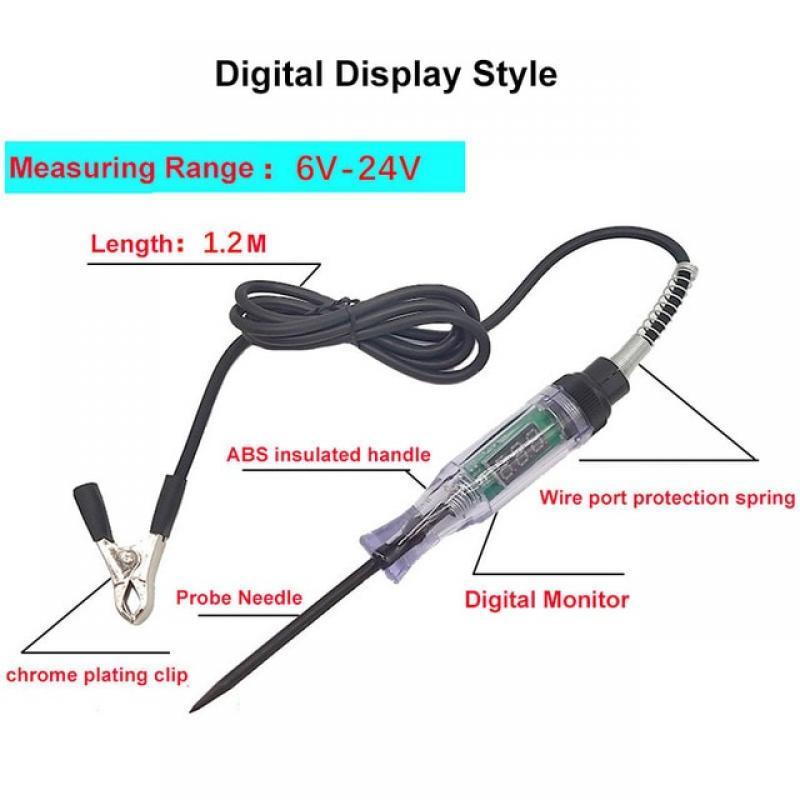

Universal Digital Display Car Truck Voltage Circuit Tester Probe Pen Light Bulb Diagnostic Tool Car Circuit Repair Accessories
Product features:
1. Sharp steel probes can easily pierce wire insulation to check circuits.
2. The probe pen is ideal for checking circuits, fuses, switches and wiring in cars, trailers, boats, motorcycles and other low voltage systems.
3. Ground the alligator clip and test the circuit with a probe. When the light is on, there is electricity.
Product instructions:
1. Clip the measured alligator clip to the ground wire (such as the metal or negative pole of the car)
2. Measure the conductive metal in the test circuit with the needle of the electric pen
3. If the light bulb of the stylus will light up, it means that the measured point has formed a circuit and works normally. On the contrary, there is a fault at the measured point, which is to be checked.
Product Specifications:
Material: ABS+metal
Color as shown
Clamping capacity: 20A
Bulb: 3 watt bulb (replaceable)
Voltage test range: 6v-24v;
Pen Length: 17.3 cm/6.8 inches
Probe Length: 8.3 cm/3.3 inches
Cord length: 96 cm / 37.8 inches
Packing weight: 140g
Caution:
1. Due to the chip update, the working range is 6V to 24V, but the mark on the test pen body shows 6 to 12V, please do not order if you mind;
2. We default you have accepted when ordering. Thank you for your understanding,;
3. Since the world voltage is different, please allow a tolerance of ±1.5V
Product List:
1*Car Truck Circuit Test Pen
