Radio Response Bandwidth:87.5-108 MHz
Out Power:4 x 60W Car Stereo FM Radio
Material Type:Metal +Plastic auto radio 1 din
Item Weight:0.75
Item Size:205mm*167mm*78mm
Model Name:MP3-JSD520 1 Din Car Radio
Resolution:800*480 12V Bluetooth Car Stereo
OSD Language:English
Voltage:12V
Placement:In-Dash
Display Size:2.5"
Origin:Mainland China
Certification:CE
Special Features:Radio Tuner

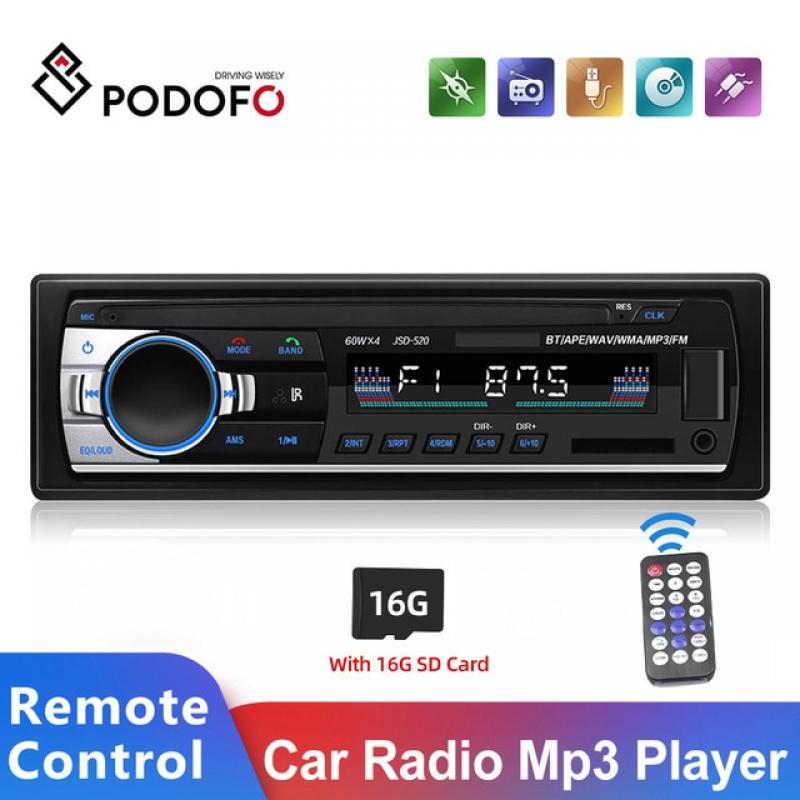

Podofo Autoradio 1 Din Car Radio Stereo Bluetooth FM Aux Input Receiver SD USB JSD-520 12V In-dash 1 din Audio MP3 Multimedia Player Auto Electronics Subwoofer
Bluetooth V2.0 JSD-520 Stereo Autoradio Car Radio 12V In-dash 1 Din FM Aux Input Receiver SD USB MP3 MMC WMA Car audio Player
JSD-520 12V Bluetooth V2.0 USB/SD/AUX Car MP3 Radio Auto Stereo Audio Player MMC Subwoofer Vehicle 1Din FM Receiver Autoradio
Bluetooth V2.0 JSD-520 Stereo Autoradio Car Radio 12V In-dash 1 Din FM Aux Input Receiver SD USB MP3 MMC WMA Car audio Player
Autoradio Car Radio 12V Bluetooth V2.0 JSD-520 Stereo In-dash 1 Din FM Aux Input Receiver SD USB MP3 MMC WMA Car Radio Player
Bluetooth Autoradio Car Stereo Radio FM Aux Input Receiver SD USB JSD-520 12V In-dash 1 din Car MP3 Multimedia Player Radio Car Autoradio 1 Din Bluetooth SD MP3 Player Coche Radios Estereo Poste Para Auto Audio Stereo Carro Samochodowe Automotivo autoradio 1 din car radio JSD-520 car stereo bluetooth audio mp3 recorder usb sd aux input oto teypleri auto radio car player HOT 12V Bluetooth Car Stereo FM Radio MP3 Audio Player 5V Charger USB SD AUX Auto Electronics Subwoofer In-Dash 1 DIN Autoradio autoradio 12V JSD-520 Car Radio Bluetooth 1 din Car Stereo Player AUX-IN MP3 FM radio Remote Control for phone Car Audio Autoradio JSD-520 12V Car Radio Bluetooth 1 din Stereo radios AUX-IN FM/USB/Receiver MP3 Multimedia Player Car Audio 1 Din JSD-520 Bluetooth Radio SD MP3 Player Car Radios Stereo FM/USB/radio remote control For phone Car Audio Autoradio Car Radio 12V Bluetooth V2.0 JSD-520 Stereo In-dash 1 Din FM Aux Input Receiver SD USB MP3 MMC WMA Car Radio Player Bluetooth V2.0 JSD-520 Stereo Autoradio Car Radio 12V In-dash 1 Din FM Aux Input Receiver SD USB MP3 MMC WMA Car audio Player
Features:
Bluetooth Specification: V2.0
Supports advanced audio distribution profile
Off time display function
Digital high-quality FM stereo radio
Preset 18 stations ( frequency: 87.5-108 MHz )
Support USB / SD / MMC card reader
Support Audio: MP3 / WMA / APE / FLAC / WAV etc.
MP3 randomized, 10 track up / down playback
Electronic control volume treble, bass, balance and fader
Multiple EQ scene selection: Jazz, rock, pop, classical, etc.
Mute and loud control
L / R RCA audio output jacks
4-channel high power output ( 4 loud speaker )
Support modes: BT / APE / WAV / WMA / MP3 / FM
The remote control battery ( included ): CR2025 3V
Specifications:
FM Radio
Tuning Range: 87.5 - 108.0MHz
Sensitivity: Less than 20db
Stereo Separation: More than 25db
SNR: More than 60db
Power Supply
12V Machine: 11 - 16V
Note:
This machine is 12V machine, not according to the 24V power supply
Audio
Quiescent current speaker impedance: 4 ohm
Frequency Response: 20 - 20000Hz
Fuse Red: 1A
Yellow: 15A
Type: Car MP3 Player
Special Function : FM Radio, Bluetooth, Hands-free calls, MP3 Player, USB flash disk
Output Power : 4 x 60W
Voltage : 12V
Music Source: SD card, 3.5mm stereo headphone jack, Cellphone, Flash drive
Tips: The remote control of the machine does not include a battery, becuase for export and shipping .
Package Include:
1 x JSD - 520 FM Car Radio
1 x Remote Control
1 x Power Wire
1 x Installation Tool Set
1 x User Manual
FAQ:(Car Radio )
Q1.Why the car radio can't turn on ?
1>Please check the Voltage of car radio :DC 12V
2>When you test this car radio,you can combine the red and yellow wires and connect them to the positive side of the power supply.Black line to negative power supply.
3>Replace the same type of insurance to test the car radio.
Note:Please msut use our power cables to connect our car radio,it is not possible to insert the original car plug directly into our machine.
Q2.Why the car radio will show time after we turn off this?
>That time clock is a function for the car radio ,that can't be removed.In fact that car radio had been turn off,it save the time are more convenience for people to see,
>If you didn't need this,you need to unplug the power positive and negative.
Q3.Why haven't sound in car radio when playing the music?
>1.When you are not using our original audio cable, please check if your audio cable is suitable for our camera.
>2.Please check if there is any collision between the lines.
>If the line is connected, there will be no sound when the speaker cable touches the speaker cable.There is also no sound when the power cord touches the speaker cable.
>If the problem still here,please use a single speaker to connect a group of audio cables to test the car radio. The four speaker cables are connected separately to see if there is any sound.
Q4.Why can't search FM?
>1. No radio antenna inserted.
>2. Please check if the radio antenna is plugged in. Please insert more antennas several times to make it well contacted.
>3.The signal of your location is not good. Please go to a better place to test again.
>4.The radio antenna on the car is broken/no effect; please replace the radio antenna and test again;
Q5.Why can't connect the Bluetooth of car radio?
>1.Open the phone settings interface, open the Bluetooth in the Bluetooth function, search for Bluetooth devices, find the player's Bluetooth model to be paired; if you need a pairing code, enter 0000; if not, try 1234 or 123456.
>2.Please try to use another mobile phone to test this function.All methods are correct and still cannot use Bluetooth, Please unplug the plug on the back of the player and plug it in after 3 minutes.
