Radio Response Bandwidth:87.5-108 MHz MP3 Audio Player Car Stereo
Out Power:4 * 45 W One Din Car Player
Material Type:Metal+Plastics Car Radio
Item Weight:0.8kg
Item Size:18.5*9.5*5.6 cm 1 din 4022d Car Radio
Model Name:4022d 4.1 inch 1 Din Car Radio
Resolution:854*480 Auto Audio Stereo Autoradio Bluetooth
OSD Language:Russian
Voltage:12V
Placement:In-Dash
Display Size:4"
Origin:Mainland China
Certification:NONE
Special Features:Radio Tuner
FM:87.5M-108M
Display:4.1 inch digital TFT screen
Remote Control:Without Battery
Steering Wheel Control Remote:Without Battery
Decoding chip::C200S
Voltage::DC 12V
Screen resolution::854*480
Mirror link::Not support
GPS::Not support
Audio format::MP3/WMA/WAV/APE/FLAC
Video format::RM/RMVB/AVI/MP4/MKV/3GP(720P)
Radio Band::FM
Radio Chip::QN8035
Power output:60W
Work temperature::-10℃~60℃
Rear view camera::Optional
Bluetooth name:CAR-BT
Power amplifier chip::TDA7388
Radio frequency::87.5~108MHz
TF Card::Support
GPS Card::Not Support
Picture format::JPG
language::Chinese/English/French/German/Spanish/Portuguese/Russian
AMPrime 4022D 4.1 inch 1 Din Car Radio Auto Audio Stereo autoradio Bluetooth Support Rear View Camera USB Steering Wheel Remote Control(
Without Battery
)
1 din car radio 7" HD Player MP3 Auto Radio no Touch Screen Bluetooth Multimedia USB 1din Autoradio Car Backup Monitor In Da
Car DVDCar Radio 1 din 4022d Car Radio Auto Audio Stereo FM Bluetooth 2.0 Rear View Camera usb aux Steering Wheel Remote Control
4022D Car Portable Radio Music Player with Rear View Camera Support Bluetooth MP5/FM Transmitter Car Video with Remote Control
Please note
Don't worry if the button light is constantly changing, our products support seven colour lights and are on by default, if you don't need this feature you can simply turn off the automatic light change in the settings.
If you have any questions, please contact online customer service! Thanks!
Features
- 4.1 inch digital TFT screen
- With SD / MMC card slot, with USB 2.0 port
- Bluetooth 2.0, support hands-free calls
- 2 way audio output, 1 way video input
- Support high capacity TF card
- Display song words and names
- With rear camera function,the best backup cameras eliminate dangerous blind spots. Protect your car around of kids and little pets.
- 2 remote controls are powered by 2 CR 2025 batteries
- Max support 32G memory card
Description
System:wince
Model:4022D
Size:18.5*9.5*5.6cm
Working Voltage:Dc 10.8V-14.8V
Decoding chip:All wisdom C500
Screen size:4.1 inches
Screen Resolution:800*480
Host depth:85mm
Radio band:FM single band FM1, FM2, FM3
Radio chip:QN8035
FM:87.5M-108M
SD card slot:Mini TF card
Plug type:ISO universal plug
Supported audio formats:MP3/WMA/WAV/OGG/FLAC/APE
Supported video formats:RM/RMVB/MP4/FLV/MKV/3GP/AVI/ASF/SWFMP1/MP2
Image Format:JPG
Sound Non-blance:≤2dB
Channel Separation:≥56dB
Language:Chinese/English/French/German/Spanish/Portuguese/Russian

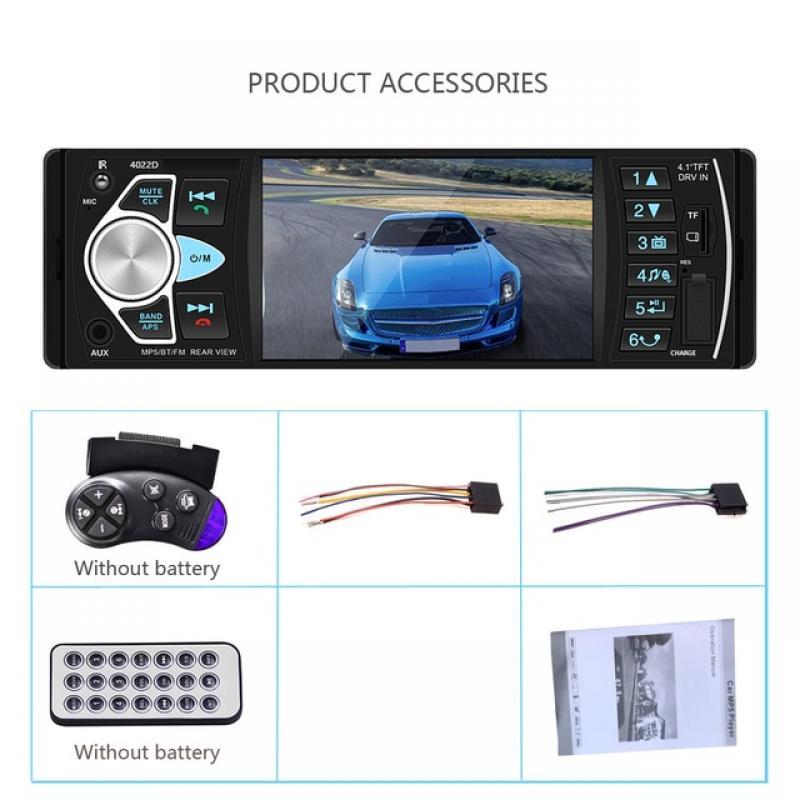

Product included:
1* 4.1 Inch Digital Screen Car Radio
1*Power cable
1*Speaker cable
1*Remote Control（Without Battery）
1*Steering Wheel Control Remote（Without Battery）
1*Rear camera(Optional)
1*User manual
Back Up Camera Easy Installation:
1. Mount the camera to your car's license plate area, back window, or any other suitable place
2. Adjust the lens of the camera to its best position.
3. Connect power wire (red and black) to your vehicle DC 12V power system.
4. Connect the video output (yellow wire) of the car backup camera to the display in your vehicle.
FAQ:(Car Radio )
Q1.Why the car radio can't turn on ?
1>Please check the Voltage of car radio :DC 12V
2>When you test this car radio,you can combine the red and yellow wires and connect them to the positive side of the power supply.Black line to negative power supply.
3>Replace the same type of insurance to test the car radio.
Note:Please msut use our power cables to connect our car radio,it is not possible to insert the original car plug directly into our machine.
Q2.Why the car radio will show "No Signal" when we reversing?
>Please check if the camera's line is properly connected to the car radio.
>Note:The video port of rear camera must insert the "CAMIN" port of car radio.
Q3.Why the car radio will show time after we turn off this?
>That time clock is a function for the car radio ,that can't be removed.In fact that car radio had been turn off,it save the time are more convenience for people to see,
>If you didn't need this,you need to unplug the power positive and negative.
Q4.Why haven't sound in car radio when playing the music?
>1.When you are not using our original audio cable, please check if your audio cable is suitable for our camera.
>2.Please check if there is any collision between the lines.
>If the line is connected, there will be no sound when the speaker cable touches the speaker cable.There is also no sound when the power cord touches the speaker cable.
>If the problem still here,please use a single speaker to connect a group of audio cables to test the car radio. The four speaker cables are connected separately to see if there is any sound.
Note 1:
Due to strict customs inspections, most shipping companies do not support taking packages containing batteries.
In order for you to receive the package quickly, we will remove the batteries of the remote control of the product.
Then we will choose the best and fast logistics way for you.
Please Undertsand.
Note2:
If screen become bule such as below picture？ Please don't worry about it. connect camera way is wrong. Could you please check below picture of connect camera?
There is video :
https://yadi.sk/i/8h4UCMHVh5YyQQ
