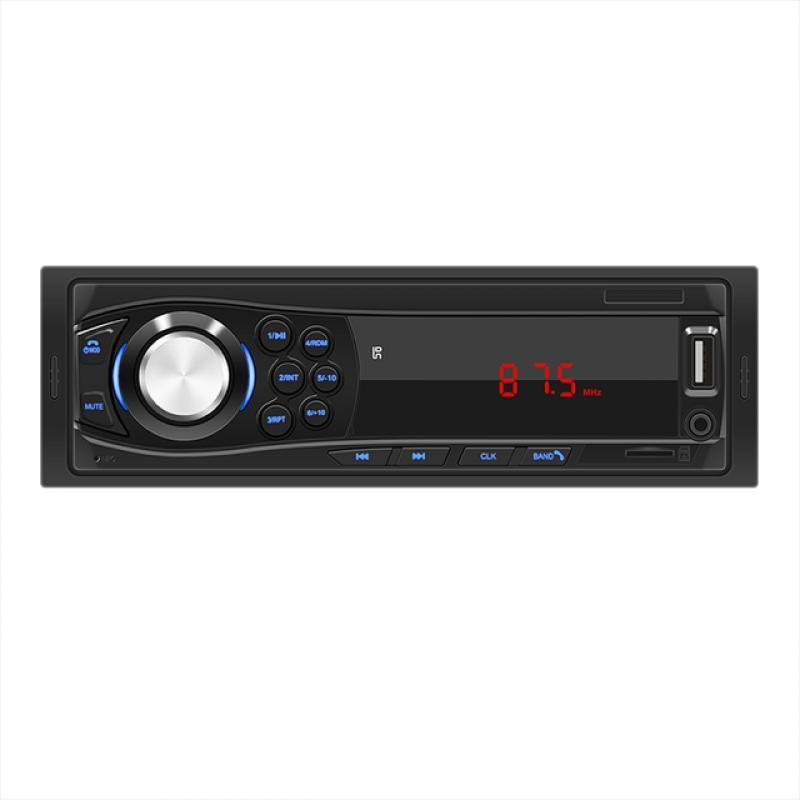

Radio Response Bandwidth:87.5~108MHz Out Power:45W Material Type:Hardware, plastic, electronic components Item Weight:0.32 Item Size:188*55*58mm Model Name:1028 OSD Language:English Voltage:12V Placement:In-Dash Display Size:NONE Special Features:Radio Tuner Origin:Mainland China
Tips:
1.This car multimedia player is compatible with all cars. Please check the Installation Dimension;
2. After receiving the product, please try to check whether the machine is normal, and then install it (testing method: connect red and yellow lines to the positive pole and black line to the negative pole of the 12V power supply). When installing, please be careful not to connect the line incorrectly, so as not to affect the normal use. When connecting speaker wires, pay attention to the positive and negative poles.
Features:
1. FM Radio
2. Support memory cards, and U disks (audio / video)
3. AUX function
4. bluetooth function
Specifications:
Model: 1028
Voltage: 12V
Type: Car Stereo MP3 Player
OS: No
Configuration: No
Software solution: SC3510
Screen type: LED
Screen size: No
Screen resolution: No
Panel size: 188*58mm/7.40*2.28"
Panel light: red light
Color box size: 220*82*181mm/8.66*3.23*7.13"
Host depth: 100mm/3.94"
Single machine weight: 300g
Mobile phone interconnection: No
GPS navigation: No
Radio band: FM
Radio chip: chip integration
Language: No
Power: 45W
Working temperature: -10~60°C
Reversing image function: Not supported
Brake reminder function: Not supported
Steering wheel control function: Not supported
Bluetooth model: CAR BT
Amplifier chip: YD1028
Radio frequency: 87.5~108MHz
Video output: No
Screen mirroring: Not supported
Built-in offline map: No
Mobile phone interconnection: No
Wireless WiFi: No
TF card slot: Yes
GPS card slot: No
Remote control: card remote control
Steering wheel remote control: No
USB interface and version: Front panel USB2.0
Reset button: No
Button: physical button
RCA terminal introduction: 4-channel audio output
Front AUX audio input: Yes
Mobile phone interconnection function: Not supported
DVR function: Not supported
DAB function: Not supported
OBD function: Not supported
TV function: Not supported
DVD movement model: No
4G/3G: Not supported
Logo replacement: Not supported
Supported audio formats: MP3/WMA/WAV/FLAC
Supported video formats: No
Supported image formats: No
Packing List:
1 X Host
1 X Power Cord
1 X Remote Control
1 X Manual
Q&A
Q: Do not turn on, the screen does working
well?
A: Please check whether the power cable of
the machine is connected incorrectly or incorrectly. The normal wiring method
is as follows: the yellow wire (B+) is connected to the 12V cable that is
always active, and the red wire (ACC) is connected to the key cable of the
original car. The method of judging the key cable is as follows: the key cable
is 12V when the car is started and 0V when it is closed; Black connected with
the negative pole; Check for blown fuses at electrical outlets in cars and
machines.
Q: No sound from the horn?
A: Please check whether the horn wire of
the machine is connected correctly. Please connect the horn of the original car
strictly in accordance with the interface definition of the manual or the body
label. Otherwise, the power amplifier chip of the machine may be damaged.
Q: Can't remember the last radio station
and music you set?
A: Please check whether the red and yellow
wires are reversed. Make sure that the yellow wire (B+) is always connected to
the original car cable with 12V voltage, and the red wire (ACC) is connected to
the original car key cable. The key cable is 12V when the car is started and 0V
when it is closed.
Q: Can't read or play SD, USB music and
videos?
A: Please use 8G or 16G storage card or USB
flash drive. Some large-capacity storage devices may not support it. Format the
storage device to ensure that the storage device's file system is the default
value; Partially encoded video or music may not be recognized by the machine,
please use common format media files.
Q: The Bluetooth connection fails, or some
functions are abnormal after connection?
A: Please use your mobile phone to search
for Bluetooth of the machine, the name is "CAR BT" or "CAR
KIT"; Delete the devices that have been paired with but are not connected
to the phone. Some Bluetooth devices that have been paired with each other may
cause the phone's Bluetooth cannot be paired with other devices or its function
is abnormal.
A: The above involves disassembly and
circuit problems, please seek professional operation, so as to avoid damage to
your car.
