Year:2018
Material Type:CNC Precision Machined of High Quality Aluminum and Anodized Silver
Item Weight:1kg
Item Height:0inch
Item Width:0inch
Item Length:0inch

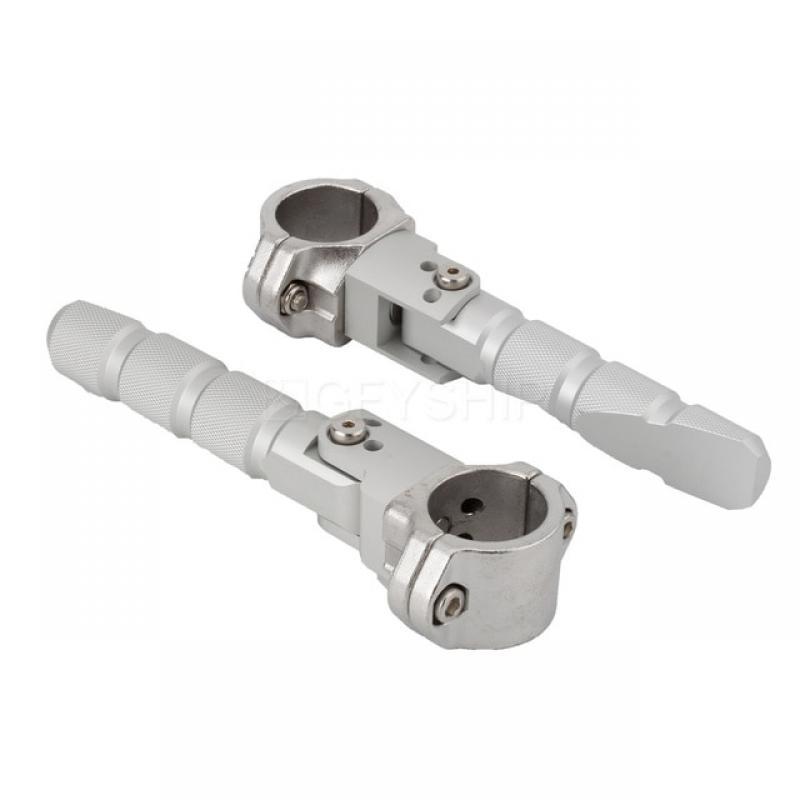

Model Name:Universal Motorcycle Highway Foot Pegs
Origin:Mainland China
Item Type:Foot Rests
Color:Black/Silver
Installation location:Highway Crash Bar
Special Function A:Superior Grip & Maximum Load Distribution
Special Function B:360 Degree Rotation
Special Function C:Faster, smoother body weight transfer
Special Function D:Available For Four Bar Sizes
Special Function E:For the full range of possibilities rotate the clamp
Special Function F:24 Selectable Angles
Special Function G:Can choose what direction your pegs fold up independent of the direction of your bars
Note:When finding your preferred position, ensure you are lining up the holes for the M8 fastener
Application 01:Fit For Motorcycles With 7/8 in / 22 mm diameter bars
Application 02:Fit For Motorcycles With 1 inch / 25 mm diameter bars
Application 03:Fit For Motorcycles With 1 1/8 inch / 27 mm diameter bars
Application 04:Fit For Motorcycles With 1.25 in / 31.75 mm diameter bars

NOTES: During installation, it may be helpful to sit on your motorcycle in order to discover the most comfortable position. When finding your preferred position, ensure you are lining up the holes for the M8 fastener. Item Specific: Aftermarket 100% New High Quality Construction Material: CNC Precision Machined of High Quality Aluminum Description: Our Universal Highway Foot Pegs are CNC machined from 6061-T6 aluminum billet and feature a deep knurling to provide optimal traction for your boot. The highway pegs mount to any 7/8 inch (22 mm),1 inch (25 mm), 1 1/8 inch (27 mm), or 1.25 inch (31.75 mm) bar using our custom cast 304 stainless steel clamps, to create enough clamping force to prevent pegs from spinning on the bars, and utilize a ball detent to keep footpegs stationary whether folded in or out. The pegs can be position at any angle to customize the fit on your bike and increase your comfort. All mounting hardware is included. Available For Four Bar Sizes. The brackets that mount to the Bars have four selectable position holes. There are six selectable hole positions in the pedal mounting head. This means that there are a total of 24 selectable angles. This allows you to choose what direction your pegs fold up independent of the direction of your bars. For the full range of possibilities rotate the clamp. The Facts: Taking the long trip between trails or on a highway cruise, need to stretch your legs or want to put your feet up? Our Universal Highway Foot Pegs offer aluminum spacers in three different thicknesses to make the product suitable for use in 7/8 inch (22 mm), 1 inch (25 mm), 1 1/8 inch (27 mm), or 1.25 inch (31.75 mm) diameter bars. 7/8 in / 22 mm = (1.25 inch (31.75 mm) clamp and Aluminum alloy gasket) Fits bars under 1 inch (25 mm). Some European bands such as Outback Motortek, Wunderlich use 22 mm diameter bars. 1 inch / 25 mm = (1.25 inch (31.75 mm) clamp and Aluminum alloy gasket) Fits 25 mm bars most European brands use. Such As Touratech, BMW And So On. 1 1/8 inch / 27 mm = (1.25 inch (31.75 mm) clamp and Aluminum alloy Fits bars over 1 inch (25 mm). Some European brands use 27 mm such as SW-MOTECH. 1.25 in / 31.75 mm = Fits bars that offer real protection, some segments bars for larger bikes. Mounts to any 7/8 inch (22 mm), 1 inch (25 mm), 1 1/8 (27 mm), or 1.25 inch (31.75 mm) diameter bars CNC machined billet aluminum pegs with deep knurling for traction Custom cast 304 stainless steel clamps prevent spinning due to clamping force Position at any angle to customize the fit on your bike Mounted with a ball detent to keep footpegs stationary whether folded in or out All mounting hardware included For the full range of possibilities rotate the clamp Available in black or silver Black: Silver:
