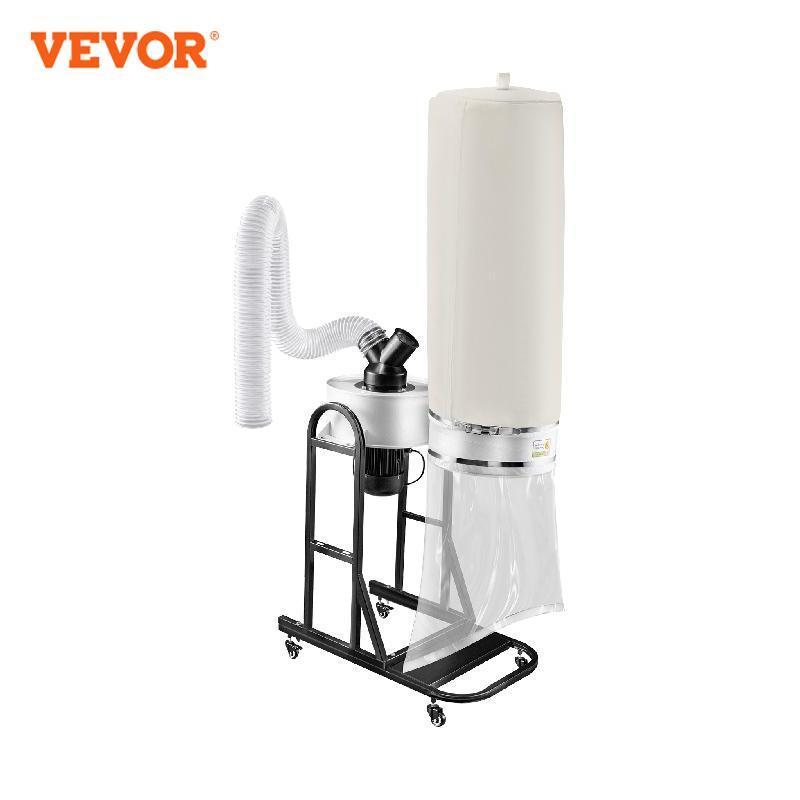

Model Number:VV-DC-220V Certification:CE Origin:Mainland China Material:Steel with Powder Coating Motor:1.5 HP, 220V, 2950 RPM, 7.1 A Air Suction Capacity:647 CFM Impeller Material:Cast Aluminium Alloy Standard Bag Filtration:25 Microns Collector Bag Volume:13 gallons Wind Pressure:1800 Pa Static Pressure:2600 Pa Sound Rating:73 dB Horse Length:2m Product Dimensions:33.5 x 19.7 x 76.4in Product Weight:66 lbs Product Description Woodworking Dust Collector This dust collector will meet your dust management needs with a continuous-duty rating, safety features, and user-friendly design. Features include a fan-cooled and permanently lubricated motor, quick-release bag clamps for fast emptying, and casters for easy portability. It helps a great deal to make your life easier, taking care of the cleaning bit. Powerful Motor Constant Suction Smooth Operation Flexible and Portable Tough Equipment & Tools, Pay Less VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR's products are sold in more than 200 countries and regions with 10 million plus members worldwide. Why Choose VEVOR? Premium Tough Quality Incredibly Low Prices Fast & Secure Delivery 30-Day Free Returns 24/7 Attentive Service Key Features 1.5 HP Induction Motor Our TEFC induction motor adopts copper core coils to ensure efficient and stable running without being damaged by dust particles. The 1.5-HP motor blower provides up to 647 CFM. Vortex Cone Technology With the vortex cone, filters stay cleaner performance, not easy to get clogged. In addition, the two-bag system allows dust to fall and deposit in the lower collection bag. Direct-Mount Fine Filter Direct-mount filter eliminates airflow restriction, increasing system efficiency. The upper bag filters wood dust down to 2.5 microns from the collected air. On/Off & Removable Bag 13.2 gallon/1.77 cubic feet collection bags made from transparent and recyclable plastic. The sewn-in and snap-in filter bag rings are faster and easier for emptying and re-attaching. Enjoy the lock-out switch to eliminate unauthorized use. Flexibility & Portability The dust collector features a 6-inch inlet or a removable Y-fitting with two 4-inch ports, equipped with a 78.7 inch/2 m flex hose. Including four casters for easy maneuverability, it can be operated as either a stationary dust collector or a mobile unit. Multiple Scenes The cyclone dust collector keeps the air and the workspace clean. Widely used in coal, cement, grain, thermal power, metallurgy, sweeper, steel industry, or processing center manufacturing dust removal facilities. Specifications Model: VV-DC-220V Material: Steel with Powder Coating Motor: 1.5 HP, 220V, Single-phase, 2950 RPM, 7.1 A Air Suction Capacity: 647 CFM Impeller: Cast Aluminum Alloy Standard Bag Filtration: 25 Microns Collector Bag Volume: 13 gallons Wind Pressure: 1800 Pa Static Pressure: 2600 Pa Sound Rating: 73 dB Hose Connection Diameter: 4" Horse Length: 2m Product Dimensions: 33.5" x 19.7" x 76.4" Product Weight: 66 lbs Package Content 1 x Dust Collector 3 x Collection Bags 1 x 2m Hose 1 x Instruction Features & Details Powerful Motor: 1.5 HP, 7.1 Amp motor produces 647 CFM and is completely enclosed, fan-cooled, and permanently lubricated for easy maintenance. The dust collector is designed for industrial applications with a continuous duty rating. Constant Suction: Vortex cone technology of the cyclone dust collector improves chip separation and packing efficiency. The two-bag system drops the heavy chips into the lower bag, then sends the dirty air through the top bag (filter), which sends much cleaner air back. The filtration bag filter captures 99% of 25-micron particles. Smooth Operation: Spark-proof, cast aluminum alloy, spin-balanced impeller provides smooth operation and minimal noise while snap-in rings hold the collection bag in place. The plastic collection bag indicates when the bag is fully occupied and needs cleaning. Flexible and Portable: The dust collector features a 6-inch inlet with a removable Y-fitting with two 4-inch openings. The Y-fitting is used to branch lines to service more than one machine, perfect for a convenient multi-machine set-up. Heavy-duty construction mounted on four swivel casters for mobility and stability. Wide Applications: The cyclone dust collector is widely used in industries, such as machinery, textile, household appliances, food, coal, building materials, sweeper, dust removal equipment manufacturing, etc.
