is_customized:Yes
Model Number:AIXUN CNC grinder 2ND-GEN
Origin:Mainland China
Certification:CE
Item:AIXUN CNC grinder 2ND-GEN
Type:JC AIXUN Intelligent BGA Chip Grinding Machine
Application:Phone CPU NAND Flash IC Chips Grinding Remove Tool
Function:Phone Motherboard Repair
No-load speed:24000r/min
Input voltage:DC 12V
Workbench size:197*93mm
Product size:204*162*179mm
Pacakage Size:300*200*260mm
Used:touch IC, motherboard chip grinding.
Head Size 1:2.5*27.5mm emery grinding head
Head Size 2:4.0*27.5mm emery grinding head
Features:Customized CNC ER8 chuck,LED lighting
Feature:with an universal mold,edge chip grinding machine

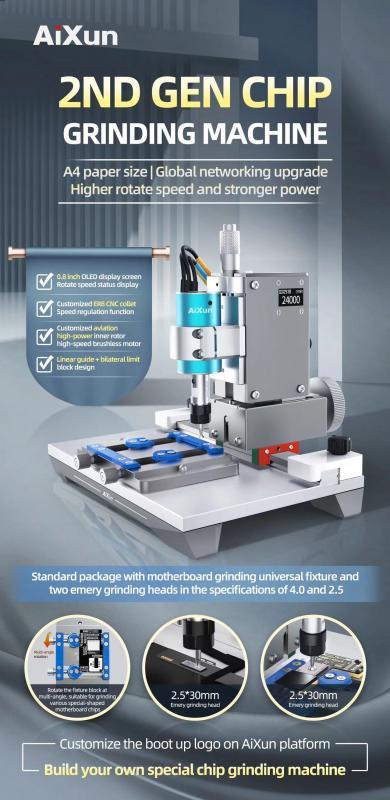

JC Aixun 2ND GEN Professional CPU Chip Grinding Machine Mobile Phone Motherboard Hard Disk IC LCD PCB Grinder Polishing Tool Set
Description
AIXUN CNC grinder for grinding mobile phone IC CPU motherboard camera, ect. Lightweight mini Aixun intelligent chip grinding machine with an universal mold for cellphone touch IC Nand Flash CPU PCB board grinding removing repair.
Features:
1. LED lighting, speed regulation, adjust the grinding speed on demand.
2. No-load speed at 24000r/min.
3. Press the lighting button to turn on the LED lighting.
4. Customized CNC ER8 chuck.
5. Standard package includes 2 specifications of customized emery grinding head 2.5/4.0mm.
6. Replace the grinding head, unscrew the nut at the lower end of the grinding chuck.
7. 2.5*27.5mm emery grinding head, 4.0*27.5mm emery grinding head.
8. An edge tool for chip grinding, powerful, multi-purpose, the best choice for touch IC, motherboard chip grindingl
9. After grinding, the effect will be better to simply treat with a maintenance blade.
10. Linear guide rail and double-sided limit block design.
11. The positioning point can be adjusted arbitrarily, and the grinding depth, width and length can be accurately adjusted.
12. Aviation brushless motor, POST buzzer prompt.
13. Power and multi-purpose, the best choice for Chip IC NAND motherboard grinding.
14. Strong momentum, strong load, more efficient.
15. Quick to start, easy to learn, and use.
Specification:
Name: AIXUN Chip Grinder.
No-load speed: 24000r/min.
Input voltage: DC 12V
Workbench size: 197*93mm.
Product size: 204*162*179mm.
Application: used for touch IC, motherboard chip grinding.
Grinding adjustment:
1. Depth adjustment: the grinding depth can be adjusted up and down by adjusting the vertical micrometer.
2. Horizontal micrometer: the grinding width can be adjusted left and right by adjusting the horizontal micrometer.
3. Length adjustment: Fix the grinding moving length by adjusting the stop block.
Package list:
1x Grinding machine
1x universal fixture
10x 2.5*27.5mm Grinding heads.
10x 4.0*27.5mm Grinding heads.
