is_customized:Yes
Theory:Resistance Sensor
Usage:Temperature Sensor

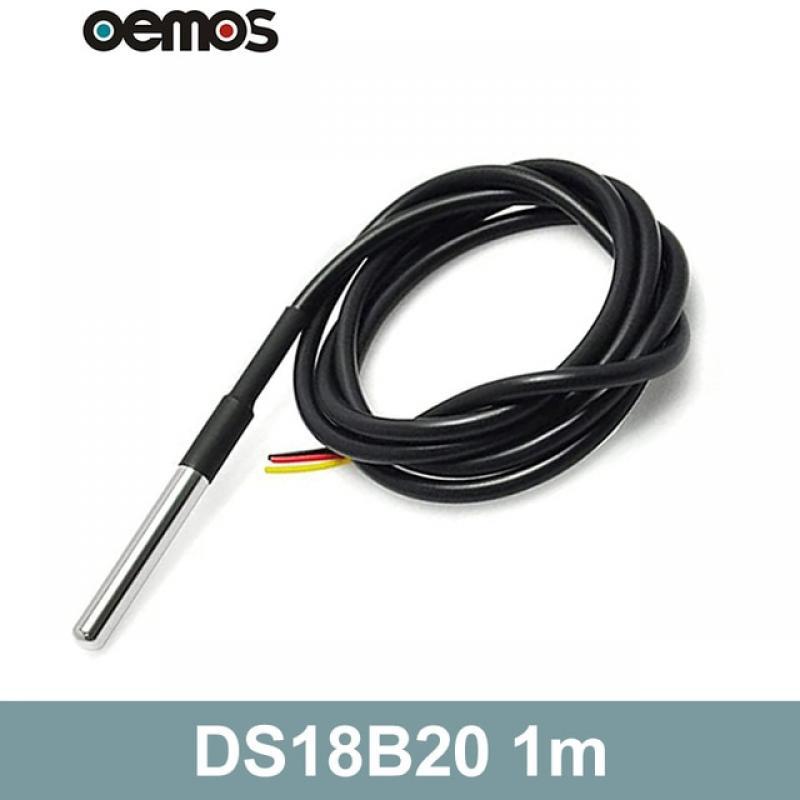

Model Number:DS18B20
Material:Metal
Type:Temperature Sensor
Output:Switching Transducer
Origin:Mainland China
Specification
Length of Cable : 1M/2M/3M/5M
Size of Stainless steel sheath:6*50mm
Power supply range: 3.0V to 5.5V
Operating temperature range:-55°C to +125°C (-67°F to +257°F)
Storage temperature range:-55°C to +125°C (-67°F to +257°F)
Accuracy over the range of -10°C to +85°C: ±0.5°C.
Output leads: Red(VCC), Yellow(DATA), Black (GND)
For each lead, we use 30pcs tinning lines, which is different from other DS18B20 sensor wires, it is soft and has better oxidation resistance ability.
