is_customized:Yes
Theory:Resistance Sensor
Usage:Temperature Sensor
Model Number:DS18B20
Material:Porcelain
Type:Vibration Sensor
Output:Switching Transducer
Origin:Mainland China
64474
Click the collection to become our VIP lover
Description:

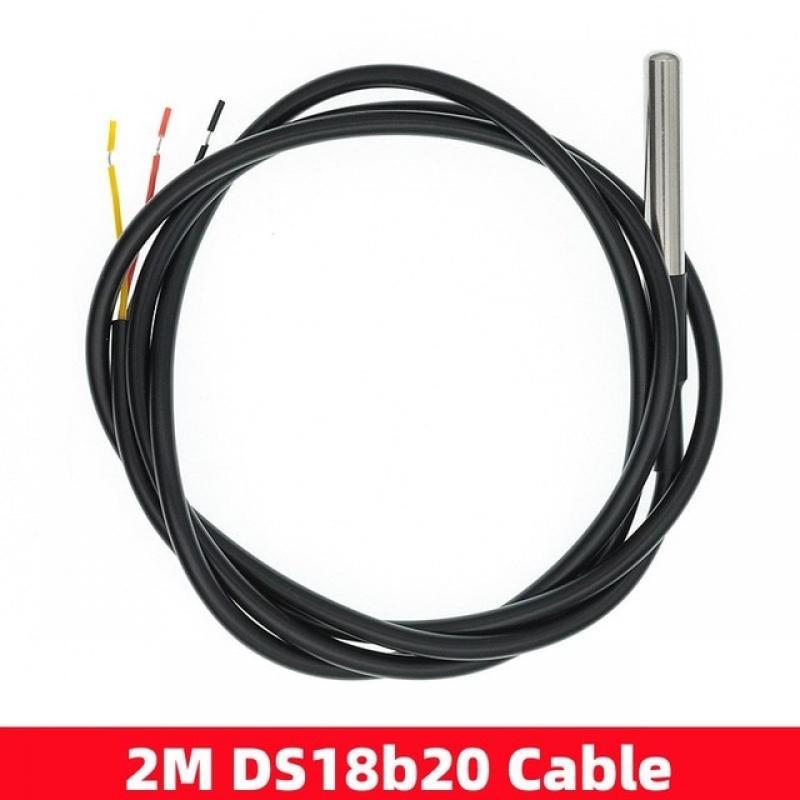

Pluggable terminal waterproof DS18B20 temperature sensor can be used in many places, such as soil temperature detection, hot water tank temperature control, waterproof DS18B20 temperature sensor must also be connected to a pull-up resistor can be used, for which we designed the converter to send use.
Product Specifications:
Temperature sensor supply voltage: 3.0V ~ 5.5V
Temperature sensor resolution: 9 to 12 adjustable resolution
Temperature range: -55 ~ +125 ° (lead can only withstand the highest temperature of 85 degrees)
Temperature Sensor Output Lead: Yellow (DATA) Red (VCC) and Black (GND)
Adapter Cables: DATA, VCC, BLK,
Suitable platform: for Arduino and Raspberry Pi
