Detection Angle:135 degree
Detection Range:10m
Model Number:ZG-204ZL
Origin:Mainland China
Certification:CE,RoHS
Specifications:

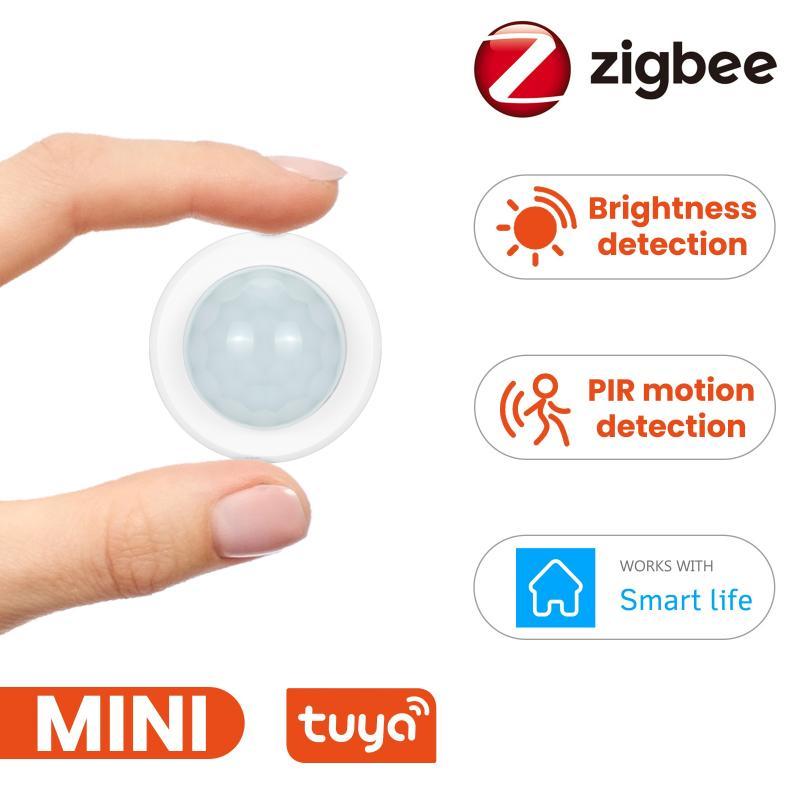

Product Name: Mini Zigbee PIR Sensor
Wireless procotol: Zigbee 3.0
Operating Voltage: 3V
Battery Type: CR2450
Stand-by Time: 1 Year
Stand-by Current: ≤12 μA
Control Method: Mobile phone control
App: Tuya Smart/Smart Life
Operating Temperature:-10℃-55℃
Operating Humidity: 0-99%RH
Detection Distance: 10m
Detection Angle: 135 °
Built-in Luminance Meter: Yes
Luminance Detection Range: 0~1000 LUX
Accuracy: 50 LUX
Material: ABS
Dimensions:
Φ 33*26mm
Certification:CE/RoHS
ZigBee Hub/Gateway: Required
Features:
* ZigBee 3.0 wireless procotol
* Mini body, small and exquisite
* Human motion detection, instant App notification, no missing alarm
* High precision infrared detector, more accurate
* Airflow suppression, avoid false detection
* Built-in luminance meter(Optional)
* Detect the brightness in environment(Optional)
* Support customized luminance area(Optional)
* Ultra-low power consumption, 1 year standby
* Intelligent linkage with other Tuya products
* Multi-scenario application, easy to install
Package Included:
1* Zigbee PIR sensor + 1* User's Manual+1*Double-sided adhesive+ 1*CR2450 Battery
Don't worry about getting up at night in the dark.
No more searching for light switches at night, place the PIR sensor next to your bed, when you get out of bed, the senses of the sensor will link up to turn on the light strip, no more worrying about the darkness!
When a woman at home needs makeup, she just sits in front of the mirror, and the PIR sensor is connected to the smart wall switch, which controls the light bulb of the dressing table to turn on.
The PIR sensor can be connected to a smart camera. When your beloved pet appears in the range of the sensor you placed, the smart camera will record a video, which you can also view directly in the application!
App Push
When the PIR sensor senses a person moving, it will push a warning message to your phone, and when you are not at home, you can turn on your phone notifications to prevent thieves.
No battery replacement required for 2 years;
Used directly without tools;
20ms delay;
Installed without tools
This PIR human motion sensor has a double sided adhesive on the back, you can install your device without tools and stick it directly on doors, windows, drawers, cabinets, etc., ready to use!
Multi-scenario application
Easy installation in various occasions
The connection to the gateway is very simple and only requires two steps
Sharing
Share control of this device with your family or friends through the App to enhance your relationship.
