is_customized:Yes
Model Number:75pcs
Type:Splice
Origin:Mainland China
Certification:NONE
Product features:
Wring method and cross section:
Solid Wires Size (BV,BVR) 0.14-4mm^2 28-12AWG
Fine-stranded Wires(RV(>30)) 0.08-4.0mm^2
Strip lengthaeProduct.getSubject() 9-10mm/0.47in
Product Name:Universal wire connector
Material of Insulation:modified nylon(PA66)
Contact material: Phosphor copper
Wire Cross section:0.08 - 2.5mm2(single hard wire);0.08 ~ 4mm2(multi soft wire)
Color:Grey+Orange
Rated Current:32A
Rated Voltage : 250V
Rated Impulse Voltage : 4KV
Rated power 8KW
Safety advice: We have to use a secure wire connector to avoid unsafe electrical that may cause a fire. It can completely help you eliminate the electrical connection security risks. It is safe and transparent visible, and easy to use, just plug directly.

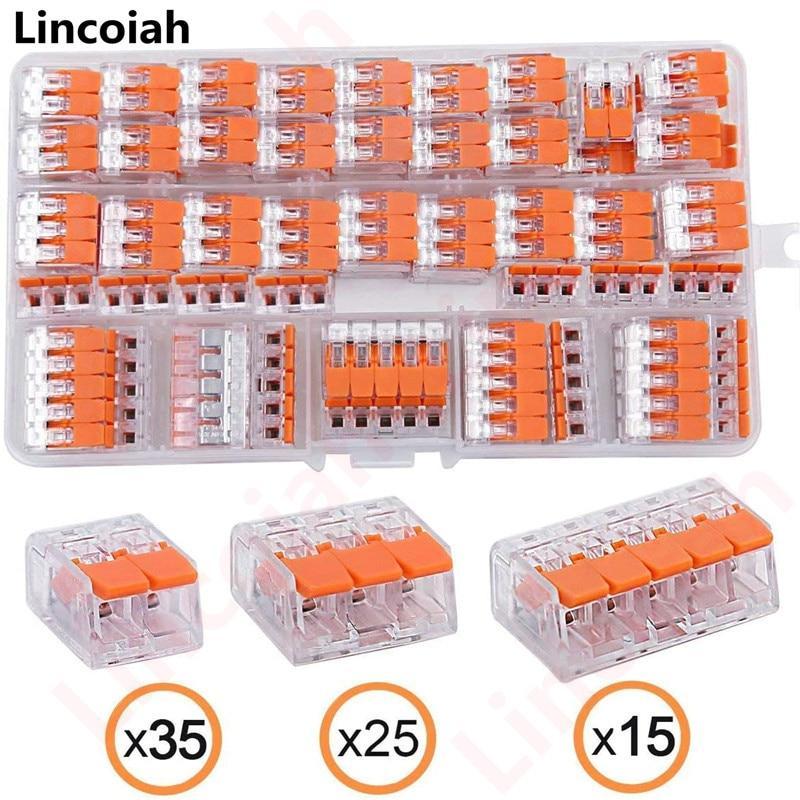

Package List:
2 port (35pcs)
3 port (25pcs)
5 port (15pcs)
LINCOIAH lever wire connectors assortment pack can meet your different demand because it has 3 different models (2 port, 3 port, 5 port). it can connect any combination of solid, stranded, and flexible copper wires.
Wires will not come loose when plug the wire in the connector. Lincoiah lever wire connectors has a strong pulling force. Made of the best high quality PC insulating material, LINCOIAH lever wire connectors housing has some advantages of corrosion resistance, high-temperature resistance and aging resistance.These lever wire connectors are safer than traditional wire nuts or traditional methods for connecting wires. LINCOIAH lever wire connectors adopt special and scientific design, which will save space effectively.
There is a test hole at the back of the lever wire connectors and the hole are designed to check whether the wires have electricity or not. All kinds of standard test probes can be used to check the lever wire connectors. What’s more, lever wire connectors features a transparent and high quality cover, which can make you check the wire length, complete wire insertion through its transparent cover. It is convenient to confirm whether the wires plug the jack or not.
Open the housing of wire to 0.35-0.47 inches.
Push the orange lever to 90°and plug the wires.
Plug the wires and press the lever down.
LINCOIAH lever wire connectors
Don't need any tools to connect wires, just using your hands. It is easy to use and safe. Push the orange levers to 90°and plug the wires and put the clip back.
