is_customized:Yes
Output Current:4-20mA
Output Frequency:50Hz
Weight:0.5KG
Size:24*99*65mm
Output Type:Multiple
Output Power:<=800Ω(output current signal); <=10KΩ(output voltage signal)
Model Number:HD-T1-3U
Type:DC/AC Inverters
Origin:Mainland China
Certification:CE
Product name:AC voltage Tranducer
Input signal:0-100VAC,0-200VAC,0-300VAC,0-500VAC,0-1000VAC
Output signal:4-20ma,0-10vdc,0-5vdc
Channels:1 in 1 out
Power supply:AC85-265V
Installation:35mm DIN rail
Linearity:0.1%
Accuracy:0.2%F.S
Insulation intensity:3kv/50HZ, one min
Temperature drift:100ppm/C
Response time:50ms
Characteristics:Active or passive output switchable
Warranty:5 years
Ac Voltage Transducer Voltage Sensor Transmitter Transformer Input 0-400V Ac Output 0-10V Dc
Working principle
:
new electromagnetic isolation, three-phase star connection AC voltage input
Product use:
used to measure the three-phase star-connected AC voltage, especially used in the power frequency 50Hz sine wave three-phase star-connected AC voltage
Product advantages:
best performance / price ratio, power consumption loss, small size, light weight, easy installation, direct input of measurement voltage
Product application:
Widely used for measuring the AC voltage of three-phase star connection
Performance parameters
Product size and diagram

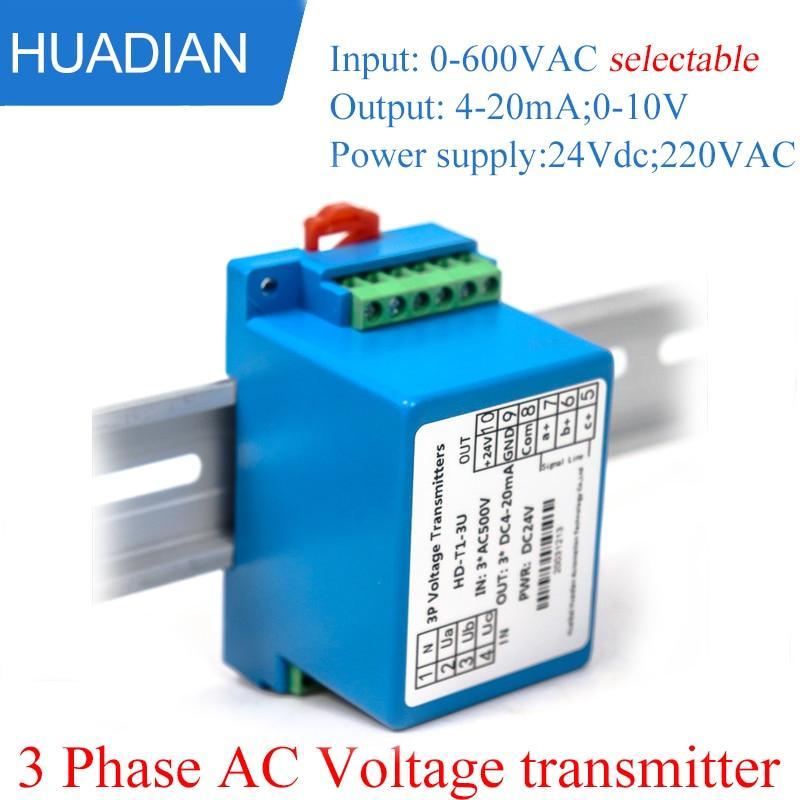

Product show
Company Profile
Why choose us?
1.We guarantee you the
lower pricing
from us compared with your any competitive prices from others in volume.
2.We can guarantee you any
quality issue
from us will be
refund
you immediately or replace with new & qualified products.
3.OEM, Accept lower quantity trial order
4.Fast
delivery
.
24 hours
With Discount Courier, Air shipment
5.Contains a variety of industrial control products such as signal isolators, pressure and liquid level sensors, temperature, current, voltage, frequency and other transmitters.
All products are in stock
(except for special customization).
6.We can support you
24Hours online service
via email, skype, what’sapp, facebook etc.
7.Long term warranty. Pressure and level transmitters are 2 years. The others in our shop are with
5-year warranty
!!
Certifications
Our Services
1.We guarantee you the lower pricing from us compared with your any competitive prices from others in volume.
2.We can guarantee you any quality issue from us will be refund you immediately or replace with new & qualified products.
3.OEM, Accept lower quantity trial order
4.Fast delivery. 24 hours With Discount Courier, Air shipment
5.Contains a variety of industrial control products such as signal isolators, pressure and liquid level sensors, temperature, current, voltage, frequency and other transmitters.
All products are in stock (except for special customization).
6.We can support you 24Hours online service via Alibaba, email, skype, what’sapp, facebook etc.
7.Long term warranty. Pressure and level transmitters are 2 years. The others in our shop are with 5 years warranty!!
Applications
It can be used together with modular instrumentation and DCS, PLC and other systems,to offer signal isolation, signal conversion, signal distribution, signal processing and otherfunctions to field instrument.
