Mounting Base:Without Mounting Base
Model Number:0308
Type:Micro Water Turbine Generator
Certification:NONE
Origin:Mainland China

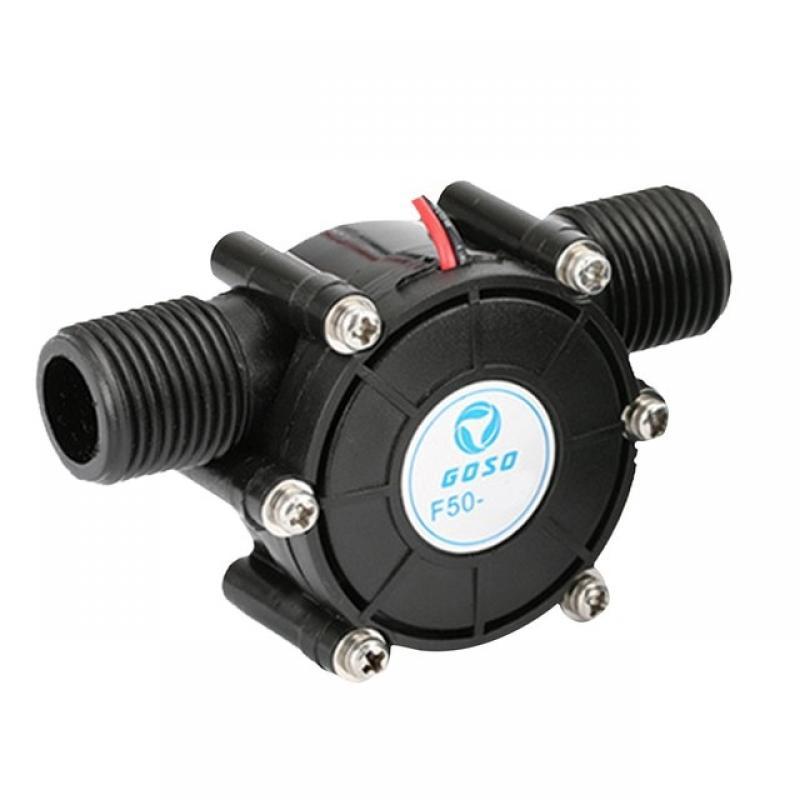

Mini 5V 10W Micro Water Turbine Generator for Charging Tools Supplies
Features:
The surface of the generator is clean, free of rust, scratches and scratches, and the structure is firm.
can directly charge small batteries, the maximum charging current is 220mA, because the power generated during charging It is used in time, and the most suitable voltage will be maintained so that all the electricity generated will be used for charging the small battery.
5V: DC 5V regulated output, can charge the mobile phone, or charge the lithium battery with the charging management chip.
Product parameters:
Output maximum voltage: 5V (1.2Mpa)
Output maximum current: ≥220mA (12V)
Line resistance: 10.5 ± 0.5Ω
Insulation resistance: 10MΩ (DC100 megohmmeter)
The maximum pressure of the outlet is closed: 0.6Mpa
The outlet has the highest pressure resistance: 1.2Mpa
Starting water pressure: 0.05Mpa
Axial clearance: 0.2-1.0mm
Mechanical noise: ≤55dB
Generator life: ≥3000h
Output characteristics:
the output voltage without the voltage regulator circuit is proportional to the water pressure
Specification:
Type: Turbine Generator
Material: Plastic
Applications: Intelligent sensor faucet, shower room, power generation temperature shower, gas water heater
Features: Micro generator, rustproof, stable, versatile, easy to install, portable, tool
Dimension: app.8.8x1.7x5.8x3.9cm/3.46x0.67x2.28x1.54in
Color: Black,Trans
Type: 5V
Quantity: 1 Pc
Note:
1.No retail package
2.Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.
3.Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
Package includes:
1 Pc x Turbine Generator
