Quantity:1 pcs
Size:37.5*33.2*11.2mm
For Vehicle Type:Airplanes
Tool Supplies:Assembled class
Remote Control Peripherals/Devices:Servos
RC Parts & Accs:Connectors/Wiring
Material:plastic
Origin:Mainland China
Recommend Age:14+y
Use:Vehicles & Remote Control Toys
FPV pan tilt aerial photography pan tilt support special pan tilt for aerial model, double axis servo pan tilt image transmission partner
Note:
the pictures show the complete installation effect. The steering gear and camera need to be purchased separately. They are available in our store. This pan tilt is in bulk and can only be assembled with steering gear and camera. You can contact our store for installation help videos.
With SG90 type steering gear, plastic gear 9g servo:
The rocker arm of the steering gear needs to be cut off a little before installation, and the installation of the steering gear on the base also needs to modify the rocker arm (remove the edge of the round hole, and then put the rocker arm in or trim the steering gear arm)!
At present, t
his kind of PTZ can only be installed with 28*28 camera modules, not 32 or 38 size cameras.
(please know that the rudder arm of the steering gear needs to be trimmed.)
The 2-axis plastic pan tilt weighs 17 grams, which is suitable for 9g-12g steering gear. It has beautiful appearance, precise manufacture, no virtual position and no shaking. It has a steering gear wire winding clamp.

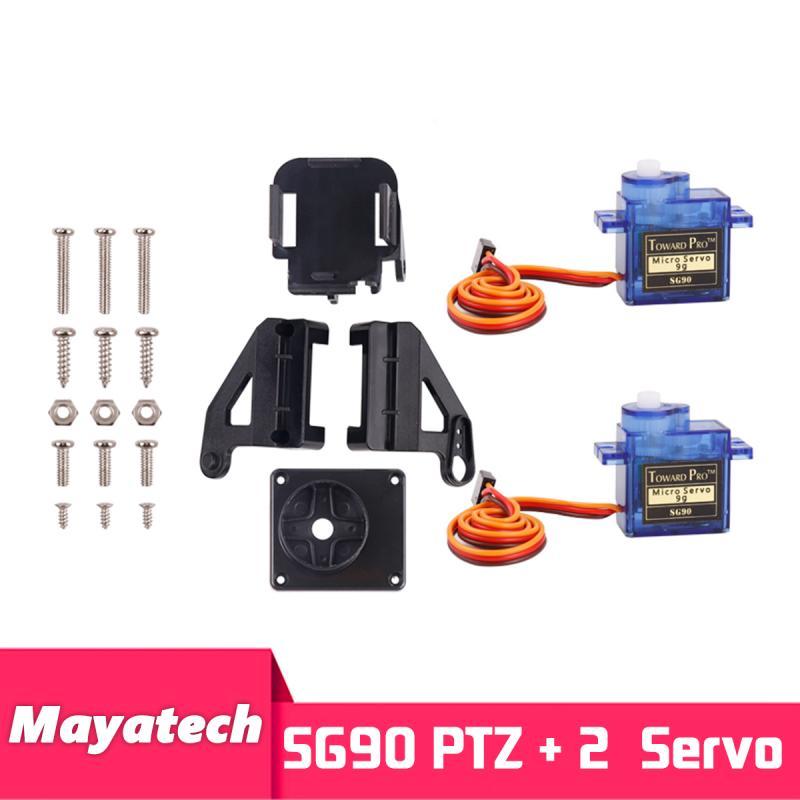

The product is shown in the figure,
4 nylon plastic parts, including screws.
Self assembly is required.
Product parameters
Applicable servo model: SG90
Product weight: 17g
Working torque: 1.8kg/cm (4.8V)
Reaction speed: 0.1sec/60degree (4.8V)
Rotation angle: 90 degrees
Working voltage: 4.8V
Working temperature: 0 ℃ - 55 ℃
Dead band setting: 10us
Gears: Plastic Gears
Pin definition: Orange signal
red VCC
Brown GND
Installation demonstration
