Model Number:K40/K50/K86
Size:see below
Item Type:Exit Button
Origin:Mainland China
Product Name:Infrared Exit Button
Function:Infrared No touch
K86 Size:86x86x14mm
K40 size:115x40x14mm
K50 Size:86x55x14mm
Material:Plastic
Trigger:Green Led On
Steady:Blue Led On
Contact:NO,NC,COM
More Infrared Exit Button, Click follow Picture

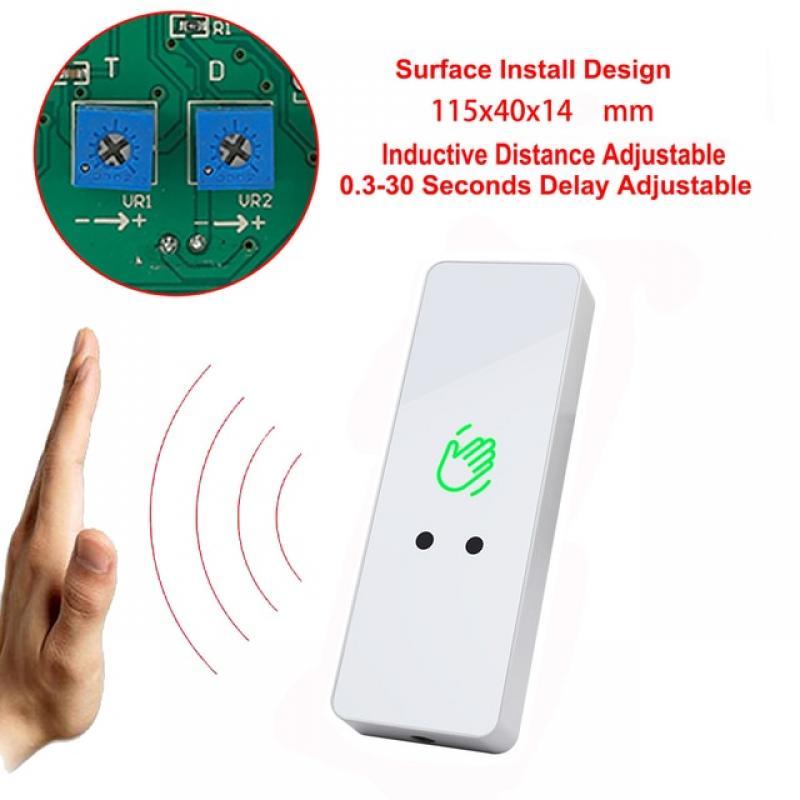

K86/K50/K40
0.3-30 Seconds Adjustable Time Delay
Adjustable Senstive Distance
Surface Installation
Material: Plastic
Contact rating: 3A, AC 120V / DC 30V
Input voltage: DC 12V-24V
Output Contact:NO/NC/COM
Working temperature(approx.): 0 to 50 ℃
Response range: Within 10cm
LED indication: Standby: Blue LED on, visitors approaching: Green LED on
K86 Size:86x86x14 mm
K50 Size: 86x55x14 mm
K40 Size: 115x40x14 mm
Diagrams
