Model Number:BR0010
Item Type:Bracket(Support)
Origin:Mainland China

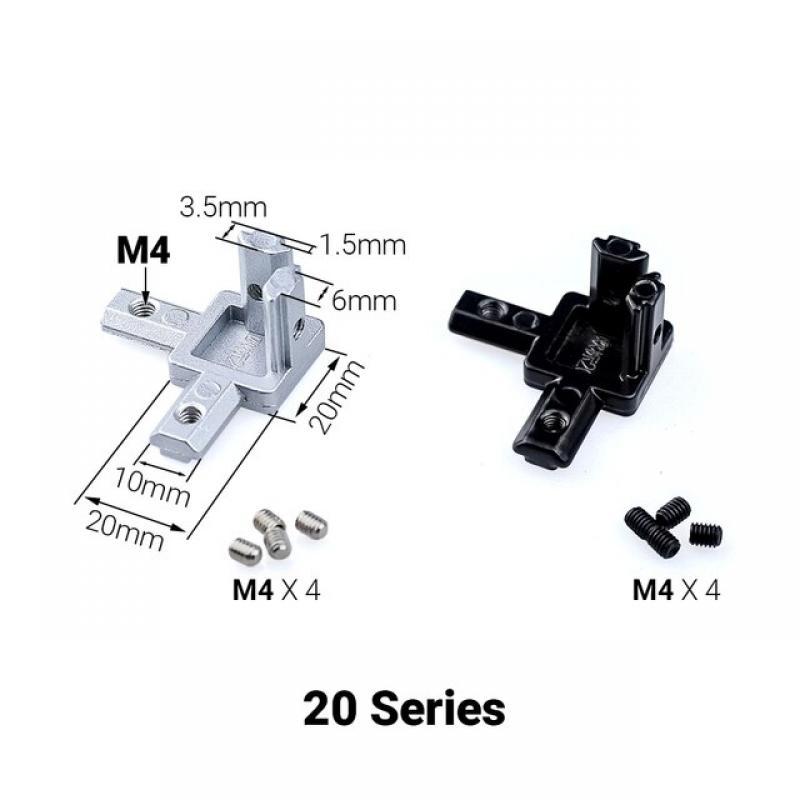

Item Name:3-Way Corner Bracket
Material:Cast Aluminium
Color:Silver, Black
Application:For 2020 3030 4040 Aluminum Profile
Quantity:8PCS
Specifications:
Quantity:
8pcs
Material: Cast Aluminium
Color: Silver, Black
Set Screws included
Designed to work with either T-Slot or V-Slot 2020/3030/4040 aluminum extrusions in its most diverse applications.
Pro Tips:
● When installed, it is inserted into the pit of the butt joint of two profiles, then tightened with set screws
The fitness of the connector depends from the shape and wall thickness of the aluminum profile. If tight, you can use a plastic hammer to fit it.
● When you are considering using this 3-way corner bracket 2020 in your design, ensure that one of the three extrusions is its planned length minus 5mm.
Example: To have the axis of 500mm length, your V-slot should be 495mm long.
Please Note: If you need an extra-strength on this join, please consider using this corner combined with 3 units of 90 degrees Angle Corner Connector (V-Slot), 1 pack of M5 Low Profile Screws and 3 units of Sliding T-Nut.
Note:
Please allow 1-2mm errors due to manual measurement.
Picture just as a reference.the actual delivered goods shall prevail !
