5G Wi-Fi Transmission Rate:None
Wired Transfer Rate:100Mbps
Wi-Fi Transmission Standard:802.11n
2.4G Wi-Fi Transmission Rate:300 Mbps
Wi-Fi Supported Frequency:2.4G
Supports WPS:No
Supports WDS:No
Number of USB Interfaces:None
WAN Ports:1 x10/100Mbps
LAN Ports:2
Function:Firewall
Application:Soho
Package:Yes
Standards And Protocols:Wi-Fi 802.11g
Max. LAN Data Rate:300Mbps
With Modem Function:No
Type:Wireless
Origin:Mainland China
Certification:CE,FCC,RoHS
More 4G 5G routers,just click the pictures below ☟
EDUP 4G LTE Router 300Mbps Wireless Router 2.4GHz WiFi Router Wireless
Access Point Repeater High Gain Antenna Router with a SIM Card Slot
Features:
4G LTE wifi router:
The product features and performance are significantly upgraded compared with ordinary routers.
Support SIM card insertion to use network:
Convenient and easy to carry, suitable for use at home, travel, etc.
4*6 dBi antenna upgrade version:
Signal more stronger.
Wider frequency band coverage:
3 different versions of frequency bands, supporting the use of users in various regions of the world.
Support multiple users to access the network simultaneously:
The maximum number of network access users is up to 25.
Support multiple operation mode configurations:
3G/4G,AP Client,Ethernet Converter,Gateway,Bridge.
Support IMEI change function:
Meet individual needs.
(If you have this requirement, please contact the seller to get the operation steps.*This is a hidden function tested by professional users. We do not recommend ordinary users to change the IMEI of the device to obtain cheaper Internet traffic, and we will not provide technical support for this.)
Description of frequency bands and regions of use corresponding to the 3
versions:

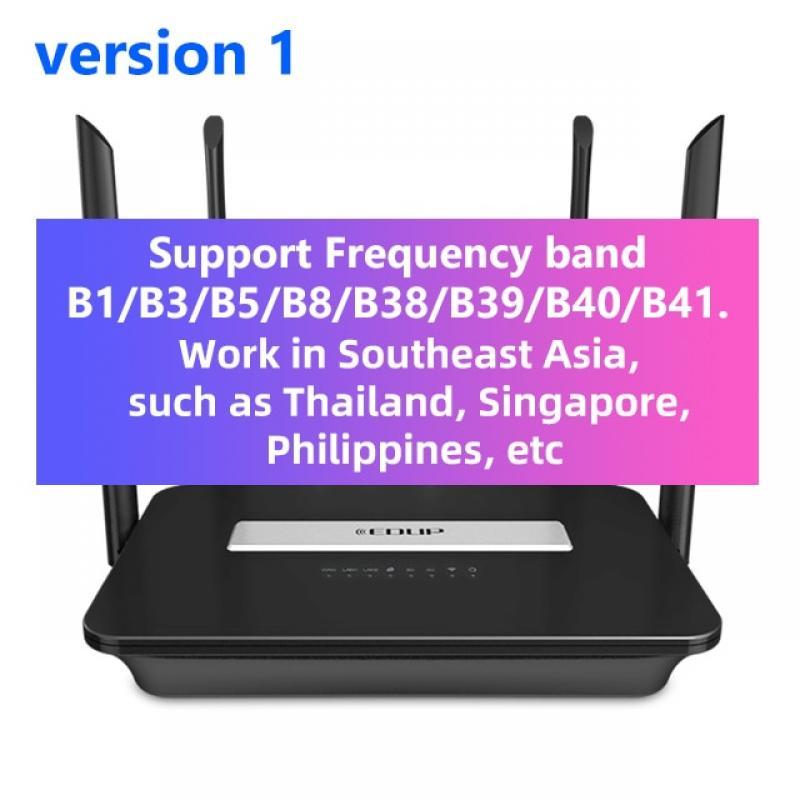

Version 1 :
Support Frequency band B1/B3/B5/B8/B38/B39/B40/B41.
(Applicable to most countries in Asia, such as Israel, South Korea, India, Kazakhstan, Sri Lanka, Thailand, Japan, Singapore, Indonesia, etc.
)
Version 2 :
Support Frequency band B1/B3/B5/B7/B8/B20/B38.
(Applicable to Europe, Africa, Asia, all countries and regions, such as Russia, Israel, South Korea, Spain, Brazil, Ukraine, France, Italy, Netherlands, India, Nigeria, Switzerland, Kazakhstan, Poland, Ghana, etc.)
Version3
Support Frequency band B2/B3/B4/B5/B7/B8/B28/B38/B40/B41/B66.
(Applicable to most countries in Americas, such as Brazil, Chile, the United States,Canada,Peru,Mexico,etc.)
Use tips:
1.Can this router work in my country?
EP-9522 is compatible with the frequency bands of SIM cards in most countries. But please confirm whether your SIM card frequency band is compatible with it before buying a router.
If you are not sure whether it can work in your country,you can consult the seller or research it here before you place the order
https://en.wikipedia.org/wiki/List_of_LTE_networks
2.Which Version will be suitable for use in my country?
Version 1 is suitable for most countries in Southeast Asia.
Version 2 is suitable for countries in Europe and Africa.
Version 3 is suitable for countries in America.
3.Cannot recognize my SIM card?
You can insert SIM card into the router for one minute first,then turn on the power.If still not recognized the SIM card,please install another SIM card from another SIM card operator.
3.The device cannot connect to the Internet normally?
You need to disable the PIN code and modify the APN. (the info can consult operator)
4.Signal is unstable?
You can also manage the settings page, lock 4G or 3G network, can effectively improve the stability of the network.
5.If your settings are correct and the device still cannot connect to the network, please consider whether it is caused by the following problems:
①.Account got suspended for too much data usage.
②.Is the SIM card an IoT card?
③.the sim card have limited service ,not work with router or hotspot .
④.not support roaming service.
⑤.some place did not cover the network Frequency band.
Support 3G, 4G LTE wireless network technology.
With signal strength indicator function, real-time display of 3G/4G network signal strength.
Strong performance,stable signal
Supports 2 ways to use the wireless network, SIM card insertion and network cable access, to meet the needs of users using the wireless network to the greatest extent.
SIM card plug and play, convenient and fast
Support for SIM card slot, turn on portable wifi hotspot.
(
Note:Only supports standard SIM cards, not Micro or Nano SIM cards.
)
Multiple people sharing Wifi
The maximum number of network access users is up to 25.
Adapt to multi scenario requirements
It is suitable for restaurant, shopping mall, big house, office, etc. Users only need to carry a router and install a SIM card to use network and switch occasions at any time.
Up to 50 meters in the room and up to 200 meters in the outdoors (depending on the environment)
High-gain antenna mobile wifi allows you to enjoy the wide coverage and high-speed transmission wifi world.
The size is moderate, and the use does not take up space
Light body, adjustable antenna direction, easy to carry.
Concise and smooth line design, showing personality in a low-key
Simple black appearance, suitable for a variety of use environments.
Specifications:
Brand Name:
EDUP
Model Number:
EP-9522
WiFi:
2.4G Wi-Fi Transmission Rate:
300 Mbps
Function:
FireWall, QoS, VPN, APP Control
Network Port:
2*LAN 1*WAN
SIM Card Slot:
Standard SIM Card Slot
Button:
Reset
DC:
Input: 12V-1A
WiFi Standard:
IEEE 802.11 /b/g/n
Encryption Type:
WPA2-PSK, WPA2
Support Systems:
Windows XP/Vista /7/8/10,Mac OS,Linux
Working Temperature:
-10 to 50 degree centigrade
Storeage Temperature:
-40 to 70 degree centigrade
Humidity:
5% to 95%
4G:
LTE UE-Category:
CAT4
Antennas:
2 × 2 DL SU-MIMO for LTE and HSPA
SCDMA/LTE Speed:
TD-HSPA: Upload 2.2Mbps;DL 2.8Mbps
TD LTE : Upload 50Mbps;DL 150Mbps
FDD LTE :Upload 50Mbps;DL150Mbps
3GPP Version:
FDD-LTE/ TD-LTE 3GPP Release 9
TD-HSPA :3GPP Release 7
EDGE/GPRS/GSM :3GPP Release 4
Working Temperature:
-30~+75 degree centigrade
Storeage Temperature:
-40 to 85 degree centigrade
Humidity:
5% to 95%
Reference map of frequency bands supported by SIM card vendors in some
countries:
Shipping and Returns:
Shipping is available from China, Russia and Spain.
Warranty:
Products ordered from China come with a 75-day money-back guarantee.
