Card Type Device:4G Card
Application:Desktop,Laptop
Package:Yes
Kind:Internal
Interface Type:M.2
Type:Wireless
Certification:CE
Model Number:5G RM500Q-AE
Origin:Mainland China
Modem:5G M.2 Modem
5G:RM502Q-AE RM500Q-GL FM150-AE
Interface:M.2 SLOT
Applicable country:Europe Australia
Applicable area:North America Asia
Stock:Brand new
Reminder:
The buyer has already understood the compatibility of the product by default before purchasing the product, and the seller does not assume any responsibility for the compatibility of this product.
The seller cannot guarantee the compatibility of the buyer's module and device. And not all M.2 modules are 100% compatible with your products. If your module and device are not compatible, please replace other device or send it back.
If buyer order the modem alone, there are free gifts on package:
2 x 5G Antennas. 2 x Golden Rings
Packing List:
1 X 4G/5G M.2 Modem

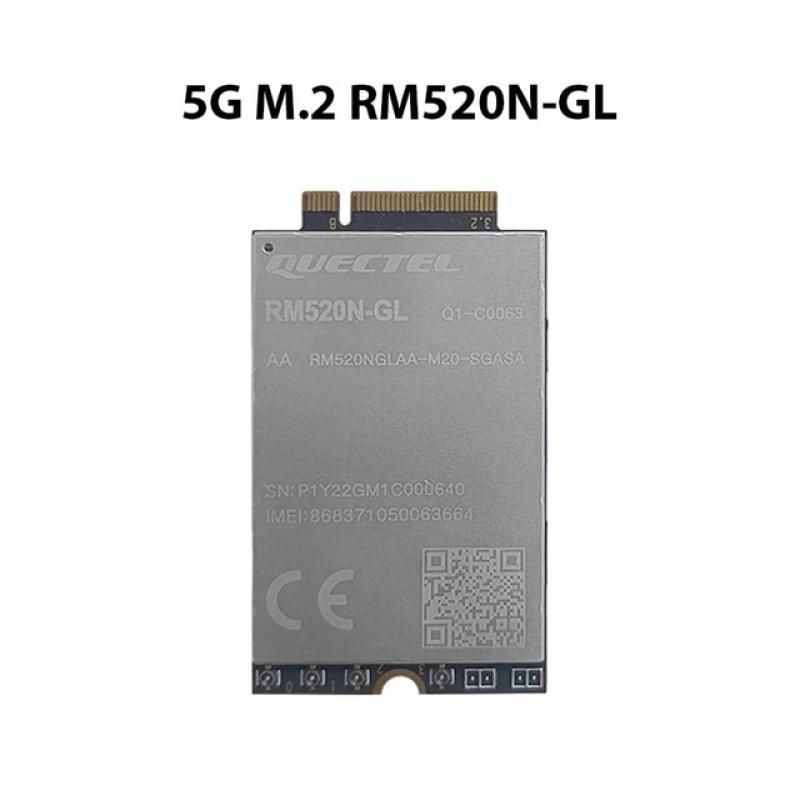

RM520N-GLAA-M20-SGASA :
Sub-6 GHz
5G NR: n1/n2/n3/n5/n7/n8/n12/n13/n14/n18/n20/n25/n26/n28/n29/n30/n38/n40/n41/n48/
n66/n70/n71/n75/n76/n77/n78/n79;
LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/
B32/B66/B71;
LTE-TDD: B34/B38/B39/B40/B41/B42/B43/B48; LAA: B46;
WCDMA: B1/B2/B4/B5/B8/B19
Operating voltage : 3.135~4.4V Typical value 3.7V
Operating temperature : -30° C ~ +75° C
Control via AT Commands : 3GPP TS27.007 and Quectel Enhanced AT Commands
Network Protocol; TCP/UDP/FTP/HTTP/HTTPS/PING/SMS
5G SA Sub-6: Max. 2.4Gbps (DL)/ Max. 900Mbps (UL);
5G NSA Sub-6: Max. 2.8Gbps (DL)/ Max. 550Mbps (UL)
MIMO : Sub-6: DL 4 × 4 , UL 2 × 2
FM150-AE :
Work in Asia Pacific, Europe, Australia
5G NR: n1, n28, n41, n77, n78, n79
LTE FDD: B1, B2, B3, B5, B7, B8
LTE TDD: B34, B39, B40, B41
3G WCDMA: B1, B2, B5, B8
FM150-AE supports 5G NRSub6 frequency bands in Asia/Europe/Australia, and is compatible with LTE and WCDMA. Provide high-speed experience for tablets, gateways, industrial monitoring, telemedicine, drones, virtual reality and other fields.
Networking mode : NSA&SA
Operating voltage : 3.135V~4.4V, Typical 3.8V
Operating temperature : -30°C - +75°C
key function :
NR MIMO : DL 4*4 MIMO: n1/41/77/78/79 , UL 2*2 MIMO: n41/77/78/79
LTE MIMO : DL 4*4 MIMO: B1/41, UL: 1*1 MIMO
GNSS : GPS/GLONASS/Galileo/BeiDou/QZSS
RM500Q-AE:
5G Sub-6 GHz Module
30.0mm × 52.0mm × 2.3mm
M.2 package
Extended operating temperature: -40 °C ~ +85 °C
Main advantages:
M.2 module designed for IoT/eMBB applications while supporting 5G/4G/3G
Supports comprehensive coverage of 5G and LTE-A multiple network standards
Supports NSA and SA modes
5GNR
:
3GPP Release 15 NSA/SA operation, Sub-6 GHz
5GNRNSA
:
n
1
/n2/n3/n5/n7/n8/nl2/n20/n25/n28/n38/n40/n41/n48*/n66/n71/n77/n78/n79
5GNRSA
:
n
1
/n2/n3/n5/n7/n8/nl2/n20/n25/n28/n38/n40/n41/n48*/n66/n71/n77/n78/n79
MIMO
:
Downlink:4x4MIMOon n
1
/n2/n3/n7/n25/n38/n40/n41/n48*/n66/n77/n78/n79 Uplink:2x2 MIMOon n41
LTE Category
;
DownlinkCat 16/UplinkCat 18
LTE-
FDD
:
B
1
/B2/B3/B4/B5/B7/B8/B12(B17)/B13/B14/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71
LTE-
TDD
:
B34/B38/B39/B40/B41/B42/B43/B48
LAA
:
B46 (only supports 2x2 MIMO)
Downlink4x4 MIMO
:
B1/B2/B3/B4/B7/B25/B30/B32/B34/B38/B39/B40/B41/B42/B43/B48/B66
WCDMA
:
B1/B2/B3/B4/B5/B6/B8/B19
GNSS
:
GPS/GLONASS/BeiDou (Compass)/Galileo
RM502Q-AE:
5G sub-6GHz module:
52.0mm × 30.0mm × 2.3mm
M.2 form factor
Max. downlink 2.5Gbps / 900Mbps uplink
Extended temperature range of -40°C to +85°C
5G NE SA/NSA: n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48*/n66/n71/n77/n78/n79
4G LTE-FDD : B1/B2/B3/B4/B5/B7/B8/B12(B17)/B13/B14/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71
4G LTE-TDD : B34/B38/B39/B40/B41/B42/B43/B48
3G WCDMA: B1/B2/B3/B4/B5/B6/B8/B19
RM500Q-GL:
M.2 package
5G Sub-6 GHz Module
52.0 mm × 30.0 mm × 2.3 mm
Extended operating temperature: -40 °C ~ +85 °C
Quectel RM500Q-GL is a 5G Sub-6 GHz module specially designed for IoT/eMBB applications. It adopts 3GPP Release 15 technology and supports both 5G NSA and SA modes. RM500Q-GL adopts M.2 package and is compatible with Quectel LTE-A Cat 6 module EM06, Cat 12 module EM12-G, EM120R-GL and EM121R-GL, and Cat 16 module EM160R-GL, which is convenient for customers from LTE- A Migrate to 5G.
5G NR: n1,n2,n3,n5,n7,n8,n12,n20,n28,n38,n40,n41,n48,n66,n71,n77,n78,n79
4G LTE: B1,B2,B3,B4,B5,B7,B8,B9,B12,B13,B14,B17,B18,B19,B20,B25,B26,B28,B29,B30,B32,B66,B71,B34,B38,B39,B40,B41,B42,B48
3G WCDMA:B1,B2,B3,B4,B5,B6,B8,B19
