Card Type Device:4G Card
Transmission Rate:150Mbps
Package:Yes
Kind:3G
Interface Type:USB
Type:Wireless
Certification:CE
Model Number:LDW931
Origin:Mainland China
Chipset:Qualcomm 8916

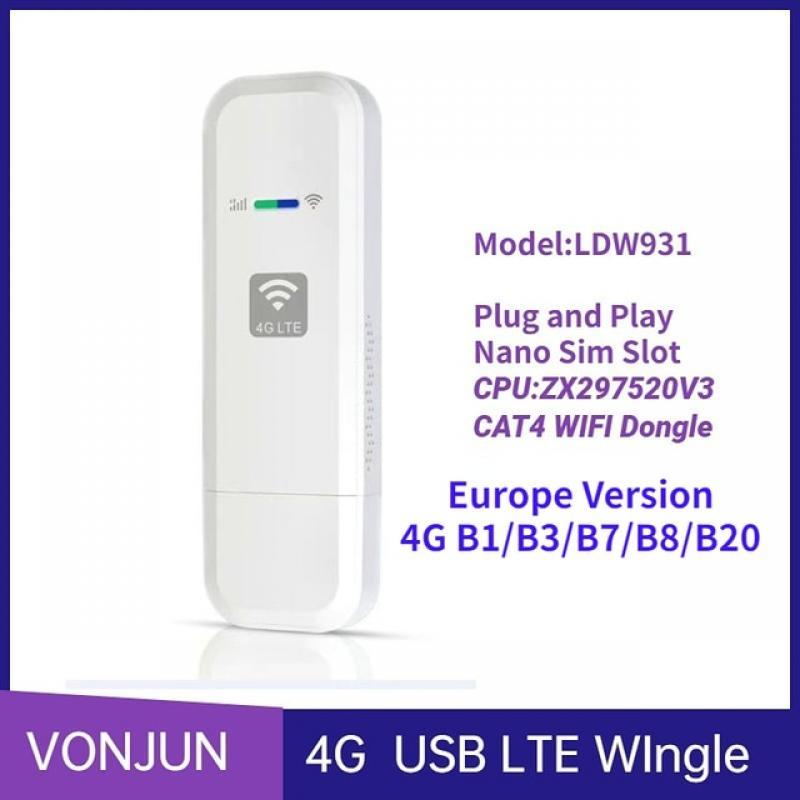

LDW931 4G WiFi Router Nano SIM Card LTE Modem Mobile Hotspot
There are different network bands for different operator ,please check from your operator ,choose the suit version for yourself
1 : Europe Version Support 4G bands B1 B3 B7 B8 B20
(kind note : if you need change IMEI in the software ,please buy the version with
4g chipset ZX297520V3，software of qualcomm solution not support IMEI Modify in the web )
2：Aisa Version support 4G bands B1 B3 B5 B40 （hot sell in Korea ）
3：USA Version S
4G bands B2 B4 B5 B7
* Support worldwide network,FDD-LTE/UMTS
* Multi language(Indonesian,Russian,Portuguese etc)
* SMS--Send/receive/delete SMS
* Plug&Play,No need CD-ROM,No Driver Installation.
* Up to 10 users access to WiFi
* Slimmest 4G USB dongle in the world ; Innovative Nano SIM-in-USB
Technical
FDD-LTE
3GPP,3GPP2 Release9，Category4,up to 150M DL and 50M bps UL
TDD-LTE
3GPP,3GPP2 Release9，Category4,up to 112M DL and 10Mbps UL
DC-HPSA+
3GPP,3GPP2 Release8, up to 42Mbps ,category 24，5.76M bps UL
HPSA+
3GPP,3GPP2 Release7, up to 14.4Mbps ,category 10，5.76M bps UL
HSPA
3GPP,3GPP2 Release6, up to 7.2M bps DL,category 7,8，5.76M bps UL
UMTS
3GPP Release4, up to 384 Kbps DL and UL
ID : LDW931
Size: 81.5*25.5*7.5mm
Weight: 16g
Interface
Antenna
Built-in 4G/3G antenna Gain: -1.5 dbi
WIFI Antenna Gain: -1.0 dbi
WIFI Antenna Sensitivity: 72M：-68dBm PER
54M：-68dBm PER
11M：-84dBm PER
Support System
32/64Bit: Win2000/Win2003/XP/Vista/Win7/Win8/Win10
LINUX
Driver
Plug&Play , no driver installation
Language
Multi language(Indonesian,Russian,Portuguese etc)
USB
Standard USB 2.0 high speed, easy USB charger
SIM
Nano SIM,4FF SIM
Power
Input Voltage: 5V/1A, Max Power consumption: ＜2W
Environment
Storage Temperature
'-20˚C～75˚C
Working Temperature
'-10˚C～45˚C
