Package:Yes
Model Number:ONT-NCTM
Type:Cable Crimper
Origin:Mainland China
Certification:CE
Pressed 4P/6P/8P phone crystal head:RJ45 Line Tester
Easy Stripping:Saving Ratchet
Accurate Pressure:Non-slip Handle
Scope of use:used in all kinds of integrated wiring, home wiring, engineering wiring
FOR:Wire cutting,Wire Stripping,Wire Pressure,Network line tester four in one
Material:steel +PVC material

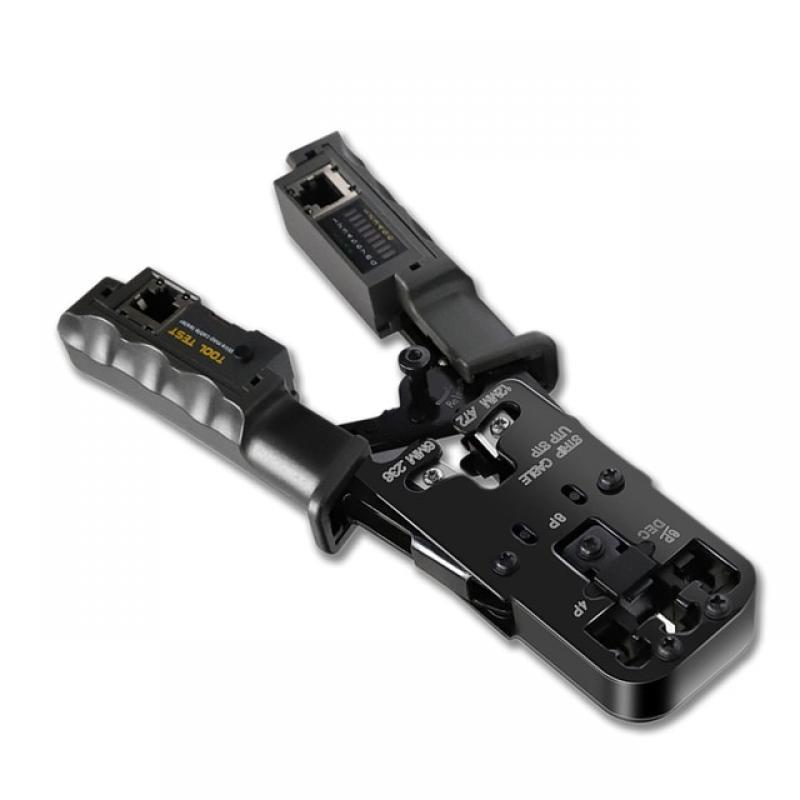

Multifunctional Network Cable Pliers
Come with Line Detector
Wire cutting/ Wire Stripping /Wire Pressure /Network line tester four in one
...
Accurate Pressure  --  Non-slip Handle  --  Easy  Stripping  --  Saving  Ratchet
Just a tongs,cutting, pressing, stripping,measuring all done
Cut, strip, press all you want ,Convenient and quick to see unseen.
...
--Shear line area (SK5 steel blade that has been polished for many times)
--Stripping zone (With diameter line mark, can peel a variety of lengths)
--Pressed 4P phone crystal head (Precise debugging, one step in place)
--Pressed 8P phone crystal head (Precise debugging, one step in place)
--Pressed 6P phone crystal head (Precise debugging, one step in place)
--Non-slip handle (feel comfortable can work for a long time)
--RJ45 line meter (Insert design, energy saving and high precision)
Insert High Precision Tester Say Goodbye To The Trouble To Carry
Insert removable tester design, do not need trouble to carry can accurately test the conductivity of the network cable, open, short and wrong line.
...
--Cable RJ45 (1-8 indicator light  Sequential scintillation)
--Telephone line RJ12 (1-6 indicator light  Sequential scintillation)
--Microphone RJ11 (1-4 indicator light  Sequential scintillation)
6 To Block The Rebound Ratchet That's How You Save Effort
Labor-saving ratchet structure, not to be tied by force, automatically in place and easily rebound Engineering wiring batch crimping no longer worry about hand acid back pain So that you save time and effort.
For Accurate
Get what you want One step in place, precise crimpingGet what you want
We have very strict requirements on accuracy. In order to reduce the damage rate of finished products, we have conducted precise debugging on the pitch, depth and width of the pressing die to ensure that one time is in place and one time is formed.
Cut line Smooth Quickly From The Blade
Under the sharp edge, we have polished the SK5 steel blade for many times. We know you like fast and precise, so we do not allow a single flaw. The blade is strong and durable, and the pressing fit is very high and crisp.
To Meet Your Desire For Easy Stripping Of Various Lengths Of Wire
The wire stripping port is marked with warp line, which can be used to strip various wires. Simple operation of round flat network cable/telephone line can easily strip wires, and itis not easy to damage the internal chip.
Forging A Forceps Body Durable
After countless times of fine polishing of the steel seat head, cast a clamp body, tight structure to ensure that the compression is not deformed Hardened and dyed black, accurate and good position.
Method Of Use
1.Put the network cable into the wire stripping port of the network cable pliers gently press the network cable pliers, rotate the network cable pliers once, and peel off the skin.
2.Place the core of the network cable into the special cable cutting port and trim the front end of the core.
3.Sort the wires according to the color of the wrie sequence.
4.Insert the wire core into the bottom of the crystal head.
5. Aim the crystal head at the clamp and press it easily.
6.Complete crystal head pressing operation.
Line Sequence Standard Drawing
Use a network cable pliers to peel off the skin of the network cable. Eight metal wires of different colors are displayed.
...
1.orange  2.orange and white   3.green  4.green and white
5.blue  6.blue and white  7.brown  8.brown and white
Product Parameters
Brand: ONTi
Product Name: Multi-function network cable clamp/band tester
Pressing Type: 8P/6P/4P
Material: steel +PVC material
Use Name: Tester Network Cable Pliers/Network Pliers/Crimping Pliers
Scope Of Use: used in all kinds of integrated wiring, home wiring, engineering wiring
Packing: ONTi box
PS: The dimensions marked below are measured manually and may have minor errors.
