Data Transmission:No
Package:Yes
Use:Standard Battery
Model Number:Battery charger
Display screen:Yes
Intelligent Charge:Yes
Quick charge:Yes
Type:Electric
Origin:Mainland China
Certification:CE
Blue
wire is positive +
. But don't change connectors arbitrarily , if have mistake in changing , you need to be responsible for the problem !

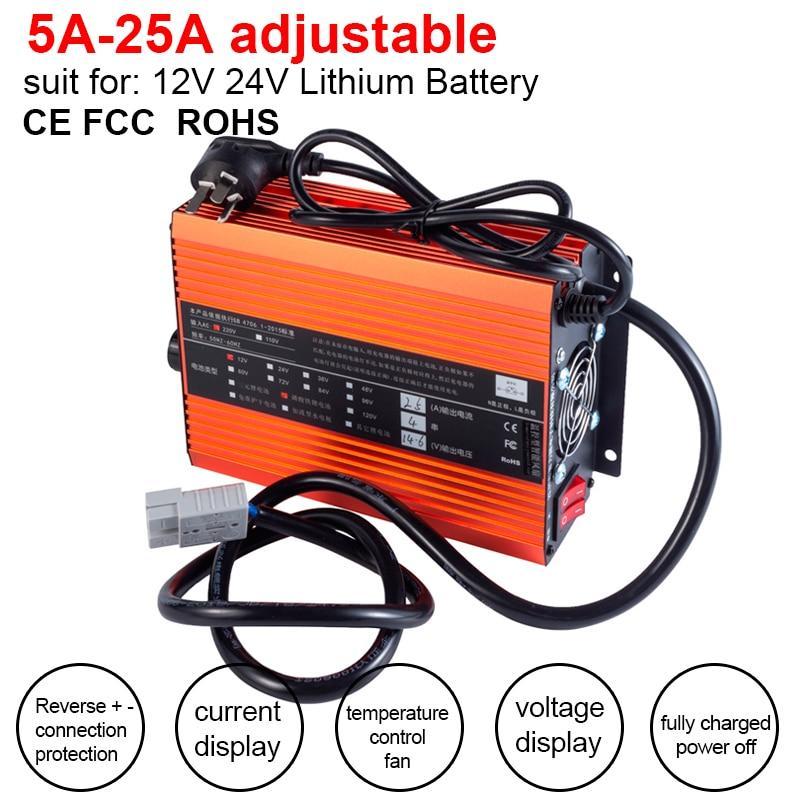

1. suit for 10AH to 250AH Li battery
you can adjust the current 5A to 25A
2. can suit for 99% Li batteries
12V 24V 36V 48V 60V 72V 84V 96V you can choose in our store
voltage cannot adjust
it can quick charge , 40AH to max current can full charged around 2 hours
3. power 750W
4.input 200V-230V
5.size :205*150*70mm
6. weight : around 2kg
7.output current : 5A to 25A you can adjust
8.Space aluminum alloy shell
9. with fan cooling
10.Over heating protection. Over current protection. Low voltage protection. Reverse connect protection. Short circuit protection
11. Digital display charge current and charge voltage
12.When it is full charged, it automatically stops slowly
14. Polarity + - detection function
note : if you need other voltage or current , contact us ~
if the express shipping ( DHL/Fedex/EMS ) is too high for you , we can reduce shipping fee for you
output connector default send out
Anderson 50A
, if you want plugs or other connectors , please contact us ~
4 power tubes , to make sure power stable output , double speed charge than other chargers. IC driver board , like a super brain
Adopt super high frequency pure copper transformer. long life
More capacitance
Built-in thermostat. when the temperature is too high, the charger automatically off
The internal configuration of high-power continuous electrical appliances. Short circuit protection, reverse connection protection
