Package:Yes
Channels:1
Model Number:D100W OK
Maximum Power Per Channel:Above 200W
Origin:Mainland China
Certification:CE

Feature:
- Support reading and play the MP3 songs in TF-card and U-disk.
- Support independent adjustment of treble, bass and master volume.
- With AUX Audio input, can be connected to PC, Phone, TV or DVD.
- Dual Mic input, adjustable reverb, with Bluetooth and FM radio.
- Support Wired Mic and Wireless Microphone Board(not included).
Description:

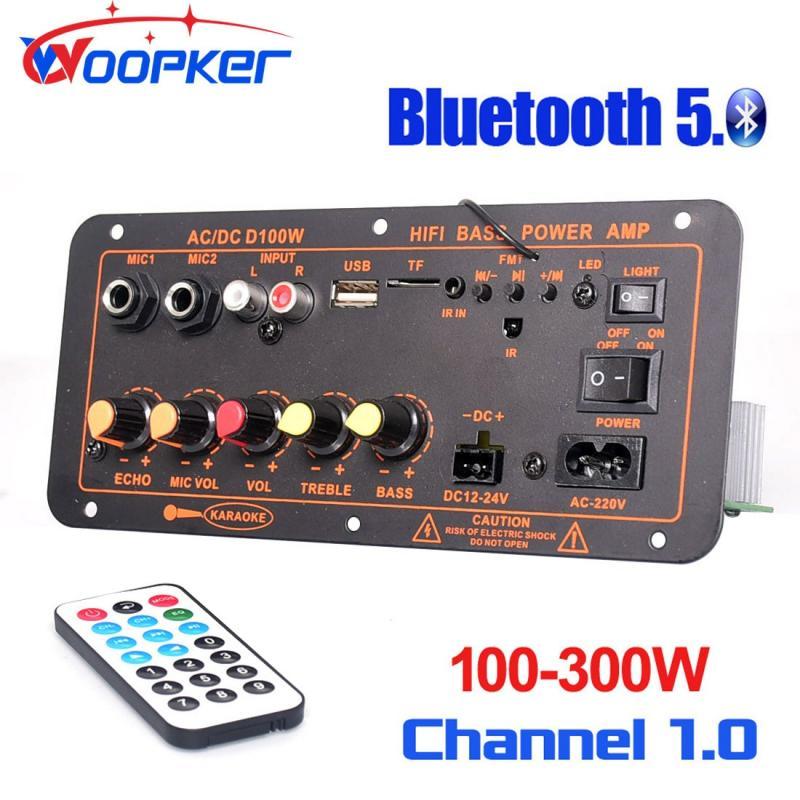

Type: Power AMP Board
Model: D100W
Bluetooth Version: 5.0
Audio Channel: 1.0
Rated impedance: 4-8Ω
Rated Power: 100W
Power Range: 100-300W
Distortion: 0.03%
S/N Rate: 92db
Battery of Remote: CR2025 x1(Not Included!)
Feature: FM Radio / Treble / Bass
Voltage: AC 220V, DC 12V~24V
Input: Bluetooth/3.5mm AUX/U-Disk/TF/6.5mm MIC
TIPS:
1. Support AC 210-230V.
2. If connect DC 12V-24V, the Current needs more than 3A.
Warning: Pls select only 1 power supply method.
To match the AMP and Speaker:
1. The impedance of the amplifier is the same as the speaker, can not be too far apart.
2. The power of the amplifier is 1.5 times than speaker to obtain a enough sense of strength.
● If the output impedance of the amplifier requires 4-8Ω, the impedance of your speaker should also be 4~8Ω, the sound of 4 ohms is louder, and the 8 ohms is smaller;
● If the output power of AMP is 35W, for best effect, the speaker should be around 20W. For 1.0 channel, the power is 20-30W, for 2.0 channel, it is 2x(20-30W).
This amp board is full frequency, so the wider the frequency response of the speaker, the better, such as 100~18KHz.
TIPS:
● The speakers only based on impedance and power, regardless of dimensions.
● If the sound is intermittent or hoarse during increasing the volume, it means the speaker and amplifier are not matched, Pls adjust small sound or change a suitable speaker.
● Pls make sure that the required power supply is used and working properly.
How to use Radio ?
1. Expand the Radio Antenna.
2. Press "MODE" button to switch it to the radio state.
3. Press the "Play" button to search the entire channel and save.
4. Press the previous / next track to switch to use.
TIPS: This is not professional radio, no good effect, pls understand!
1x AMP Board D100W
1x Remote Control
1x Audio Cable
1x AC Power Cable
1X DC Connector
Note: Battery of Remote is Not Included !
