WIFI:No
DSP:-
DAC:-
Dimensions (WxHxD):-
Body Material:Plastic
Bluetooth:Yes
Supports EBook Reading:No
Operation Mode:Touch Tone
Storage Type:Flash Memory
Have Speakers or not:No
Supports FM:Yes
Battery Specification:External Power
Signal Noise Ratio:≥89dB
Supports Recording Function:No
Display Size:None
Package:No
Function:FM Radio,bluetooth
Model Number:MP3 Decoder Bluetooth
Style:Car MP3
Battery Life:< 10 hours
Screen:Yes
Balanced Out:No
External Memory:Yes
Audio Format Support:MP3, WAV
Origin:Mainland China
Certification:CE

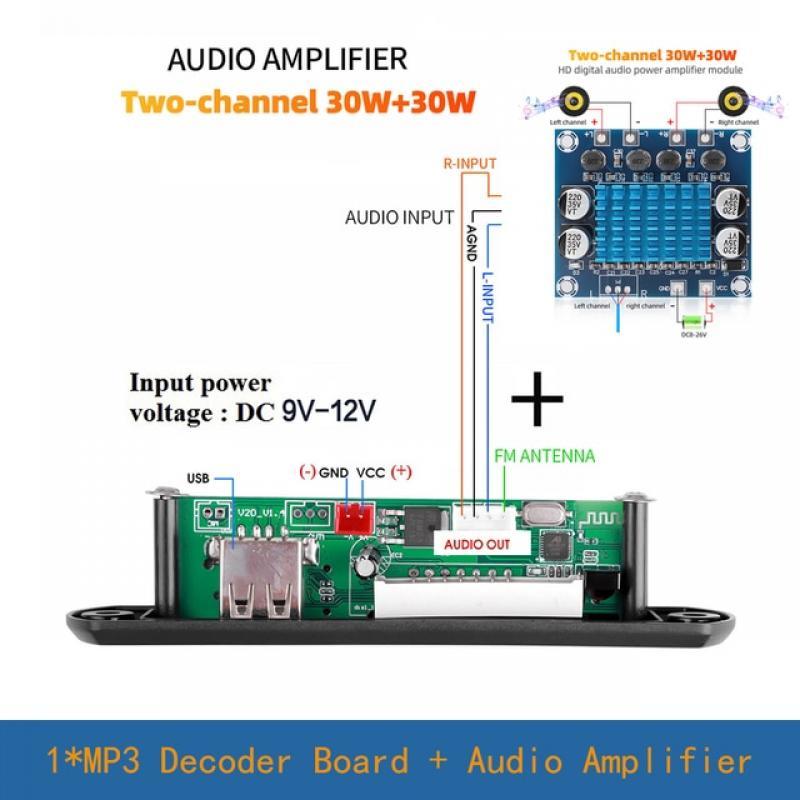

kebidu Wireless Bluetooth 9V-12V MP3 WAV Decoder Board Audio Module USB TF Radio For Car accessories with Remote Controller
Note:
When connecting, you must first connect the power amplifier, and then connect the speaker
Description:
FM Frequency Range (International): 76Mhz-108MHz
USB: connect USB disk (maximum support: 32GB)
LED color screen: digital screen display, display red
Infrared receiving module
TF: connect TF memory card (maximum support: 32GB)
AUX: audio input interface
VOL-: short press to select the previous song;
Long press means volume reduction
PLAY/PAUSE: short press to PAUSE and PLAY;
Long press is FM radio automatic station
VOL+: short press to select the next track;
Long press increases volume
MODE:USB/TF/FM/LINE IN/BLUETOOTH voice switch
2x15W Amplifier:
Model: JQ-501 Power Amplifier Board
Power: 2*15W
Power amplifier chip model: CS8655E Zhipuxin
Power amplifier: 2*15W
Voltage: power supply voltage 12V, minimum input current 2.5A 4 ohm speaker
Board size: 26*33MM
Screw hole fixing size: 23*29MM
2x30W Amplifier:
Product Name: Digital Audio Power Amplifier Board
Product Model: XH-A232
Amplifier Type: Class D
Input voltage: DC8-26V DC
Input current: more than 3A
Number of channels: two channels
Peak: 30w+30w
Output impedance: 4-8 ohms
Signal to noise ratio: 100db
