Camera Equipped:Yes
State of Assembly:Ready-to-Go
Bundle:HLK-LD2410
Model Number:HLK-LD2410
Origin:Mainland China
Certification:CE,RoHS
The farthest sensing distance:6m
Size:7mm*35mm
Working frequency band:24GHz~24.25GHz
Distance resolution:0.75m
Ambient temperature:-40 ~ 85℃
Working voltage:5V
Modulation:FMCW
Welcome to our store!
Shenzhen Hi-Link Electronic Co., Ltd was founded in 2009 which is a high-tech enterprise focusing on WiFi module, Bluetooth module and power module, integrating R & D, production and sales services.
We are the Hi-Link manufacturer and could provide your best price and make sure the high quality with genuine modules .
If you need a sample to test,welcome to contact us.
If you need more quality,let us know and we will give you the best price.
Packing List:
HLK-LD2410 module * 1
Radar test board * 1
USB antenna ( Type-C )* 1
About Datasheets/ Softwares
Please help to download from below link
https://www.hlktech.net/index.php?id=download-center
If you have any question please help to contact below, we will reply you as soon as possible.
Att: Anna Kuang
Email: anna@hlktech.com
Skype: c-alicekuang
Wechat/whatsapp/mobile: +86 13632657057
HLK-LD2410
!!!Note: All the modules of the kit are with pins, if you need bare board, please write remarks to us.
1. Product introduction
HLK-LD2410 is a high-sensitivity 24GHz human presence status sensing module developed by Hilink Electronics. Its working principle is to use FMCW frequency-modulated continuous wave, to detect human targets in the set space, combined with radar signal processing, accurate human body induction algorithm, to achieve high sensitive human presence status sensing, which can identify the human body in motion and stationary state, and can calculate auxiliary information such as the distance to the target.
This product is mainly used in indoor scenes to sense whether there is a moving or micro-moving human body in the area, and output the detection results in real time. Farthest sensing distance up to 6 meters, distance resolution 0.75m. Provides a visual configuration tool, which can easily configure the sensing distance range and sensing in different intervals sensitivity and unmanned delay time, etc., to adapt to different specific application needs.
Support GPIO and UART output, plug and play, and can be flexibly applied to different smart scenarios and terminal products.
2. Product Features and Benefits
2.1 Features
Plug and play, easy assembly
The longest sensing distance is up to 5 meters
Large detection angle, coverage up to ±60 degrees
Accurate identification within the interval, support the division of the sensing range, and shield the interference outside the interval
Multi-level intelligent parameter adjustment to meet the needs of scene changes
Visual debugging and configuration tools
Small and simplified, the minimum size is only 7mmx35mm
Supports various installation methods such as ceiling hanging and wall hanging
24GHz ISM band, compliant with FCC and CE spectrum regulations
5～12V wide voltage power supply
The ultimate cost-effective choice
2.2 Benefits
LD2410 human body sensing module adopts 24GHz millimeter wave radar sensor technology. Compared with other solutions, it has obvious advantages in human body sensing applications:
1. In addition to being sensitive to moving human bodies, it can also sensitively sense static, micro-moving, sitting and lying human bodies that cannot be identified by traditional solutions;
2. It has good environmental adaptability, and the sensing effect is not affected by the surrounding environment such as temperature, brightness, humidity and light fluctuations;
3. It has good shell penetration and can be hidden in the shell to work without opening holes on the surface of the product, which improves the aesthetics of the product;
4. It can flexibly configure the farthest sensing distance and the sensitivity on each distance door to achieve flexible and fine personalized configuration.
3. Application scenarios
The LD2410 human body sensing module can detect and identify the human body in motion, fretting, standing, sitting and lying down. It supports multi-level parameter adjustment and can be widely used in various scenarios of AIoT. The common types are as follows
Human body sensor light control
It senses whether there is someone in the space, and automatically controls lights, such as lighting equipment in public places, various sensor lights, bulb lights, etc.
Human body induction wake-up of advertising screen and other equipment
Automatically turn on when people come, and automatically sleep when no one comes to save power, information delivery is more accurate and efficient
Life safety protection
UV lamp work protection, to prevent the UV lamp from being turned on when there are people around and causing personal injury
Automatic detection and alarm of dangerous places to prevent people from entering specific high-risk spaces, such as high-risk places entered by personnel from coal mine blasting
Smart home appliances
When there is no one in the room for a long time, the TV, air conditioner and other electrical appliances are automatically turned off, saving energy and safety
Intelligent security
Detection and identification of people intruding, staying, etc. within the specified range
4. Hardware Description
4.1 Features

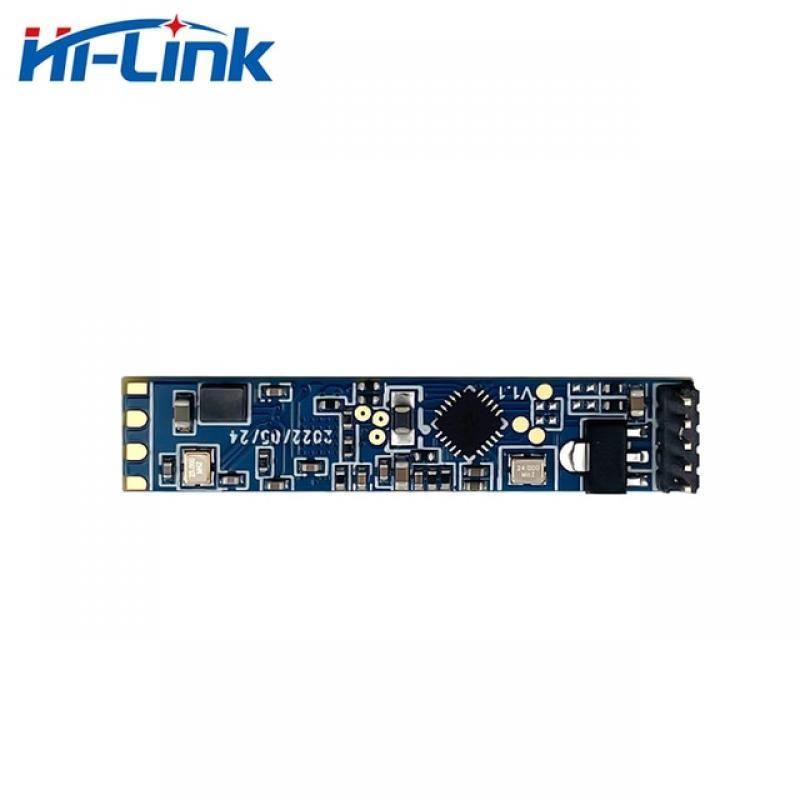

HLK-LD2410/HLK-LD2410 with BLE
Module size: 7mmx35mm, 5 pin holes are reserved in the hardware (the factory default does not match the pins)
The pin hole diameter is 0.6mm, and the pin spacing is 1.27mm.
HLK-LD2410C
HLK-LD2420
4.2 Pin definition
