Model Number:FV04
Origin:Mainland China
Certification:CE,FCC
Guitar In:1/4'' mono audio jack (impedance value: 1M ohms)
Guitar Out:1/4'' mono audio jack (impedance value: 100 ohms)
Mic:XLR balanced input jack (impedance value: 2.14k ohms)
XLR OUTPUT:XLR balanced output jack (impedance value: 300 ohms)
Power Supply:9V DC
Current Draw:500mA
Dimension:86.6x125x60mm
Weight:0.371kg
Freq:20 Hz-20K Hz

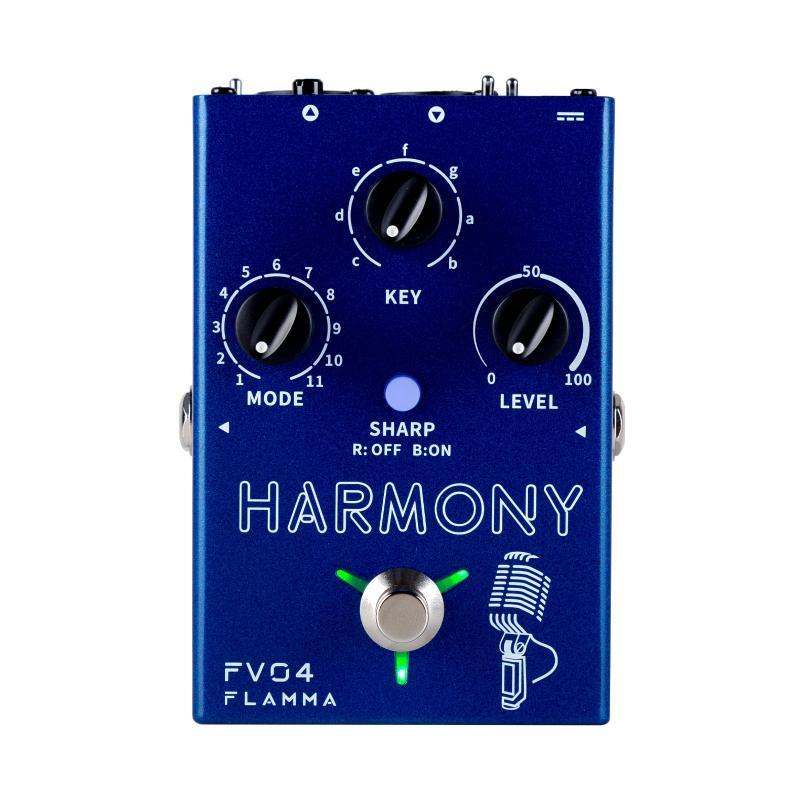

FLAMMA FV04 Harmony Vocal Effects Processor 12 pitches with 11 different harmony mode 48V Phantom Power
The FV04 Harmony is the first effects pedal from Flamma aimed at vocalists and guitarists. The FV04 happily accepts guitar or microphone inputs and includes dedicated reverb effects for each. On the vocal side, the Harmony provides 11 different harmony modes to choose from and can comfortably shift between major and minor scales for ultimate pitch flexibility. The FV04 act as an all-in-one effects solution with the ability to choose between mixed signal or individual outputs to separate vocal and guitar channels. Support for 48V phantom power is also included as is the option to use the FV04 as a microphone amplifier.
Features
●12 pitches with 11 different harmony mode
●Dedicated reverb designed for vocal
●Support Guitar in with individual guitar reverb effect
●Optional 48V phantom power
●Can be used as a microphone amplifier or a traditional stompbox
●Two different output modes for mixed signal or individual signal from guitar
and microphone
12 pitches with 11 different harmony mode
FV04 provide 12 different keynotes. Select a correct keynote can help to get accuracy harmony effect.
●Rotate the KEY to select between C, D, E, F, G, A, B scale
●Press the SHARP to get higher semitone for Db, Eb, F#, Ab, Bb
R：OFF---SHARP
B：ON-----SHARP
Two Output mode
Press and hold the footswitch while power onFV04 to switch between individual output mode and mixed output mode, the TONE button and footswitch LED will blink a while then turn off. The color of TONE button and footswitch LED will indicate the current mode. Blue for individual mode; red for mixed mode.
●Individual mode
Guitar signal will only go out from GUITAR OUT; microphone signal will only go out from XLR OUT.
●Mixed mode
Guitar and microphone signal will goout from both GUITAR OUT and XLR OUT.
Optional 48V phantom power
compatible with condenser microphones, dynamic microphones, headsets. suport 9V power-free Microphone, musical instruments. etc.
Line in mode
Turn on the Line In function for connecting to an external microphone amplifier via MIC IN or to connect to other FV series effect pedals.
1.KEY：Scale section
2.LEVEL：Harmony volume control/vocal or guitar reverb volume control
3.MODE：11 different harmony mode
4.SHARP LED button：Semitone/vocal tone mode
5.GUITAR IN: Guitar signal input
6.GUITAR OUT:Guitar signal output
7.FOOTSWITCH: On/off of the pedal
