Electronic:No
Item Height:7cm
Item Width:13cm
Item Length:15cm
External Testing Certification:ce
Model Name:EOS019
Item Type:Car Diagnostic Cables and Connectors
Origin:Mainland China
Product:bluetooth elm327
Performance:strong and stable
Model ID:EOS019
bluetooth elm 327:Free shipping
bluetooth elm327:0.13kg
SOFTWARE:V1.5
ELM327 V1.5:Chip PIC18F25K80
ELM327:BLUETOOTH
V1.5 ELM 327:FOR Android Symbian

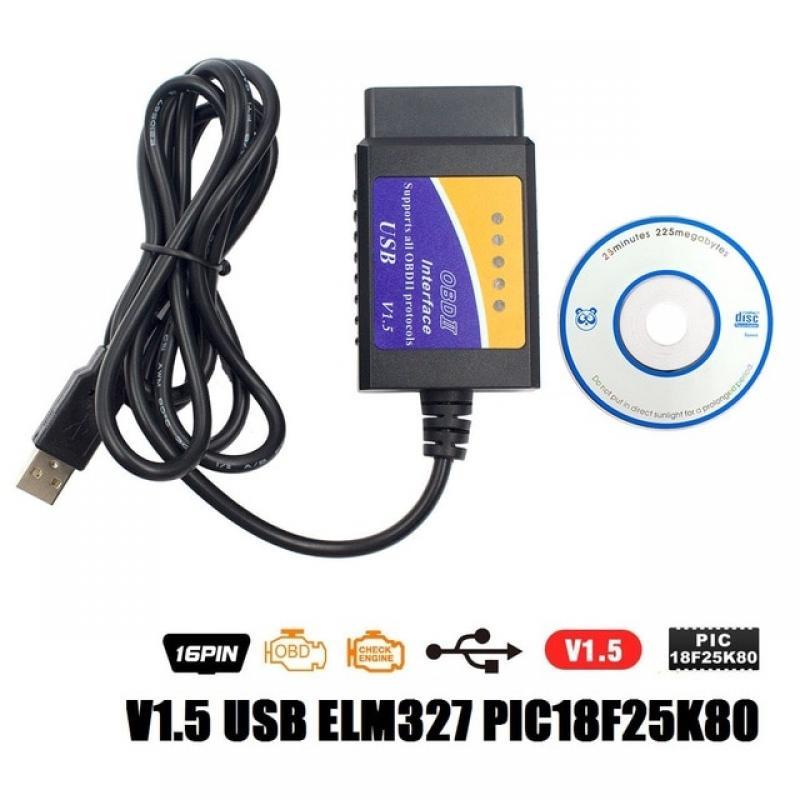

Wholesaling Price for: 10pcs/lot 10 pcs/lot 50pcs/lot 100pcs/lot If you need switch V1.5 ELM327 USB Forscan HS CAN/MS With PIC18f25k80 Chip , please click here to buy it. If you need classic Wifi V1.5 ELM327, please click here to buy it. Following Two Colours(BLACK/GREEN) PCB BOARD RANDOM Colour TO SHIP , functions are the same, Please note that: Note: It only supports android platform, it does not works iOS system. If buyer need works for iOS For iPhone, please buy ELM327 WIFI. Q&A: Q: Is your ELM327 1.5 built on original Microchip PIC18F25K80? What's the frequency of crystal oscillator there, 4mhz or 16mhz? Does it support commands ATAL and ATPPS? A: 2PCB Board With PIC18F25K80 Chip 4mHz, Bluetooth module 16mHz. 1PCB Board with PIC18F25K80 Chip 4mHz, Bluetooth Chip 24mHz. Both model supports commands ATAL and ATPPS. Model 1 Old 2PCB Board Display: It is Bluetooth 2.0 Module+PIC18F25K80 Chip Hardware V1.5,please check Real PCB Board(2PCB Board on Main Unit): 2PCB Board Version MAC Address: AA:BB:CC:11:22:33 Model 2 New 1PCB Board Display: It is Bluetooth 2.0 Module+PIC18F25K80 Chip Hardware V1.5,please check Real PCB Board(1PCB Board on Main Unit): 1PCB Board MAC Address will be Random Hardware V1.5, it is more stable and supports more cars than ELM V2.1. Hardware V1.5 is More Powerful than V2.1. Hardware V1.5 Supports SAE J1850 PWM and SAE J1850 VPW. V1.5 item description Super MINI 100% V1.5 Hardware ELM327 Bluetooth Scanner Bluetooth 2.0+Best PIC18F25K80 Chip,best quality to send! PIC18F25K80 ELM327 V1.5 Highlights: ELM327 MINI OBD SCAN is the newly developed wireless scan tool. It supports most standard OBD-II protocols Hardware V1.5 ,Soft ware V2.1 Bluetooth Password :0000 / 1234 / 6789 Woks on Android Torque (support Android smart phone System with Android 4.0-Android 4.4 version) /PC( win XP/WIN 7 32bits and close anti-virus programm) It can not supports iOS,if u need works iOS,please buy ELM327 WIFI. It CAN'T support Trucks. This ELM327 Hardware V1.5. supports most of OBD-II protocols cars,but it can not do all models With Chip PIC18F25K80,it supports Diesel&Gasoline Multi-Cars. Supprots All OBD2 Protocols: SAE J1850 PWM (41.6 kbaud) SAE J1850 VPW (10.4 kbaud) ISO9141-2(5 baud init,10.4Kbaud) ISO14230-4 KWP(5 baud init,10.4 Kbaud) ISO14230-4 KWP(fast init,10.4 Kbaud) ISO15765-4 CAN(11bit ID,500 Kbaud) ISO15765-4 CAN(29bit ID,500 Kbaud) ISO15765-4 CAN(11bit ID,250 Kbaud) ISO15765-4 CAN(29bit ID,250 Kbaud) This link is ELM327 Hardware V1.5,it is more stable and supports more cars than ELM V2.1. Hardware V1.5 is More Powerful than V2.1. Hardware V1.5 Supports SAE J1850 PWM and SAE J1850 VPW. Supports CAN Protocols also other protocols. Default Settings(user adjustable) 1.Works with OBD-II compliant vehicles 2.Wireless (Bluetooth) 5~10 meter 3.Soft ware included for Pa, PDA,Mobile 4.Soft ware included for Windows PC ,Can also be used with a PC with a Bluetooth Card. 5.Soft ware included for Windows Smartphone Android torque Functions: Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database). Clear trouble codes and turn off the MIL ("Check Engine" light) Set the maximum number of responses to obtain Remove spaces from ECU responses (to speed data transmission) Store a unique identifier in EEPROM Set the CAN mask and filter with one command Easily switch between variable and fixed CAN message lengths Send CAN remote frames (RTRs) Display current sensor data, including: Engine RPM Calculated Load Value Coolant Temperature Fuel System Status Vehicle Speed Short Term Fuel Trim Long Term Fuel Trim Intake Manifold Pressure Timing Advance Intake Air Temperature Air Flow Rate Absolute Throttle Position Oxygen sensor voltages/associated short term fuel trims Fuel System status Fuel Pressure Many others. Multi-Language 12kinds: Czech,Danish,German,English,Spanish,French,Croatian,Hungarian,Italian,Polish,Serbian,Turkish Packing List: 1 x ELM327 Bluetooth Supports Car List Tips: About Car supports list, this ELM327 works most gasoline car brand model ,but honestly we cant to test all cars one by one . Each car brand has many series, maybe it works one brand this model, but no supports another model is possible .Like for Citroen works C3/C4,but no sure if works C5 or not. So you can buy one to try and test .As this is cheap elm327,but it has powerful function for your car ! QA Q:What version of this ELM327? A: 100% Hardware V1.5,Latest Soft ware is V2.1 Q:What Chip of this hardware V1.5? A:Best PIC18F25K80 Chip Q:How many language of this device soft ware? A:Czech,Danish,German,English,Spanish,French,Croatian,Hungarian,Italian,Polish,Serbian,Turkish Q:Does it supports Russian Language? A:Sorry,the soft ware has no Russian yet. Q:Does it supports WIFI and iOS? A:No,it only supports bluetooth android torque and windows XP/WIN7 32bits Q:Does Hardware V1.5 better than V2.1? A:Yes,Hardware V1.5 is more stable than V2.1 ,also from many buyer feedback,V1.5 supports more protocols and car brand . Q:Does this device works diesel car or truck? A:No,it works only gasoline cars ,supports most OBDII Standard protocols. Q:How can i know if this device works my car or not ? A:this ELM327 works most gasoline car brand model,but we can not sure if your car supported,we have no test each car .You can buy one to test. (If you dont sure and also do not want to buy one to try ,please do not buy ,we do not want any negative feedback about no supports your car else ! thanks in advance .) Q:How is the step for Run soft ware on android phone? A:Open your android phone soft ware--Setting--Connecting Type--OBD2 Adapter Setting--Bluetooth--Choose Bluetooth Device--OBDII. Q:My android phone connect to my old ELM327 before ,do i need delete previous informations? A:Yes,please delete all old informations ,so make sure you can connect your new ELM327. How to connect the Bluetooth of elm327 forscan ELM327 USB FORSCAN For ford V1.5 Top Recommander : 1. Hardware V1.5, Software V2.1 V1.5 elm327 supports 9 kinds of protocols. But V2.1 elm327 just supports 7 kinds of protocols . It supports more cars and better quality than V2.1 elm327. 2. The chip of ELM327 USB Forscan is PICI8F25K80 and FTDI FT232RQ chip 3. Support models open hidden function for Mondeo for Kuga 4. Majority for moderm modules are accessoible only through this protocol 5. Beside added functionality, this device works as normal OBD2/EOBD code reader on all supported vehicels. 6. When you use it with software of FoCCCus. It just supports 2 kinds of languages: English & Russian. 7. Computer System: Windows XP/Win7 32bits,close anti-virus program to install software. 8. Supports 12V gasoline cars,no supports diesel&truck . 9. Multi-Language Available : English , Czech , Danish , German , Spanish , French , Croatian , Hungarian , Italian , Polish , Serbian , Turkish Note : 1. As this device can support multi-brands and we do not test it on all cars, we can not make sure whether it can be used on your car, maybe you can buy one to have a try . Many thanks. 2. The CD in the package is easy broken during shipping , after get , pls contact us to get the link to download the software directly ^_^ 3. If you have the problem of connect , pls check you install the usb driver well first , set the com port well first . ELM327 USB FORSCAN Description : One ELM327 OBDII OBD2 USB with switch. Designed for communicating for Mazda, for Lincoln and for Mercury vehicles. With this cable and the one of the supported software vendors you can detected modules which are not visible for regular obd2 scanners. This includes showing you trouble codes,PINDS,running tests and services procedures which are never displayed by other OBD2 scanners and a standard ELM327. ELM327 USB Forscan Features: 1. Latest ELM327 version for greater compatibility 2. Manufactured modification to include a switch to connect to different CAN buses 3. Designed for FORScan software 4. Supported software : for FORScan for Elmconfig for FoCCCus for FF2 for Plus more 5. Support MS CAN bus and HS CAN bus, easily switchable for different CAN speeds. Switch position one: HS CAN - Occupies pins 6 and 14 Switch position two: MS CAN - Occupies pins 3 and 11 6.Hidden function Support car list: 2006-2016 classical for Focus 2012-2015 new for Focus 2013-2015 for Kuga Please note that many for Mazda models (approximately since 2003-2004) are equipped with MS CAN bus, in addition to the regular HS CAN bus. In contrast to HS CAN bus, MS CAN bus is not supported by the stock ELM327, because MS CAN is a manufacturer-specific solution and located on non-OBD2 pins. This ELM327 has been modified to allow it to implement the MS CAN bus. ELM327 supports HS CAN from the stock, because CAN completely matches to the OBD2 standards. It occupies pins 6 and 14. MS CAN bus occupies pins 3 and 11. ELM327 USB Switch Functions: Read/erase fault codes/parameter ids (PIDs) from ALL modules, including OBD2/EOBD Access modules on both HS-CAN and MS-CAN mode Read and Change car configuration data Actuator tests Live Data Injector coding Software updates Service procedures Force DPF regeneration Programming Coding Adaptations Run tests Air Flow Rate Display and read Engine RPM Vehicle Speed Intake Air Temperature Long Term Fuel Trim Short Term Fuel Trim Timing Advance Oxygen Sensors Fuel System status ELM327 USB Forscan Support Car List: For MAZDA For BMW For VW For GM For AUDI For CHEVY For TOYOTA For LEXUS For Lincoln For MERCEDES For Mercury For HYUNDAI For KIA For MITSUBISHI For NISSAN For SUZUKI For JAGUAR For LAND ROVER For CHRYSLER For HONDA AND SO MUCH MORE! ELM327 USB forscan Support OBD2 Protocols: SAE J1850 PWM(41.6Kbaud) SAE J1850 VPW(10.4Kbaud) ISO9141-2(5 baud init,10.4Kbaud) ISO14230-4 KWP(5 baud init,10.4 Kbaud) ISO14230-4 KWP(fast init,10.4 Kbaud) ISO15765-4 CAN(11bit ID,500 Kbaud) ISO15765-4 CAN(29bit ID,500 Kbaud) ISO15765-4 CAN(11bit ID,250 Kbaud) ELM327 USB Forscan Packing List: 1*ELM327 USB forscan 1*CD ELM327 USB Switch V1.5 Forscan for ford Different with ELM327 USB forscan : It is with PICI8F25K80 and PL2303 chip ELM327 Bluetooth Switch V1.5 Forscan for ford Different with ELM327 USB forscan : 1. The connect way is different , ELM327 Bluetooth works with bluetooth , ELM327 USB works with USB . 2. It is with PICI8F25K80 ELM327 Bluetooth Switch V1.5 Packing List : 1*ELM327 USB Swith 1*CD ELM327 USB Interface Description: 1.With USB Connection. 2.Plastic ELM327 USB V1.5 Scanner is the latest PC-based scan tool. 3.ELM327 USB Scanner is Version V1.5 simply extract the files into a folder on your computer's hard drive, and you're ready to go. To uninstall the program, simply delete the entire contents of the folder where the program resides. 1. Plug OBDⅡ connector into car OBDⅡ port 2. Plug wired USB connector into computer USB port. If operation system is Windows7 or Win8, driver will be downloaded and installed automatically. If automatic download or installation failed, please follow below steps and install the driver manually: a) Right click Computer icon on your desk and select"Management"to open the computer management dialog box b) Select "Device Manager". Belo other devices, you can see a device with yellow exclamation mark which is the device without driver  c) Login at www.elm327. com Click"Support"- "PL2303 USB OBDII Driver" to download and finish installation. After that, the yellow exclamation mark below device manager would disappear. d) Login at www.elm327.com Click"Support"- "ScanMaster-ELM for Windows" to download and finish installation. Then finish registration. e) Below"Device Manager",check the port number of USB OBDII(with driver installed) ." 3. Run ScanMaster-ELM below Options- Communication, choose Serial (RS232 or Virtual COM Port Driver) for icon , set serial port number manually with the number which is the same in last step. 4. Click "Connect " to start the connection with car ECU 5. Trouble Codes USB ELM 327 V1.5 USB Scanner Functions: 1. Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database). 2. Clear trouble codes and turn off the MIL ("Check Engine" light) 3. Display current sensor data, including: 4. Engine RPM 5. Calculated Load Value 6. Coolant Temperature 7. Fuel System Status 8. Vehicle Speed 9. Short Term Fuel Trim 10. Long Term Fuel Trim 11. Intake Manifold Pressure 12. Timing Advance 13. Intake Air Temperature 14. Air Flow Rate 15. Absolute Throttle Position 16. Oxygen sensor voltages/associated short term fuel trims 17. Fuel System status 18. Fuel Pressure AND Many others... ELM327 USB ELM 327 V1.5 USB Scanner Support OBD2 Protocols: SAE J1850 PWM (41.6 kbaud) SAE J1850 VPW (10.4 kbaud) ISO 9141-2 (5 baud init, 10.4 kbaud) ISO 14230-4 KWP (5 baud init, 10.4 kbaud) ISO 14230-4 KWP (fast init, 10.4 kbaud) ISO 15765-4 CAN (11 bit ID, 500 kbaud) ISO 15765-4 CAN (29 bit ID, 500 kbaud) ISO 15765-4 CAN (11 bit ID, 250 kbaud) ISO 15765-4 CAN (29 bit ID, 250 kbaud) Output protocol: RS232 Baud rate: 9600 or 38400 Indicator LEDs: OBD Tx/Rx, RS232 Tx/Rx, Power Operating voltage: 12V, internal protection from short circuits/overvoltages Nominal idle current: 45 mA Package Content: 1 x ELM327 USB interface 1 x CD software 1 x Manual
