IS Battery Demountable:Yes
Record Length:8K
Model Number:HDS2102 / HDS2102S / HDS272 / HDS272S / HDS242 / HDS242S
Real Time Sampling Rate:250-500MSa/s
Display resolution:320*240 Pixels
Display Size:3.0 - 4.9 Inches
Band Width:40-100MHz
Digital Channels:2
DIY Supplies:ELECTRICAL
Origin:Mainland China
Certification:CE

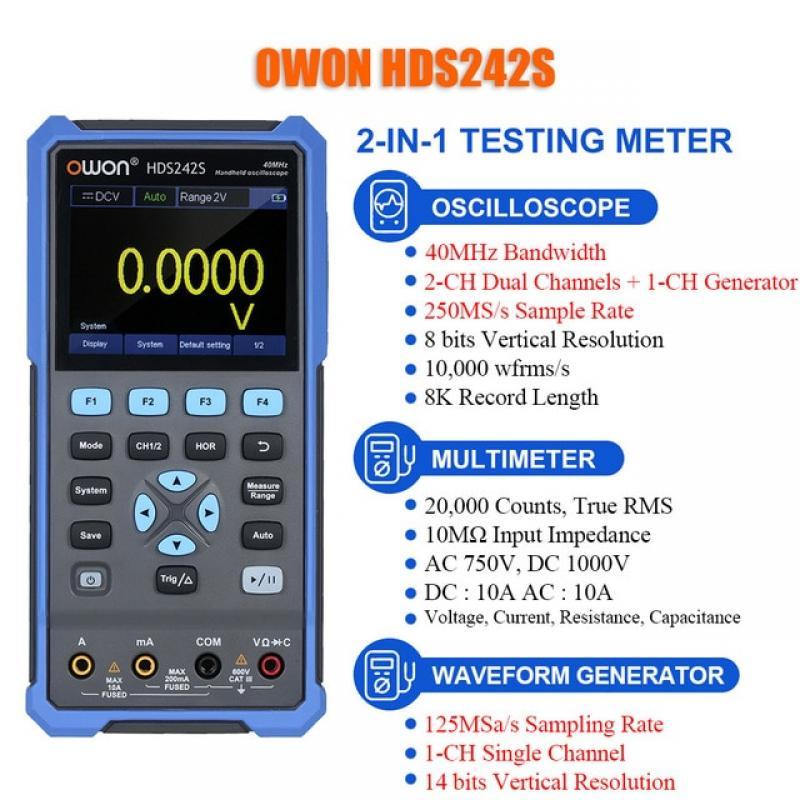

OWON HDS200 Series Digital Oscilloscope
+ Oscilloscope + multimeter , multifunction in one
+ 3.5-inch high-resolution, high-contrast color LCD display, suitable for outdoor use
+ 18650 lithium battery, comprehensive power consumption ≤3W, can work continuously for about 6 hours
+ USB Type-C interface, support power bank, support PC software connection
+ Self-calibration function
+ SCPI supported, facilitate secondary development
Features:
✔The 2-in-1 versatile unit combines the function of oscilloscope and multimeter in one.
✔3.5 inches color LCD display, bright and clear to read for waveform details even out of doors.
2CH dual channels input, bandwidth up to 70 MHz, real-time sampling rate is 250MSa/s.
✔Maximum 8K record length, and 10000 wfms/s refresh rate, easy to capture exceptional and low probability events.
✔Easy to use, provided with 7 kinds of auto measurement - frequency, period, amplitude, max, min, mean, and PK-PK, perfect for professionals and novices.
✔More functions of the oscilloscope - cursor measurement, XY mode, and data save.
✔20,000 counts true-RMS multimeter able to measure AC/DC voltage, AC/DC current, resistance, diode, capacitance, and continuity.
✔Support maximum AC 750V, DC 1000V input voltage. Auto-ranging function, easy to detect and debug.
✔More functions of the multimeter - data hold, and relative measurement.
✔Powered by 4400mAh lithium battery, it can work continuously for about 6 hours on a single fully charge.
✔USB type-C interface can be charged by an adapter or a power bank, and supports PC software connection.
✔Compact and portable for travel, with solid kickstand on the back for easy reading on workbench.
✔Applied for the maintenance of sound systems, electronics, automobile, transceiver, etc.
